ADRF5141 Series

Silicon, Transmit and Receive Switch with Limiter, 6 GHz to 12 GHz

Catalog

Silicon, Transmit and Receive Switch with Limiter, 6 GHz to 12 GHz

Part	Isolation	IIP3	Frequency Range [Min]	Frequency Range [Max]	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Impedance	Insertion Loss	RF Type	Circuit	Voltage - Supply [Max]	Voltage - Supply [Min]	Topology	Mounting Type	Test Frequency	Features	Package / Case	P1dB	Supplied Contents	For Use With/Related Products	Frequency [Max]	Frequency [Min]	Type
Analog Devices ADRF5141BCCZN-R7	26 dB	58 dBm	6 GHz	12 GHz	20-LGA (3x3)	-40 °C	105 ░C	50 Ohms	1.7 dB	General Purpose	SPDT	3.45 V	3.15 V	Reflective	Surface Mount	12 GHz	DC Blocked	20-VFLGA Exposed Pad	43 dBm

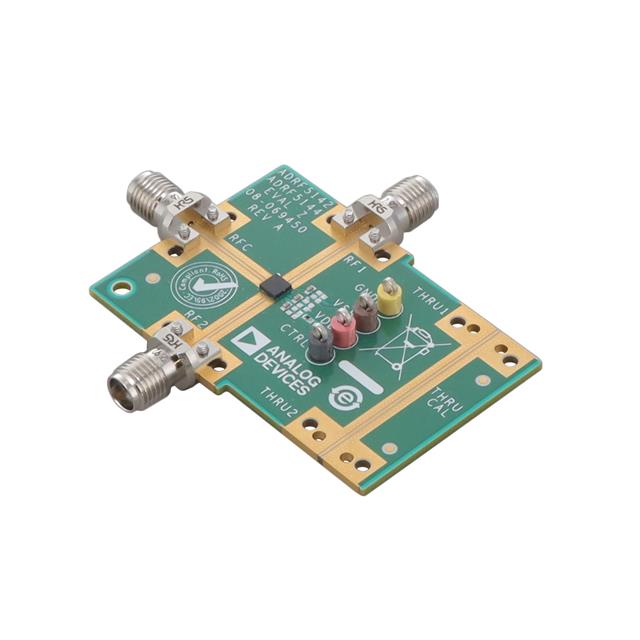

Analog Devices ADRF5141-EVALZ																				Board(s)	ADRF5141	12 GHz	6 GHz	Switch SPDT

Catalog

Silicon, Transmit and Receive Switch with Limiter, 6 GHz to 12 GHz

Key Features

• High-power transmit and receive switch with an integrated power limiter on receive path

• Frequency range: 6 GHz to 12 GHz

• Reflective 50 Ω design

• Low insertion lossTX to ANT: 0.9 dB at 8 GHz to 11 GHzANT to RX: 1.4 dB at 8 GHz to 11 GHz

• TX to ANT: 0.9 dB at 8 GHz to 11 GHz

• ANT to RX: 1.4 dB at 8 GHz to 11 GHz

• High isolation: 55 dB typical for TX to RX when TX selected

• High-power handling (TCASE= 50°C)

• Input at TX: pulsed 40 dBm, >100 ns pulse width at 15% duty cycle

• Input at ANT: pulsed 40 dBm, >100 ns pulse width at 15% duty cycle

• RX flat leakage: 17 dBm

• High linearityInput P0.1dB at TX arm: 41 dBm

• Input P0.1dB at TX arm: 41 dBm

• Fast switching time: 50 ns

• Fast response and recovery time: <10 ns

• Dual-supply, with no low-frequency spurious

• Positive control interface: CMOS-/LVTTL-compatible

• 20-lead, 3 mm × 3 mm LGA package

• Pin compatible with the ADRF5144

Description

The ADRF5141 is a reflective, SPDT switch manufactured in the silicon process. The ADRF5141 is used in transmit and receive applications with an integrated power limiter on the receive path.The ADRF5141 operates from 6 GHz to 12 GHz. The RX arm with the integrated power limiter has a flat leakage of 17 dBm with a low insertion loss of 1.4 dB at 8 GHz to 11 GHz. The TX arm has an insertion loss of 0.9 dB at 8 GHz to 11 GHz.The ADRF5141 draws a low current of 13 μA on the positive supply of +3.3 V and 360 μA on the negative supply of −3.3 V. The device employs complementary metal-oxide semiconductor (CMOS)-/low voltage transistor to transistor logic (LVTTL)-compatible controls. The ADRF5141 requires no additional driver circuitry, making it an ideal alternative to gallium nitride (GaN) and PIN diode-based switches.The ADRF5141 comes in a 20-lead, 3.0 mm × 3.0 mm, RoHS-compliant, land grid array (LGA) package and can operate from −40°C to +105°C.APPLICATIONSX-band communications and radarsElectronic warfareSatellite communicationsGaN and PIN diode replacement
