TM11R Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
MODULAR CONNECTORS / ETHERNET CONNECTORS 8P F MODULAR PLG EMI STRAIGHT BLACK T/H
| Part | Contact Finish Thickness | Contact Finish Thickness | Housing Material | Tab Direction | Orientation | Contact Material | Number of Ports | Connector Type | Shielding | Number of Rows | Number of Positions/Contacts | Contact Finish | LED Color | Termination | Mounting Type | Features | Operating Temperature [Min] | Operating Temperature [Max] | Orientation | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

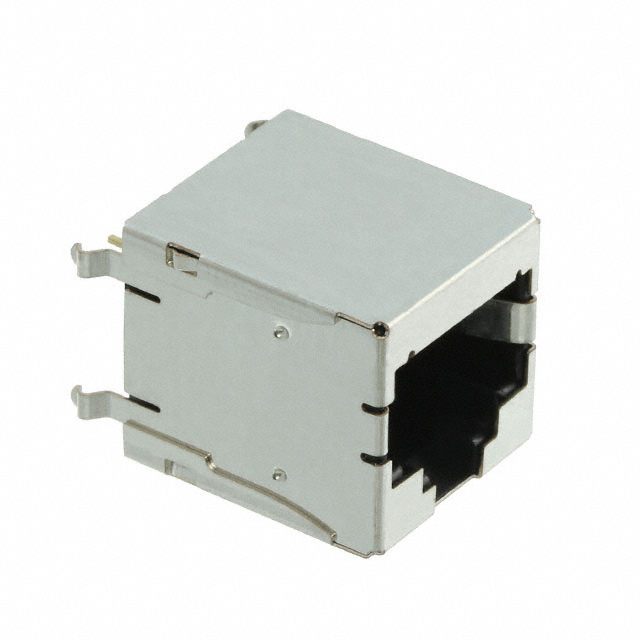

 Hirose Electric Co Ltd | 50 µin | 1.27 µm | Polybutylene Terephthalate (PBT) | User Selectable | Vertical | Phosphor Bronze | 1 | Jack | Shielded | 1 | 8p8c (RJ45 Ethernet) | Gold | Does Not Contain LED | Solder | Through Hole | Board Lock | ||||

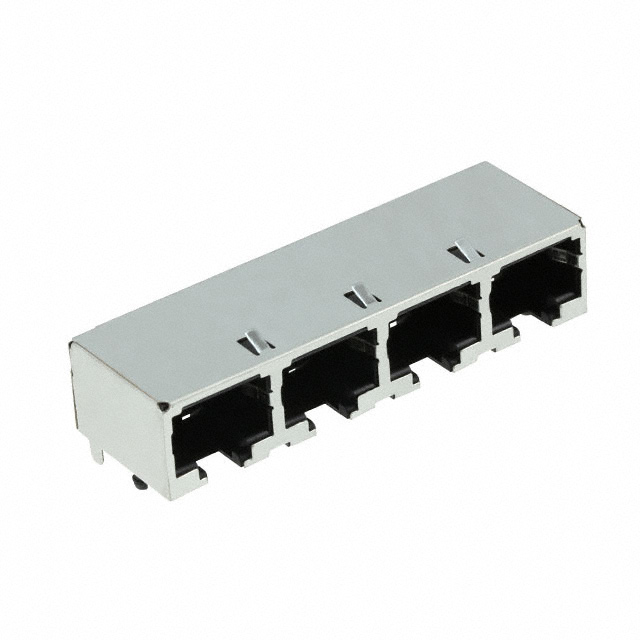

 Hirose Electric Co Ltd | 50 µin | 1.27 µm | Polybutylene Terephthalate (PBT) | Down | Phosphor Bronze | 4 | Jack | Shielded | 1 | 8p8c (RJ45 Ethernet) | Gold | Does Not Contain LED | Solder | Through Hole | Board Lock | -25 °C | 80 °C | 90 ° | ||
 Hirose Electric Co Ltd | 50 µin | 1.27 µm | Up | 1 | Jack | Shielded | 1 | 8p8c (RJ45 Ethernet) | Gold | Solder | Through Hole | -25 °C | 80 °C | 90 ° | Cat3 |
