TN6050 Series

Catalog

SCR DIODE 1200V 60A(RMS) 660A AUTOMOTIVE AEC-Q101 3-PIN(3+TAB) TO-247 TUBE

Part	Current - On State (It (RMS)) (Max) [Max]	SCR Type	Voltage - Off State	Voltage - Gate Trigger (Vgt) (Max)	Mounting Type	Current - Hold (Ih) (Max) [Max]	Current - On State (It (AV)) (Max) [Max]	Current - Off State (Max) [Max] [custom]	Supplier Device Package	Current - Gate Trigger (Igt) (Max) [Max]	Package / Case	Qualification	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - On State (Vtm) (Max) [Max]	Grade	Current - Non Rep. Surge 50, 60Hz (Itsm)	Operating Temperature

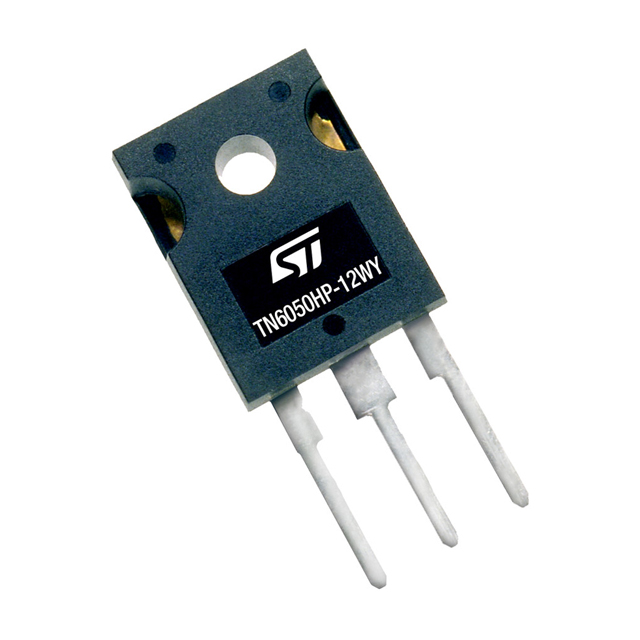

STMicroelectronics TN6050HP-12WY	60 A	Standard Recovery	1.2 kV	1.3 V	Through Hole	100 mA	38 A	5 µA	TO-247-3	50 mA	TO-247-3	AEC-Q101	-40 °C	150 °C	1.5 V	Automotive	600 A 660 A

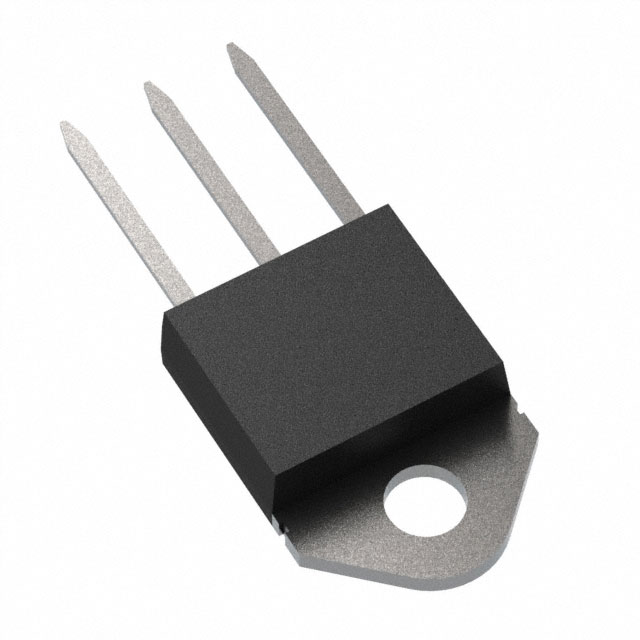

STMicroelectronics TN6050-12WL	60 A	Standard Recovery	1.2 kV							50 mA								125 ¯C
