TSR 0.6 Series

Catalog

DC DC CONVERTER 3.3V 3SIP

Part	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Efficiency	Voltage - Output 1	Package / Case	Number of Outputs	Mounting Type	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Type

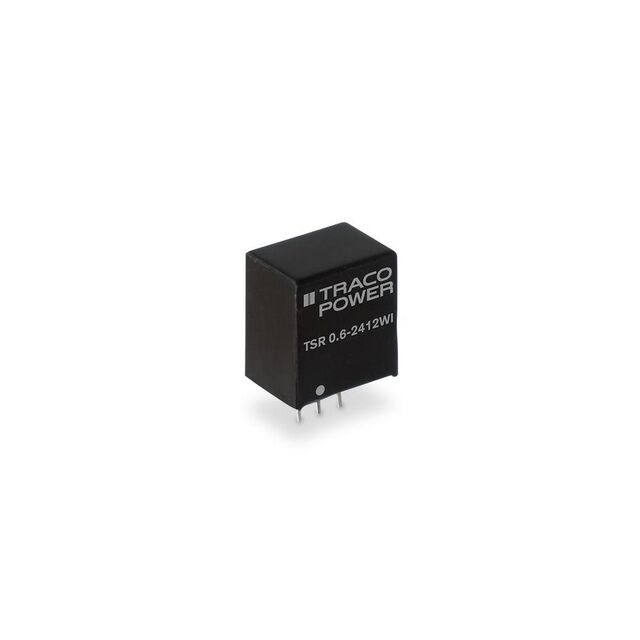

Traco Power TSR 0.6-4833WI	9 V	600 mA	72 V	13.4 mm	12 mm	0.53 in	0.47 in	0.34 in	8.6 mm	85 %	3.3 V	3-SIP Module	1	Through Hole	ITE (Commercial)	-40 °C	85 °C	Non-Isolated PoL Module
Traco Power TSR 0.6-48240WI	33 V	400 mA	72 V	13.4 mm	12 mm	0.53 in	0.47 in	0.34 in	8.6 mm	94 %	24 V	3-SIP Module	1	Through Hole	ITE (Commercial)	-40 °C	85 °C	Non-Isolated PoL Module
Traco Power TSR 0.6-48120WI	17 V	600 mA	72 V	13.4 mm	12 mm	0.53 in	0.47 in	0.34 in	8.6 mm	93 %	12 V	3-SIP Module	1	Through Hole	ITE (Commercial)	-40 °C	85 °C	Non-Isolated PoL Module
Traco Power TSR 0.6-4850WI	9 V	600 mA	72 V	13.4 mm	12 mm	0.53 in	0.47 in	0.34 in	8.6 mm	89 %	5 V	3-SIP Module	1	Through Hole	ITE (Commercial)	-40 °C	85 °C	Non-Isolated PoL Module
Traco Power TSR 0.6-4890WI	14 V	600 mA	72 V	13.4 mm	12 mm	0.53 in	0.47 in	0.34 in	8.6 mm	92 %	9 V	3-SIP Module	1	Through Hole	ITE (Commercial)	-40 °C	85 °C	Non-Isolated PoL Module
Traco Power TSR 0.6-4865WI	9 V	600 mA	72 V	13.4 mm	12 mm	0.53 in	0.47 in	0.34 in	8.6 mm	91 %	6.5 V	3-SIP Module	1	Through Hole	ITE (Commercial)	-40 °C	85 °C	Non-Isolated PoL Module
Traco Power TSR 0.6-48150WI	20 V	600 mA	72 V	13.4 mm	12 mm	0.53 in	0.47 in	0.34 in	8.6 mm	94 %	15 V	3-SIP Module	1	Through Hole	ITE (Commercial)	-40 °C	85 °C	Non-Isolated PoL Module
