GT13 Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
AUTOMOTIVE CONNECTORS M HOUS CONN 1 COAX CONT
| Part | Body Material | Features | Accessory Type | Connector Style | Color | For Use With/Related Products | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Mating Cycles | Center Contact Plating | Voltage Rating | Housing Color | Connector Type | Fastening Type | Frequency - Max [Max] | Center Contact Material | Mounting Type | Impedance | Contact Termination | Number of Ports | Contact Material | Contact Finish | Wire Gauge | Contact Finish Thickness | Contact Finish Thickness | Pin or Socket | Type | For Use With/Related Products | Wire Gauge [Max] | Wire Gauge [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | Polybutylene Terephthalate (PBT) | Keyed | Housing | M | Brown | M Terminals | |||||||||||||||||||||||||
Hirose Electric Co Ltd | Polybutylene Terephthalate (PBT) | Board Lock | Coaxial | -30 ░C | 105 ░C | Polybutylene Terephthalate (PBT) | 30 | Tin | 250 V | Gray | Receptacle Male Pin | Push-Pull | 1 GHz | Copper Alloy | Right Angle Through Hole | 50 Ohms | Solder | 1 | |||||||||||||

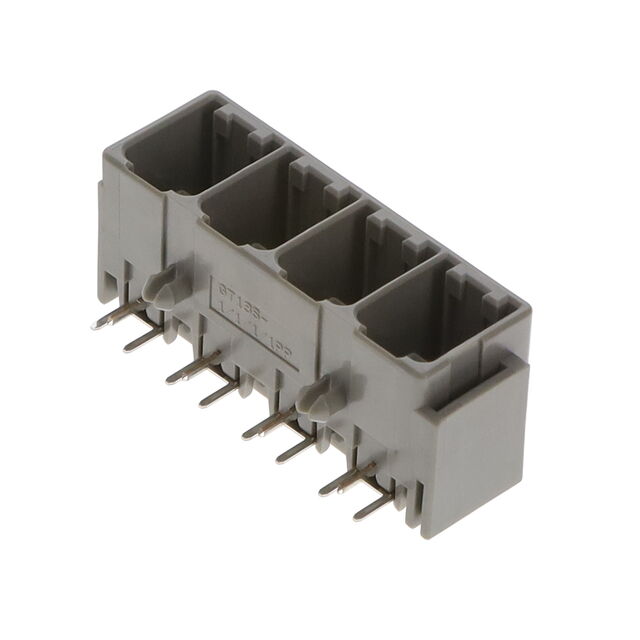

Hirose Electric Co Ltd | Polybutylene Terephthalate (PBT) | Board Lock Mounting Flange | Coaxial | -30 ░C | 105 ░C | Polybutylene Terephthalate (PBT) | 30 | Tin | 250 V | Gray | Receptacle Male Pin | Push-Pull | 1 GHz | Copper Alloy | Right Angle Through Hole | 50 Ohms | Solder | 4 | |||||||||||||
 Hirose Electric Co Ltd | Free Hanging (In-Line) | Crimp | Brass | Tin | 30 AWG | 1 Ám | 39.4 Áin | Pin | M | ||||||||||||||||||||||
 Hirose Electric Co Ltd | Polybutylene Terephthalate (PBT) | Retainer | Gray | GT13 Housings | 3 Positions | ||||||||||||||||||||||||||
Hirose Electric Co Ltd | Pin | M | 22 AWG | 19.5 AWG | |||||||||||||||||||||||||||
 Hirose Electric Co Ltd | Coaxial | -30 ░C | 105 ░C | Polybutylene Terephthalate (PBT) | 30 | Tin | 250 V | Receptacle Male Pin | Push-Pull | 1 GHz | Right Angle Through Hole | 50 Ohms | Solder | 1 | |||||||||||||||||
 Hirose Electric Co Ltd | Polybutylene Terephthalate (PBT) | 5 Positions | Housing | F | Gray | F Terminals | |||||||||||||||||||||||||
 Hirose Electric Co Ltd | Housing | F | F Terminals | ||||||||||||||||||||||||||||
 Hirose Electric Co Ltd | Polybutylene Terephthalate (PBT) | 3 Positions | Housing | F | Gray | F Terminals |
