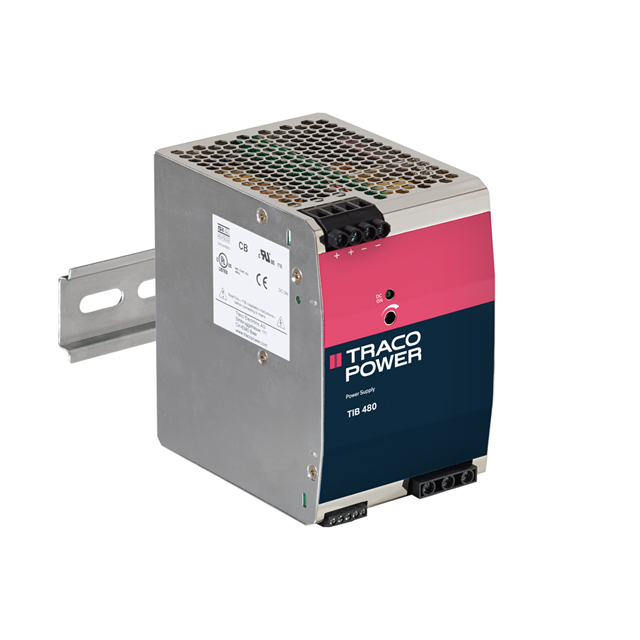

TIB 480 Series
Manufacturer: Traco Power
Beta
⌘K
DIN RAIL POWER SUPPLIES 480W 24V 20A DIN RAIL
| Part | Power (Watts) | Number of Outputs | Current - Output (Max) [Max] | AC Voltage - Input [Max] | AC Voltage - Input [Min] | Voltage - Output 1 | Applications | Features | Input Type | Efficiency | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Voltage - Isolation | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Traco Power | 480 W | 1 | 20 A | 264 VAC | 85 VAC | 24 V | Industrial ITE (Commercial) | Adjustable Output PFC Universal Input | AC | 94.7 % | 124.2 mm | 4.5 in | 4.89 in | 82 mm | 3.23 in | 114.2 mm | 4.25 kV | CB CE cULus cURus SIQ |
Traco Power | 480 W | 1 | 10 A | 264 VAC | 85 VAC | 48 V | Industrial ITE (Commercial) | Adjustable Output PFC Remote On/Off Universal Input | AC | 95 % | 124.2 mm | 4.5 in | 4.89 in | 82 mm | 3.23 in | 114.2 mm | 4.25 kV | CB CE cULus cURus SIQ |
