DF18C Series

Catalog

CONN RCPT 100POS SMD GOLD

Part	Mounting Type	Number of Rows [custom]	Connector Type	Contact Finish	Mated Stacking Heights	Number of Positions	Height Above Board [z]	Height Above Board [z]	Pitch	Pitch
Hirose Electric Co Ltd DF18C-100DS-0.4V(81)	Surface Mount	2	Receptacle Center Strip Contacts	Gold	1.5 mm	100	1.45 mm	0.057 in	0.4 mm	0.016 in
Hirose Electric Co Ltd DF18C-60DP-0.4V(81)	Surface Mount	2	Plug Outer Shroud Contacts	Gold	1.5 mm	60	1.16 mm	0.046 "	0.4 mm	0.016 in

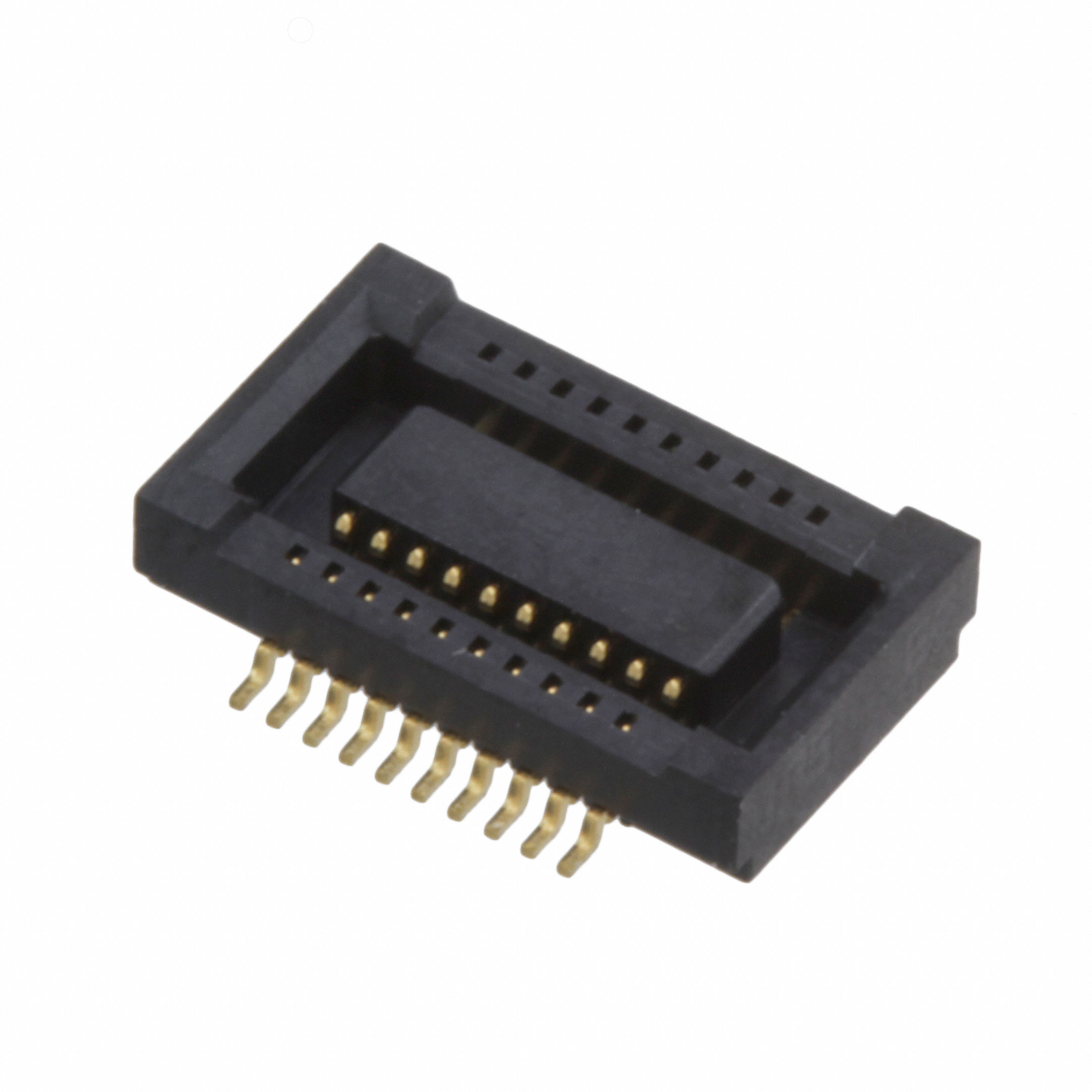

Hirose Electric Co Ltd DF18C-20DS-0.4V(81)	Surface Mount	2	Receptacle Center Strip Contacts	Gold	1.5 mm	20	1.45 mm	0.057 in	0.4 mm	0.016 in

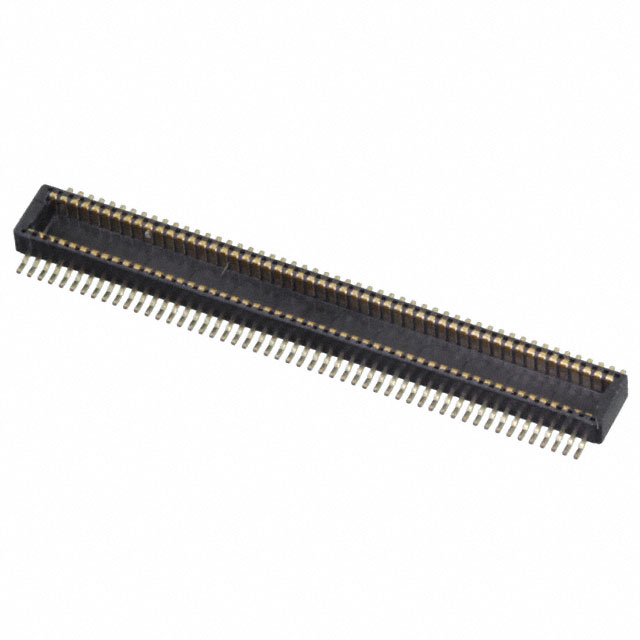

Hirose Electric Co Ltd DF18C-100DP-0.4V(51)	Surface Mount	2	Plug Outer Shroud Contacts	Gold	1.5 mm	100	1.16 mm	0.046 "	0.4 mm	0.016 in
Hirose Electric Co Ltd DF18C-100DP-0.4V(74)
Hirose Electric Co Ltd DF18C-50DS-0.4V(81)	Surface Mount	2	Receptacle Center Strip Contacts	Gold	1.5 mm	50	1.45 mm	0.057 in	0.4 mm	0.016 in
