395-052 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 52POS 0.100

...

Part	Material - Insulation	Termination Rows [custom]	Card Thickness [Max]	Card Thickness [Min]	Color	Contact Finish	Read Out	Contact Material	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Number of Positions/Bay/Row	Number of Rows [custom]	Pitch	Pitch	Termination	Card Type	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Gender	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Termination Rows	Number of Rows	Features

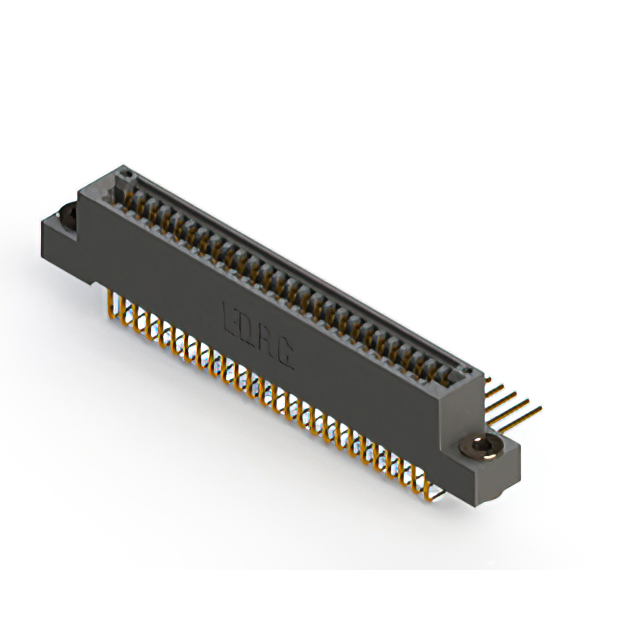

EDAC Inc. 395-052-558-203	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	Gold	Dual	Copper Alloy	0.116 "	Floating Bobbin Flush Mount	2.95 mm	26	2	0.1 "	2.54 mm	Solder	Non Specified - Dual Edge	Cantilever	-40 C	105 ░C	52	Female	Right Angle Through Hole	0.25 Ám	10 Áin
EDAC Inc. 395-052-559-108	Polyester Thermoplastic		0.07 in 1.78 mm	0.054 in 1.37 mm	Black	Gold	Single	Copper Alloy		4-40 Flush Mount Threaded Insert Top Opening		52		0.1 "	2.54 mm	Solder	Non Specified - Single Edge	Cantilever	-40 C	105 ░C	52	Female	Right Angle Through Hole	0.25 Ám	10 Áin	1	1

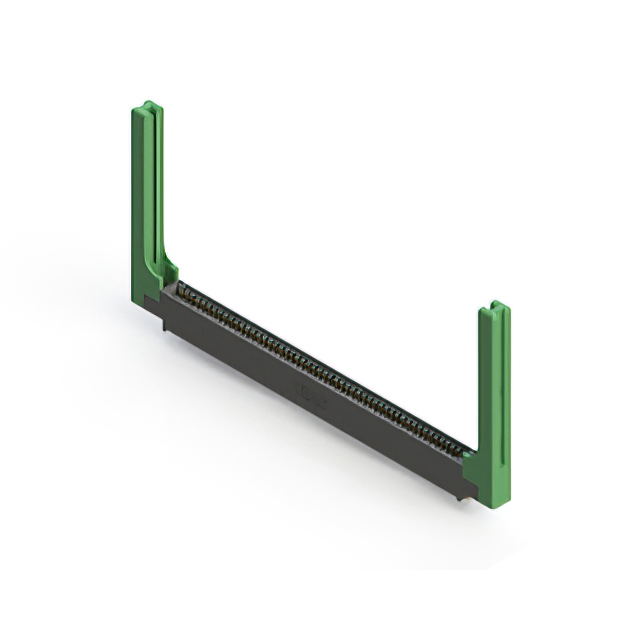

EDAC Inc. 395-052-523-658	Polyester Thermoplastic		0.07 in 1.78 mm	0.054 in 1.37 mm	Black	Gold	Single	Copper Alloy		4-40 Threaded Insert Top Mount Opening		52		0.1 "	2.54 mm	Solder	Non Specified - Single Edge	Cantilever	-40 C	105 ░C	52	Female	Through Hole	0.25 Ám	10 Áin	1	1	Card Guides

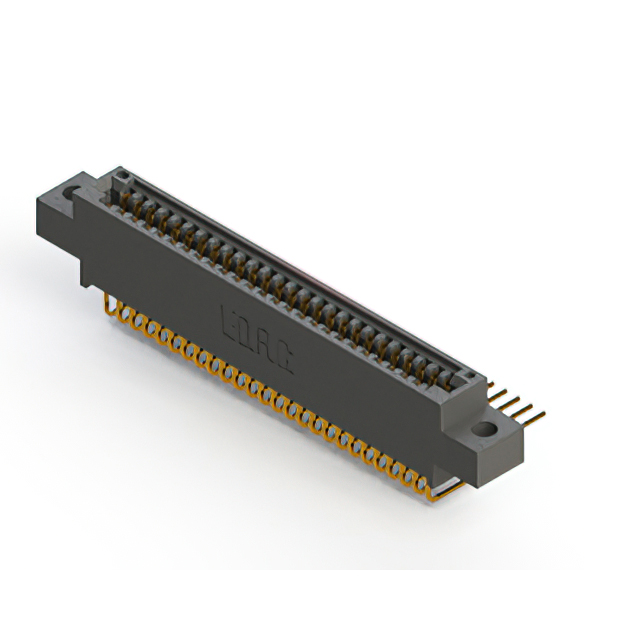

EDAC Inc. 395-052-559-804	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	Gold	Dual	Copper Alloy	0.156 "		3.96 mm	26	2	0.1 "	2.54 mm	Solder	Non Specified - Dual Edge	Cantilever	-40 C	105 ░C	52	Female	Right Angle Through Hole	0.25 Ám	10 Áin
EDAC Inc. 395-052-520-488	Polyester Thermoplastic		0.07 in 1.78 mm	0.054 in 1.37 mm	Black	Gold	Single	Copper Alloy		4-40 Threaded Insert Top Mount Opening		52		0.1 "	2.54 mm	Solder	Non Specified - Single Edge	Cantilever	-40 C	105 ░C	52	Female	Through Hole	0.25 Ám	10 Áin	1	1	Card Guides

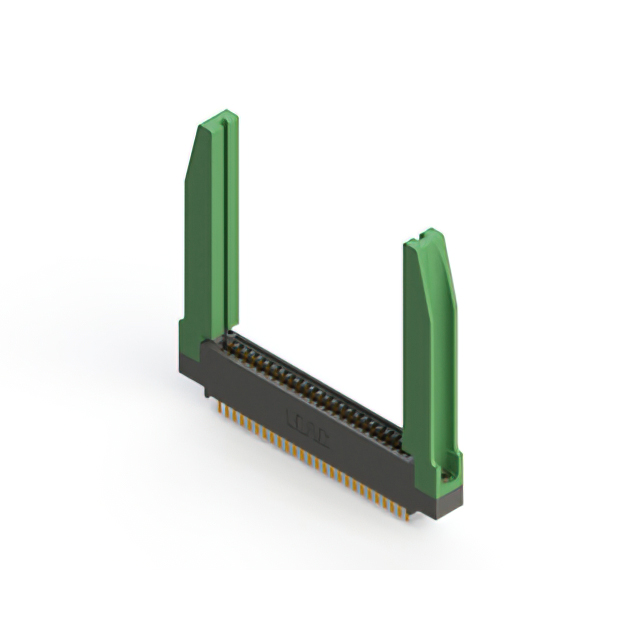

EDAC Inc. 395-052-520-578	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	Gold	Dual	Copper Alloy		4-40 Threaded Insert Top Mount Opening		26	2	0.1 "	2.54 mm	Solder	Non Specified - Dual Edge	Cantilever	-40 C	105 ░C	52	Female	Through Hole	0.25 Ám	10 Áin			Card Guides

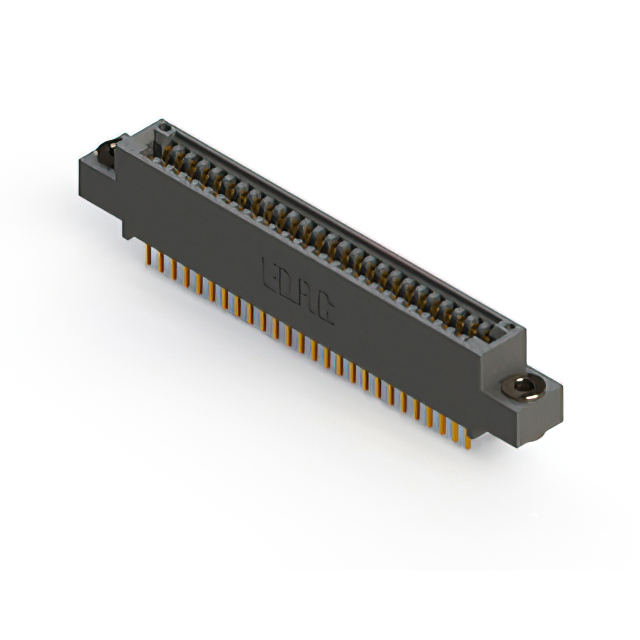

EDAC Inc. 395-052-540-503	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	Gold	Dual	Copper Alloy	0.116 "	Floating Bobbin Top Mount Opening	2.95 mm	26	2	0.1 "	2.54 mm	Wire Wrap	Non Specified - Dual Edge	Cantilever	-40 C	105 ░C	52	Female	Through Hole	0.25 Ám	10 Áin

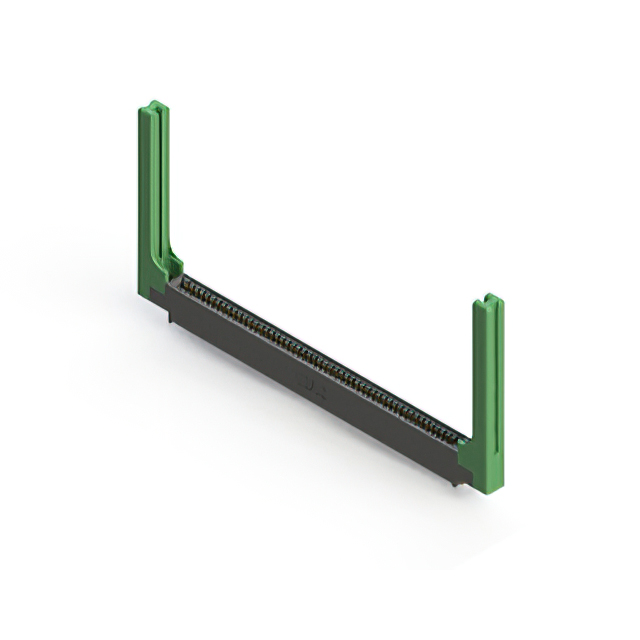

EDAC Inc. 395-052-542-658	Polyester Thermoplastic		0.07 in 1.78 mm	0.054 in 1.37 mm	Black	Gold	Single	Copper Alloy		4-40 Threaded Insert Top Mount Opening		52		0.1 "	2.54 mm	Wire Wrap	Non Specified - Single Edge	Cantilever	-40 C	105 ░C	52	Female	Through Hole	0.25 Ám	10 Áin	1	1	Card Guides

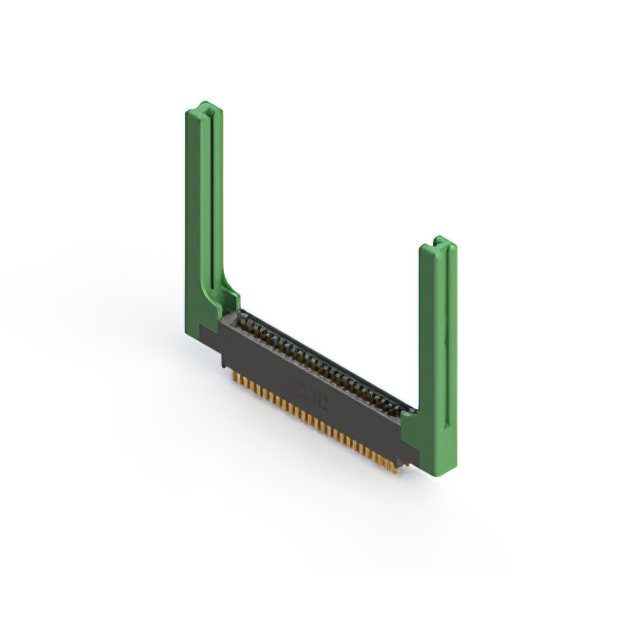

EDAC Inc. 395-052-544-858	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	Gold	Dual	Copper Alloy		4-40 Threaded Insert Top Mount Opening		26	2	0.1 "	2.54 mm	Wire Wrap	Non Specified - Dual Edge	Cantilever	-40 C	105 ░C	52	Female	Through Hole	0.25 Ám	10 Áin			Card Guides

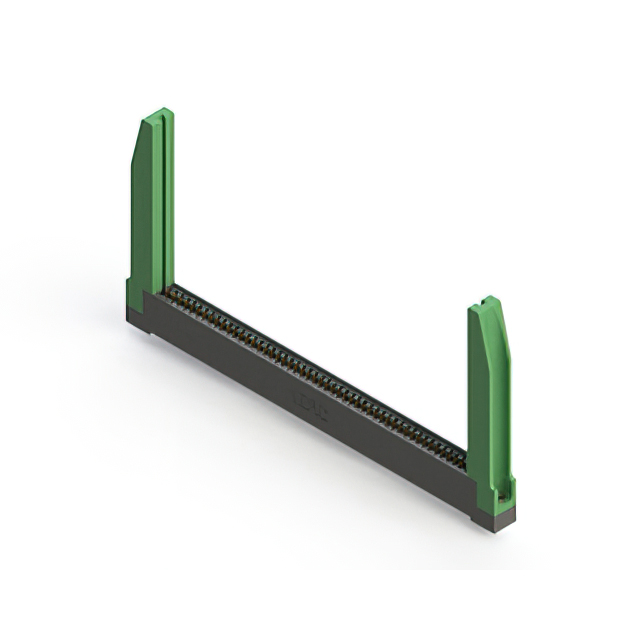

EDAC Inc. 395-052-524-178	Polyester Thermoplastic		0.07 in 1.78 mm	0.054 in 1.37 mm	Black	Gold	Single	Copper Alloy		4-40 Flush Mount Threaded Insert Top Opening		52		0.1 "	2.54 mm	Solder	Non Specified - Single Edge	Cantilever	-40 C	105 ░C	52	Female	Through Hole	0.25 Ám	10 Áin	1	1	Card Guides
