SE10G0UT Series
Manufacturer: NMB TECHNOLOGIES
Beta
⌘K

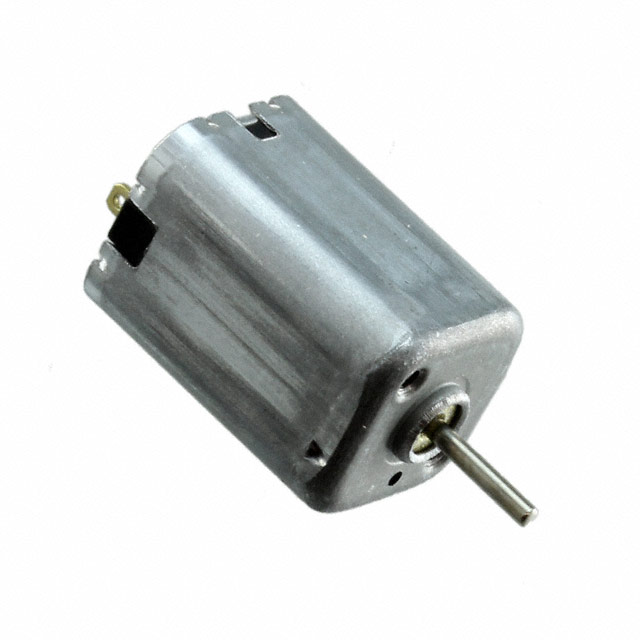

STANDARD MOTOR 11100 RPM 4V
| Part | Weight | Weight | Termination Style | Diameter - Shaft [diameter] | Diameter - Shaft [diameter] | Type | RPM | Motor Type | Function | Mounting Hole Spacing [custom] | Mounting Hole Spacing [custom] | Length - Shaft and Bearing [x] | Length - Shaft and Bearing [x] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Torque - Rated (oz-in / mNm) | Torque - Rated (oz-in / mNm) | Voltage - Rated |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NMB TECHNOLOGIES | 0.013 lb | 5.9 g | Connector | 0.039 in | 1 mm | DC Motor | 11100 RPM | Brushed | Standard | 8 mm | 0.315 in | 8.5 mm | 0.335 " | 10 mm | 0.394 " | 0.394 " | 10 mm | 0.07 oz-in | 0.49 mNm | 4 V |
