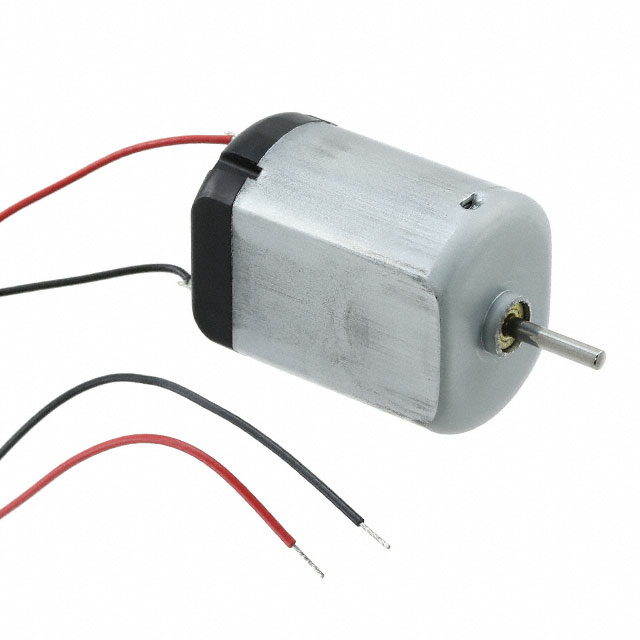

PAN14EE12 Series
Manufacturer: NMB TECHNOLOGIES
Beta
⌘K
STANDARD MTR DC BRUSH 300MM LEAD
| Part | Diameter - Shaft [diameter] | Diameter - Shaft [diameter] | Termination Style | Torque - Rated (oz-in / mNm) | Torque - Rated (oz-in / mNm) | RPM | Length - Shaft and Bearing | Length - Shaft and Bearing [x] | Size / Dimension [diameter] | Size / Dimension | Size / Dimension [diameter] | Motor Type | Voltage - Rated | Type | Operating Temperature [Max] | Operating Temperature [Min] | Function |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NMB TECHNOLOGIES | 0.079 in | 2 mm | Wire Leads | 0.693 oz-in | 4.9 mNm | 12800 RPM | 11.5 mm | 0.453 in | 24.2 mm | Round | 0.953 " | Brushed | 12 VDC | DC Motor | 80 °C | -30 ░C | Standard |
