PMPB23 Series
Manufacturer: Freescale Semiconductor - NXP
Beta
⌘K

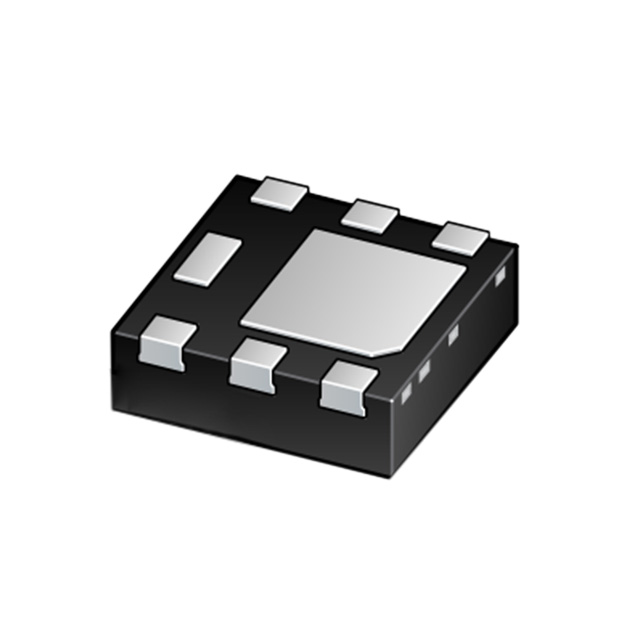

MOSFET N-CH 20V 7A 6DFN
| Part | Drive Voltage (Max Rds On, Min Rds On) | Drain to Source Voltage (Vdss) | Vgs(th) (Max) @ Id | FET Type | Input Capacitance (Ciss) (Max) @ Vds | Power Dissipation (Max) | Package / Case | Mounting Type | Current - Continuous Drain (Id) @ 25°C | Technology | Supplier Device Package | Operating Temperature [Min] | Operating Temperature [Max] | Vgs (Max) | Gate Charge (Qg) (Max) @ Vgs | Rds On (Max) @ Id, Vgs [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Freescale Semiconductor - NXP | 1.8 V 4.5 V | 20 V | 900 mV | N-Channel | 1136 pF | 1.7 W | 6-UDFN Exposed Pad | Surface Mount | 7 A | MOSFET (Metal Oxide) | DFN2020MD-6 | -55 °C | 150 °C | 12 V | 17 nC | 22 mOhm |
 Freescale Semiconductor - NXP | 1.8 V 4.5 V | 20 V | 900 mV | N-Channel | 1136 pF | 1.7 W 12.5 W | 6-UDFN Exposed Pad | Surface Mount | 7 A | MOSFET (Metal Oxide) | DFN2020MD-6 | -55 °C | 150 °C | 12 V | 17 nC | 22 mOhm |
