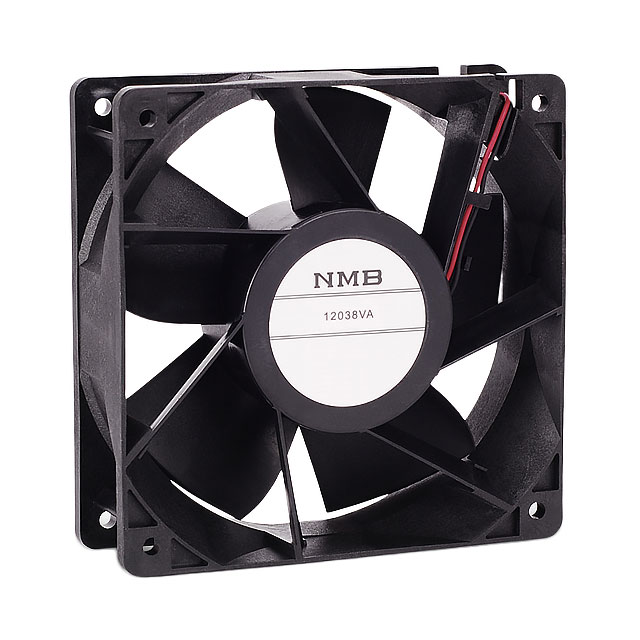

12038VA Series

Catalog

FAN AXIAL 120X38MM 48VDC WIRE

Part	Lifetime @ Temp.	Material - Frame	Material - Blade	Weight	Weight	Voltage - Rated	Fan Type	Termination	Width [y]	Operating Temperature [Max]	Operating Temperature [Min]	Features	Approval Agency	Bearing Type	Size / Dimension [z]	Size / Dimension [x]	Voltage Range [Max]	Voltage Range [Min]	Current Rating (Amps)	Air Flow	Air Flow	RPM	Static Pressure	Static Pressure	Noise	Power (Watts)	Ingress Protection
NMB TECHNOLOGIES 12038VA-48L-ET-00	100000 Hrs	Plastic	Plastic	370.13 g	0.816 lb	48 VDC	Tubeaxial	3 Wire Leads	38 mm	70 °C	-10 °C	Speed Sensor (Tach)	CE CSA UL VDE	Ball	120 mm	120 mm

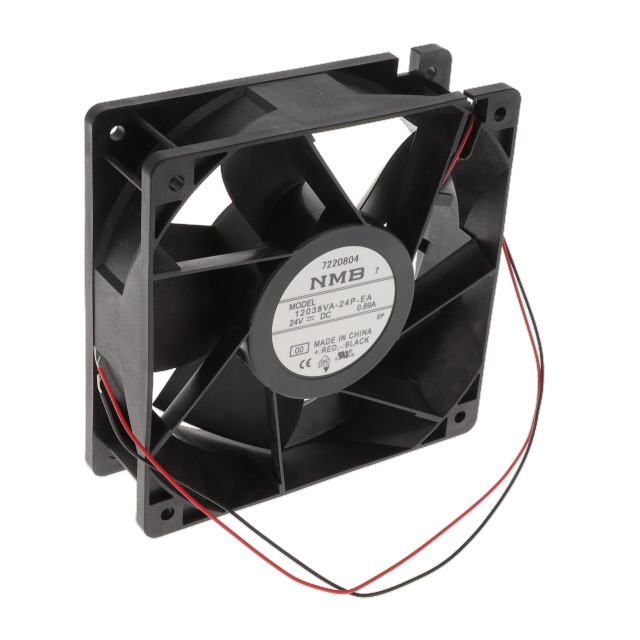

NMB TECHNOLOGIES 12038VA-24P-EA-00	40000 Hrs	Plastic	Plastic			24 VDC	Tubeaxial	2 Wire Leads	38 mm	60 °C	-10 °C	Auto Restart		Ball	120 mm	120 mm	27.6 VDC	18 VDC	0.74 A	189 CFM	5.29 mł/min	5000 RPM	0.94 in H2O	234.1 Pa	60 dB(A)	17.8 W
NMB TECHNOLOGIES 12038VA-12Q-EAE-0						12 VDC	Tubeaxial	2 Wire Leads	38 mm	70 °C	-10 °C	Auto Restart		Ball	120 mm	120 mm				215.7 CFM	6.04 m³/min	5700 RPM	1.15 in H2O	286.5 Pa	63 dB	27 W
NMB TECHNOLOGIES 12038VA-24Q-EL-00						24 VDC	Tubeaxial	3 Wire Leads	38 mm	70 °C	-10 °C	Auto Restart Locked Rotor Sensor		Ball	120 mm	120 mm				215.7 CFM	6.04 m³/min	5700 RPM	1.15 in H2O	286.5 Pa	63 dB	24.96 W	IP69K - Dust Tight High Temp Water Jets Waterproof
NMB TECHNOLOGIES 12038VA-24L-EL-00	100000 Hrs	Plastic	Plastic	370.13 g	0.816 lb	24 VDC	Tubeaxial	3 Wire Leads	38 mm	70 °C	-10 °C	Locked Rotor Sensor	CE CSA UL VDE	Ball	120 mm	120 mm

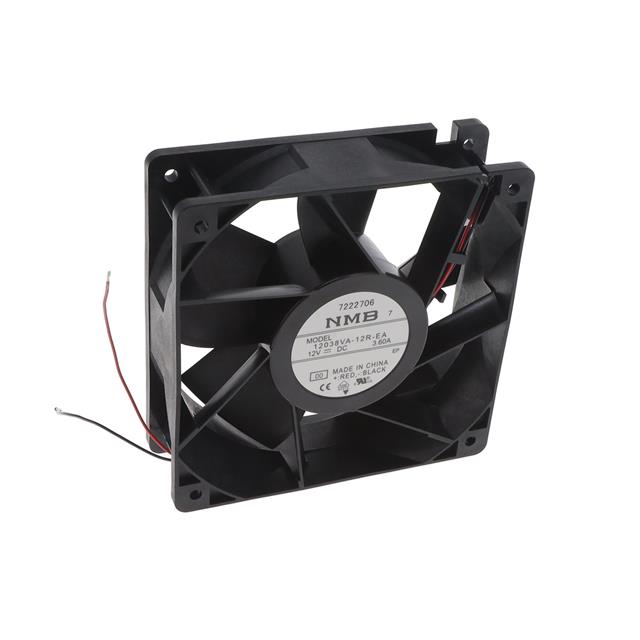

NMB TECHNOLOGIES 12038VA-12R-EA-00	100000 Hrs	Plastic	Plastic			12 VDC	Tubeaxial	2 Wire Leads	38 mm	60 °C	-10 °C	Auto Restart		Ball	120 mm	120 mm	13.8 VDC	10 VDC	3 A	243.2 CFM	6.81 mł/min	6400 RPM	1.46 in H2O	363.7 Pa	66 dB	36 W
NMB TECHNOLOGIES 12038VA-24N-EA-00	100000 Hrs	Plastic	Plastic	370.13 g	0.816 lb	24 VDC	Tubeaxial	2 Wire Leads	38 mm	70 °C	-10 °C		CE CSA UL VDE	Ball	120 mm	120 mm	27.6 VDC	18 VDC	760 mA	182.4 CFM	5.11 m³/min					18.24 W

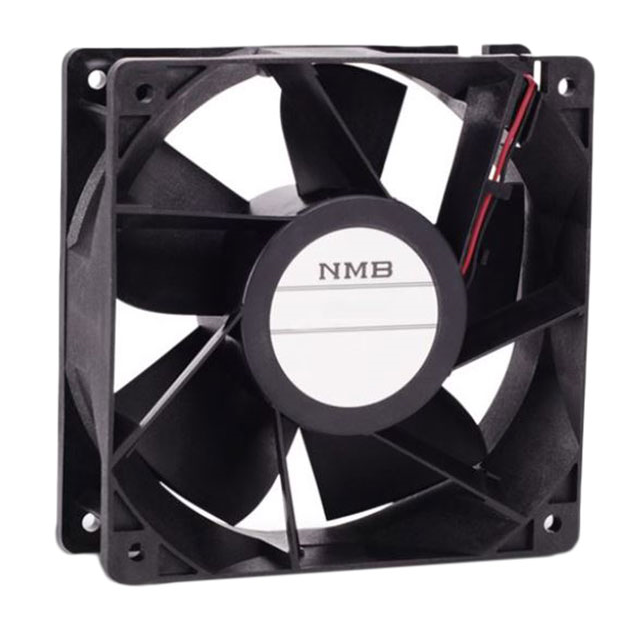

NMB TECHNOLOGIES 12038VA-24R-FU-06	40000 Hrs	Plastic	Plastic			24 VDC	Tubeaxial	4 Wire Leads	38 mm	60 °C	-10 °C	Auto Restart PWM Control Speed Sensor (Tach)	CE cULus VDE	Ball	120 mm	120 mm	27.6 VDC	18 VDC	1.48 A	243.7 CFM	6.82 mł/min	6400 RPM	1.5 in H2O	373.6 Pa	64 dB(A)	35.52 W
NMB TECHNOLOGIES 12038VA-24R-GA-00		Plastic	Plastic	370.13 g	0.816 lb	24 VDC	Tubeaxial	2 Wire Leads	38 mm	60 °C	-10 °C			Ball	120 mm	120 mm	27.6 VDC	18 VDC	1.48 A	243.7 CFM	6.82 mł/min	6400 RPM	1.48 in H2O	368.7 Pa	64 dB(A)	35.5 W	IP69K - Dust Tight High Temp Water Jets Waterproof
NMB TECHNOLOGIES 12038VA-24M-EA-00	100000 Hrs	Plastic	Plastic	370.13 g	0.816 lb	24 VDC	Tubeaxial	2 Wire Leads	38 mm	70 °C	-10 °C		CE CSA UL VDE	Ball	120 mm	120 mm
