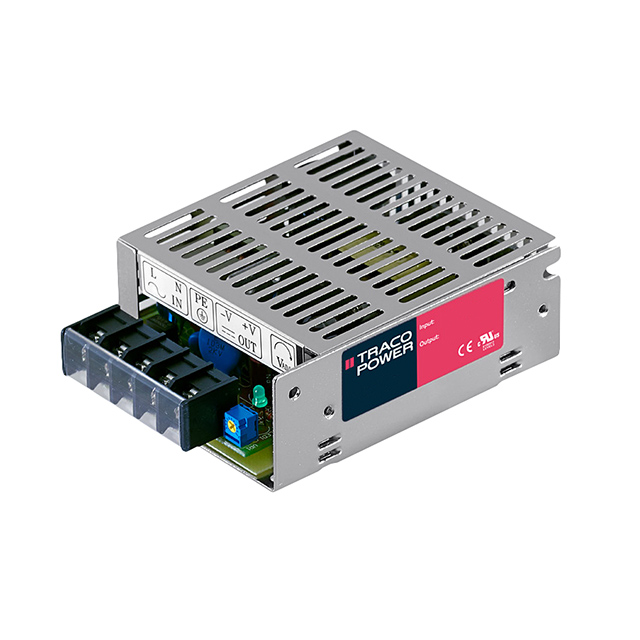

TXL 035 Series

Catalog

AC/DC POWER SUPPLY SINGLE-OUT 24V 1.5A 36W 6-PIN

Part	Power (Watts)	Type	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output 1	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Features	Voltage - Isolation	Approval Agency	Applications	Current - Output 1	Number of Outputs	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Mounting Type	Current - Output 2	Voltage - Output 2
Traco Power TXL 035-24S	36 W	Enclosed	85 VAC 120 VDC	264 VAC 375 VDC	24 V	84 %	70 °C	-20 °C	Adjustable Output Universal Input	3000 V	CE cURus	ITE (Commercial)	1.5 A	1	3.23 in	35.1 mm	3.9 "	99.1 mm	82 mm	1.38 in	Chassis Mount
Traco Power TXL 035-15S	36 W	Enclosed	85 VAC 120 VDC	264 VAC 375 VDC	15 V	84 %	70 °C	-20 °C	Adjustable Output Universal Input	3000 V	CE cURus	ITE (Commercial)	2.4 A	1	3.23 in	35.1 mm	3.9 "	99.1 mm	82 mm	1.38 in	Chassis Mount
Traco Power TXL 035-1515D	36 W	Enclosed	85 VAC 120 VDC	264 VAC 375 VDC	15 V	84 %	70 °C	-20 °C	Adjustable Output Universal Input	3000 V	CE cURus	ITE (Commercial)	2.4 A	2	3.23 in	35.1 mm	3.9 "	99.1 mm	82 mm	1.38 in	Chassis Mount	1.5 A	-15 V
Traco Power TXL 035-12S	36 W	Enclosed	85 VAC 120 VDC	264 VAC 375 VDC	12 V	84 %	70 °C	-20 °C	Adjustable Output Universal Input	3000 V	CE cURus	ITE (Commercial)	3 A	1	3.23 in	35.1 mm	3.9 "	99.1 mm	82 mm	1.38 in	Chassis Mount
