101150703 Series
Manufacturer: Integrated Power Designs
Beta
⌘K

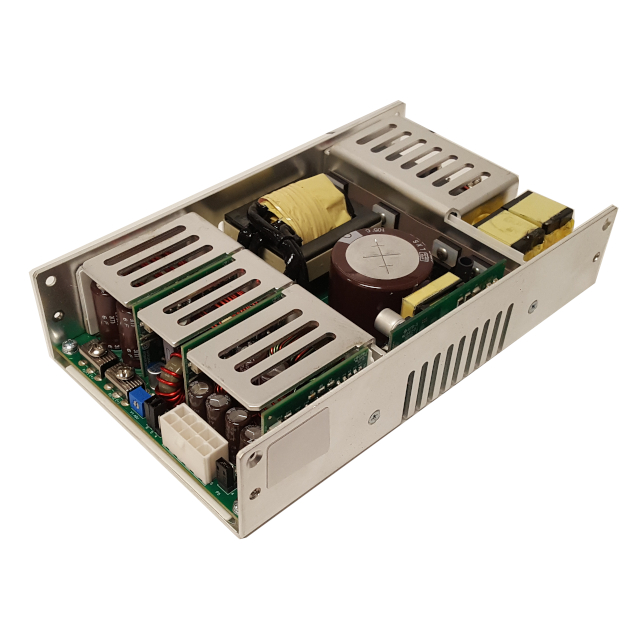

AC/DC CNVRTR +/-24V +/-15V 400W
| Part | Features | Number of Outputs | Type | Current - Output 4 | Current - Output 1 | Voltage - Output 2 | Mounting Type | Standard Number | Applications | Voltage - Output 1 | Operating Temperature [Max] | Operating Temperature [Min] | Efficiency | Current - Output 2 | Approval Agency | Current - Output 3 | Voltage - Output 4 | Power (Watts) | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Voltage - Input [Min] | Voltage - Input [Max] | Voltage - Output 3 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Integrated Power Designs | Adjustable Output Remote Sense Universal Input | 4 | Chassis | 5 A | 12.5 A | -24 V | Chassis Mount | 60601-1; 62368-1 | ITE (Commercial) Medical | 24 V | 70 °C | -20 °C | 87 % | 5 A | CE cURus TUV UKCA | 5 A | -15 V | 400 W | 38 mm | 106.2 mm | 180.3 mm | 4.18 in | 7.1 in | 1.5 in | 100 VAC | 240 VAC | 15 V |
