STO36 Series
Manufacturer: STMicroelectronics
Beta
⌘K

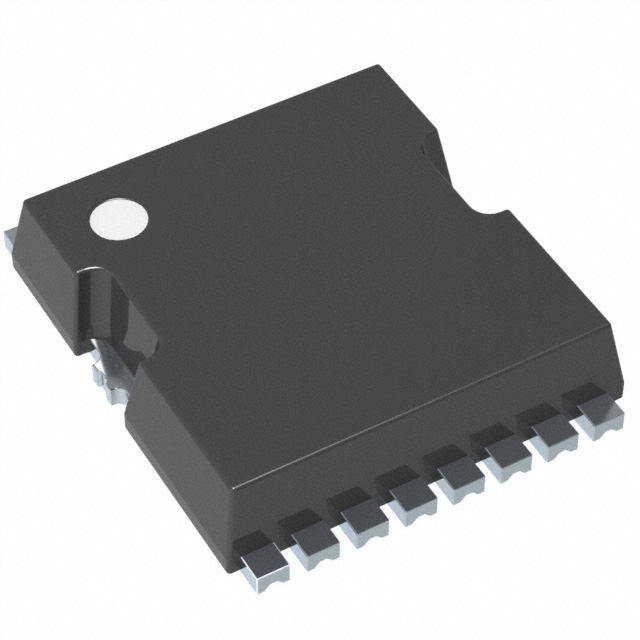

N-CHANNEL 600 V, 85 MOHM TYP., 30 A MDMESH M6 POWER MOSFET IN A TO-LL PACKAGE
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Technology | Supplier Device Package | Vgs(th) (Max) @ Id | Vgs (Max) | Mounting Type | Gate Charge (Qg) (Max) @ Vgs | FET Type | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Drain to Source Voltage (Vdss) | Rds On (Max) @ Id, Vgs | Input Capacitance (Ciss) (Max) @ Vds [Max] | Power Dissipation (Max) | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 STMicroelectronics | 150 °C | -55 °C | MOSFET (Metal Oxide) | TOLL (HV) | 4.75 V | 25 V | Surface Mount | 44.3 nC | N-Channel | 30 A | 10 V | 600 V | 99 mOhm | 1960 pF | 230 W | 8-PowerSFN |
