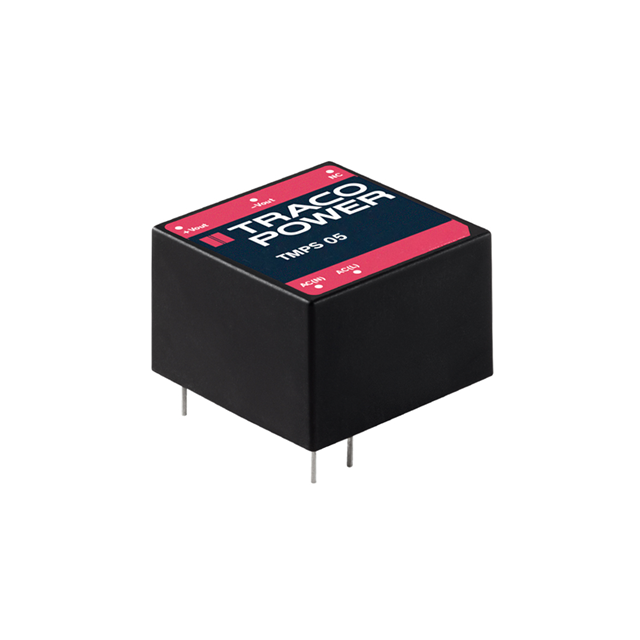

TMPS 05 Series
Manufacturer: Traco Power
Beta
⌘K
AC/DC CONVERTER 12V 5W
| Part | Line Regulation | Load Regulation | Power (Watts) | Mounting Type | Features | Operating Temperature [Max] | Operating Temperature [Min] | Applications | Number of Outputs | Current - Output (Max) [Max] | Voltage - Input [Min] | Voltage - Input [Max] | Voltage - Output 1 | Type | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Approval Agency | Package / Case | Efficiency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Traco Power | 1 % | ±1% | 5 W | Through Hole | Universal Input | 70 °C | -25 °C | Household Appliances ITE (Commercial) | 1 | 416 mA | 85 VAC 120 VDC | 264 VAC 370 VDC | 12 V | Enclosed | 0.64 in | 1 " | 25.4 mm | 16.3 mm | 25.4 mm | 1 in | CB CE cURus | 5-DIP Module | |
 Traco Power | 5 W | Through Hole | Universal Input | 70 °C | -25 °C | Household Appliances ITE (Commercial) | 1 | 1.515 A | 85 VAC 120 VDC | 264 VAC 370 VDC | 3.3 V | Enclosed | 0.64 in | 1 " | 25.4 mm | 16.3 mm | 25.4 mm | 1 in | CB CE cURus | 5-DIP Module | 74 % | ||
Traco Power | 1 % | ±1% | 5 W | Through Hole | Universal Input | 70 °C | -25 °C | Household Appliances ITE (Commercial) | 1 | 1 A | 85 VAC 120 VDC | 264 VAC 370 VDC | 5 V | Enclosed | 0.64 in | 1 " | 25.4 mm | 16.3 mm | 25.4 mm | 1 in | CB CE cURus | 5-DIP Module | 80 % |
