TAS5412-Q1 Series

Automotive, 28-W, 2-ch, 6- to 24-V analog SE input Class-D audio amplifier w/ I2C diag & load dump

Catalog

Automotive, 28-W, 2-ch, 6- to 24-V analog SE input Class-D audio amplifier w/ I2C diag & load dump

Part	Supplier Device Package	Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Mounting Type	Grade	Output Type	Max Output Power x Channels @ Load	Package / Case	Qualification	Features	Operating Temperature [Max]	Operating Temperature [Min]	Utilized IC / Part	Supplied Contents	Board Type
Texas Instruments TAS5412TPHDRQ1	64-HTQFP (14x14)	Class D	26.5 V	6 V	Surface Mount	Automotive	2-Channel (Stereo)	50 W 79 W	64-TQFP Exposed Pad	AEC-Q100	Depop Differential Inputs Mute Short-Circuit Protection Standby	105 °C	-40 °C

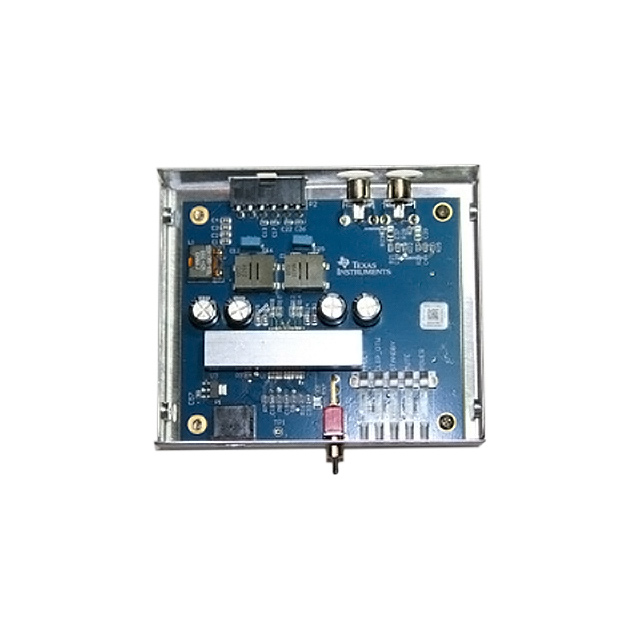

Texas Instruments TAS5412Q1PHDEVM			26.5 V	6 V			2-Channel (Stereo)	50 W 79 W						TAS5412-Q1	Board(s) Cable(s)	Fully Populated

Catalog

Automotive, 28-W, 2-ch, 6- to 24-V analog SE input Class-D audio amplifier w/ I2C diag & load dump

Key Features

• TAS5412-Q1 – Single-Ended Input2-Channel Digital Power Amplifier2 Analog Inputs, 2 BTL Power OutputsTypical Output Power per Channel at 10%28 Watts/Ch, Into 4 Ω at 14.4 VDC46 Watts/Ch, Into 2 Ω at 14.4 VDC79 Watts/Ch, Into 4 Ω at 24 VDC150 Watts Into 2 Ω at 24 VDC PBTL90 Watts Into 1 Ω at 14.4 VDC PBTLTHD+N < 0.02%, 1 kHz, 1 W Into 4 ΩPatented Pop- and Click-Reduction TechnologyPatented AM Interference AvoidancePatented Cycle-by-Cycle Current Limit75-dB PSRRFour-Address I2C Serial Interface for DeviceConfiguration and ControlChannel Gains: 12 dB, 20 dB, 26 dB, 32 dBLoad Diagnostic Functions:Output Open and Shorted LoadOutput-to-Power and -to-Ground ShortsPatented Tweeter DetectionProtection and Monitoring Functions:Short-Circuit Protection50-V Load-Dump ProtectionFortuitous Open-Ground and -Power TolerantPatented Output DC Level Detection While Music Is PlayingOvertemperature ProtectionOver- and Undervoltage ProtectionClip DetectionTAS5412-Q1 - 64-Pin QFP (PHD) PowerPAD Surface-Mount PackagePin Compatible With 4-Channel DevicesDesigned for Automotive EMC RequirementsWill Be Qualified According to AEC-Q100ISO9000:2002 TS16949 Certified–40 to 105°C Ambient Temperature RangeTAS5412-Q1 – Single-Ended Input2-Channel Digital Power Amplifier2 Analog Inputs, 2 BTL Power OutputsTypical Output Power per Channel at 10%28 Watts/Ch, Into 4 Ω at 14.4 VDC46 Watts/Ch, Into 2 Ω at 14.4 VDC79 Watts/Ch, Into 4 Ω at 24 VDC150 Watts Into 2 Ω at 24 VDC PBTL90 Watts Into 1 Ω at 14.4 VDC PBTLTHD+N < 0.02%, 1 kHz, 1 W Into 4 ΩPatented Pop- and Click-Reduction TechnologyPatented AM Interference AvoidancePatented Cycle-by-Cycle Current Limit75-dB PSRRFour-Address I2C Serial Interface for DeviceConfiguration and ControlChannel Gains: 12 dB, 20 dB, 26 dB, 32 dBLoad Diagnostic Functions:Output Open and Shorted LoadOutput-to-Power and -to-Ground ShortsPatented Tweeter DetectionProtection and Monitoring Functions:Short-Circuit Protection50-V Load-Dump ProtectionFortuitous Open-Ground and -Power TolerantPatented Output DC Level Detection While Music Is PlayingOvertemperature ProtectionOver- and Undervoltage ProtectionClip DetectionTAS5412-Q1 - 64-Pin QFP (PHD) PowerPAD Surface-Mount PackagePin Compatible With 4-Channel DevicesDesigned for Automotive EMC RequirementsWill Be Qualified According to AEC-Q100ISO9000:2002 TS16949 Certified–40 to 105°C Ambient Temperature Range

Description

The device is a two-channel digital audio amplifier designed for use in automotive head units and external amplifiers. It provides two channels at 28 W into 4 Ω at 10% THD+N from 14.4 V or 46 W into 2 Ω at 10% THD+N. The digital PWM topology provides dramatic improvements in efficiency over traditional linear amplifier solutions. This reduces the power dissipated by the amplifier by a factor of ten under typical music playback conditions. The device incorporates a patented PWM design that provides excellent power-supply rejection in the harsh electrical environment common in automotive applications. Applications attain high efficiency without the need for complicated power supply schemes. The design allows synchronization of multiple devices. The device incorporates all the functionality needed to perform in the demanding OEM applications area, including load diagnostic functions for detecting and diagnosing misconnected outputs. The device is a two-channel digital audio amplifier designed for use in automotive head units and external amplifiers. It provides two channels at 28 W into 4 Ω at 10% THD+N from 14.4 V or 46 W into 2 Ω at 10% THD+N. The digital PWM topology provides dramatic improvements in efficiency over traditional linear amplifier solutions. This reduces the power dissipated by the amplifier by a factor of ten under typical music playback conditions. The device incorporates a patented PWM design that provides excellent power-supply rejection in the harsh electrical environment common in automotive applications. Applications attain high efficiency without the need for complicated power supply schemes. The design allows synchronization of multiple devices. The device incorporates all the functionality needed to perform in the demanding OEM applications area, including load diagnostic functions for detecting and diagnosing misconnected outputs.
