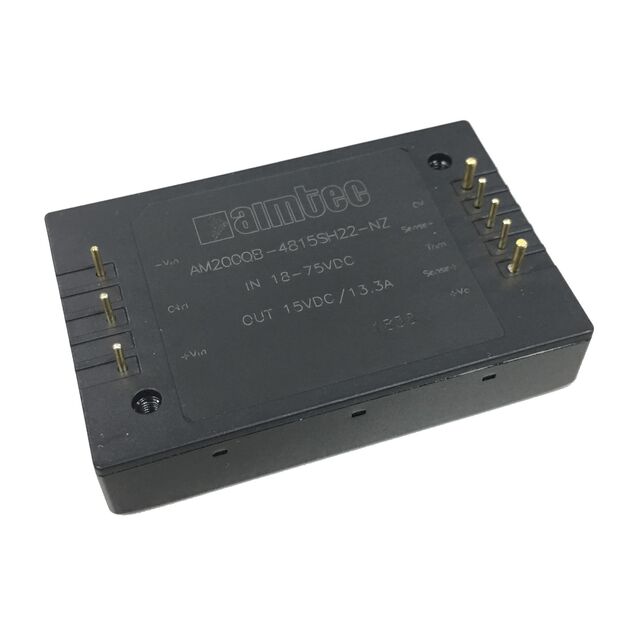

AM200QB Series
Manufacturer: aimtec
Beta
⌘K
DC DC CONVERTER 24V 202W
| Part | Efficiency | Voltage - Input (Min) [Min] | Features | Type | Package / Case | Voltage - Input (Max) [Max] | Supplier Device Package | Number of Outputs | Voltage - Output 1 | Applications | Voltage - Isolation | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Operating Temperature [Max] | Operating Temperature [Min] | Current - Output (Max) [Max] | Mounting Type | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 aimtec | 91 % | 18 V | Remote On/Off | Isolated Module | Quarter Brick | 75 V | Quarter Brick | 1 | 24 V | ITE (Commercial) | 2250 VDC | 0.5 in | 61.8 mm | 2.43 in | 40.2 mm | 1.58 " | 12.7 mm | 85 °C | -40 C | 8.4 A | Through Hole | 200 Watts |
