C3500 Series
Manufacturer: Prysmian Group
Beta
⌘K

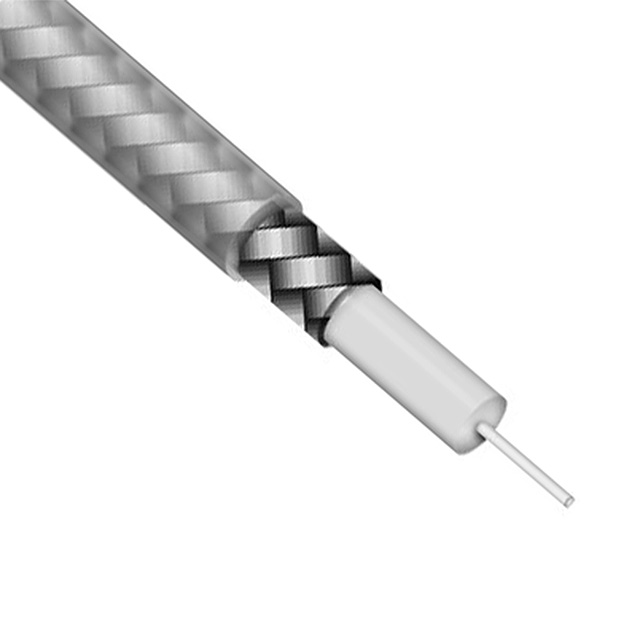

CABLE COAX PLEN RG59 20AWG 1000'
| Part | Shield Material | Length | Length | Conductor Material | VoP, Velocity of Propagation | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Wire Gauge | Length [x] | Length [x] | Shield Coverage | Dielectric Material | Usage | Cable Group | Jacket Color | Shield Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Strand | Cable Type | Wire Gauge | Impedance | Jacket (Insulation) Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Prysmian Group | Copper Bare | 100 ' | 30.48 m | Copper Coated Steel | 83 | 0.145 in | 3.68 mm | 0.52 mm˛ 20 AWG | 152.4 m 304.8 m | 500 ft 1000 ft | 95 % | Fluoropolymer (FP) | RF Signal Video | RG-59 | Natural | Braid | 5.11 mm | 0.201 in | Solid | Coaxial - Plenum | 0.52 mm² | 75 Ohms | Poly-Vinyl Chloride (PVC) |
