DF1-7 Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K

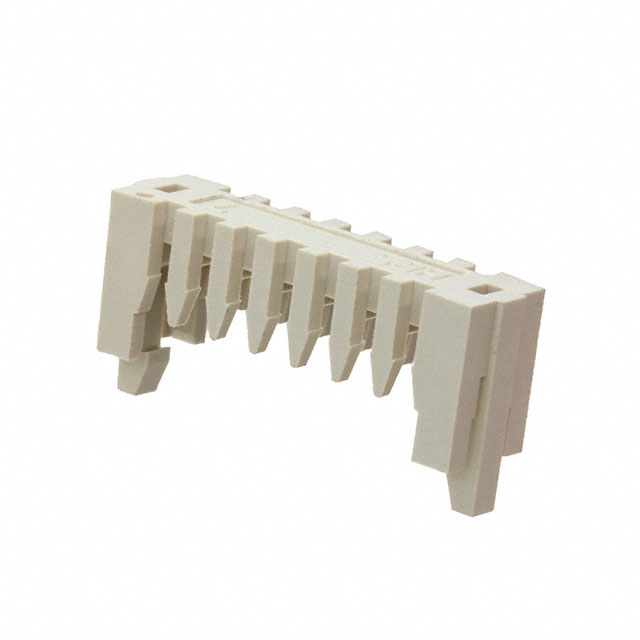

CONN SOCKET 7POS IDC 26AWG TIN
| Part | Connector Type | Mounting Type | Pitch | Pitch | Color | Number of Positions | Contact Type | Cable Termination | Features | Number of Rows | Contact Finish | Wire Gauge | Wire Type | Contact Shape | Contact Material | Insulation Material | Contact Finish - Post | Number of Positions Loaded | Material Flammability Rating | Contact Finish Thickness - Mating [custom] | Contact Finish Thickness - Mating [custom] | Style | Pitch - Mating | Pitch - Mating | Insulation Color | Fastening Type | Contact Length - Post | Contact Length - Post | Shrouding | Contact Length - Mating | Contact Length - Mating | Termination | Insulation Height [custom] | Insulation Height [custom] | Voltage Rating | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | For Use With/Related Products | Accessory Type | Features [Max] | Features [Min] | Note | Contact Termination | Contact Finish - Mating | Overall Contact Length | Overall Contact Length | Insulation Height [z] | Insulation Height [z] | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | Socket | Free Hanging (In-Line) | 2.5 mm | 0.098 in | Brown | 7 | Female Socket | IDC | Feed Through | 1 | Tin | 26 AWG | Discrete | ||||||||||||||||||||||||||||||||||||||
Hirose Electric Co Ltd | Socket | Free Hanging (In-Line) | 2.5 mm | 0.098 in | Brown | 7 | Female Socket | IDC | Feed Through | 1 | Tin | 24 AWG | Discrete | ||||||||||||||||||||||||||||||||||||||
Hirose Electric Co Ltd | Header | Right Angle Through Hole | 7 | Male Pin | 1 | Square | Brass | Nylon Polyamide (PA) | Tin | All | UL94 V-0 | 39.4 µin | 1 µm | Board to Cable/Wire | 2.5 mm | 0.098 in | Brown | Friction Lock | 0.118 in | 3 mm | Shrouded - 1 Wall | 0.177 in | 4.5 mm | Solder | 0.236 " | 6 mm | 250 V | 3 A | 85 °C | -30 ░C | |||||||||||||||||||||
Hirose Electric Co Ltd | 7 | DF1 Series | Cap (Cover) | 28 AWG | 26 AWG | ||||||||||||||||||||||||||||||||||||||||||||||
Hirose Electric Co Ltd | Socket | Free Hanging (In-Line) | 2.5 mm | 0.098 in | Brown | 7 | Female Socket | 1 | Nylon Polyamide (PA) | 85 °C | -30 ░C | Contacts Not Included | Crimp | ||||||||||||||||||||||||||||||||||||||
Hirose Electric Co Ltd | Header | Through Hole | 7 | Male Pin | 1 | Square | Brass | Nylon Polyamide (PA) | Tin | All | UL94 V-0 | Board to Cable/Wire | 2.5 mm | 0.098 in | Brown | Friction Lock | 0.118 in | 3 mm | Shrouded - 1 Wall | 0.177 in | 4.5 mm | Solder | 250 V | 3 A | 85 °C | -30 ░C | Gold | 10 mm | 0.394 in | 7.5 mm | 0.295 in | 8 µin | 0.203 µm |
