WAF150 Series

Catalog

DC/DC CONVERTER 48V 151W

Part	Standard Number	Efficiency	Operating Temperature [Min]	Operating Temperature [Max]	Type	Number of Outputs	Voltage - Isolation	Mounting Type	Voltage - Output 1	Current - Output (Max) [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Power (Watts)	Voltage - Input (Max) [Max]	Approval Agency	Voltage - Input (Min) [Min]	Applications
P-DUKE Technology WAF150-48S28W	50155 60950-1	89 %	-40 °C	100 °C	Enclosed	1	2250 VDC	Chassis Mount	28 V	5.4 A	65 mm	3.86 "	17 mm	2.56 in	98 mm	0.67 in	151 W	75 V	CB CE cURus	18 V	ITE (Commercial) Railway
P-DUKE Technology WAF150-24S28W	50155 60950-1	87 %	-40 °C	100 °C	Enclosed	1	2250 VDC	Chassis Mount	28 V	5.4 A	65 mm	3.86 "	17 mm	2.56 in	98 mm	0.67 in	151 W	36 V	CB CE cURus	9 V	ITE (Commercial) Railway
P-DUKE Technology WAF150-110S24W	50155 60950-1	89 %	-40 °C	100 °C	Enclosed	1	2250 VDC	Chassis Mount	24 V	6.3 A	65 mm	3.86 "	17 mm	2.56 in	98 mm	0.67 in	151 W	160 V	CB CE cURus	43 V	ITE (Commercial) Railway
P-DUKE Technology WAF150-48S24W	50155 60950-1	89 %	-40 °C	100 °C	Enclosed	1	2250 VDC	Chassis Mount	24 V	6.3 A	65 mm	3.86 "	17 mm	2.56 in	98 mm	0.67 in	151 W	75 V	CB CE cURus	18 V	ITE (Commercial) Railway
P-DUKE Technology WAF150-24S15W	50155 60950-1	86 %	-40 °C	100 °C	Enclosed	1	2250 VDC	Chassis Mount	15 V	10 A	65 mm	3.86 "	17 mm	2.56 in	98 mm	0.67 in	150 W	36 V	CB CE cURus	9 V	ITE (Commercial) Railway
P-DUKE Technology WAF150-24S12W	50155 60950-1	86 %	-40 °C	100 °C	Enclosed	1	2250 VDC	Chassis Mount	12 V	12.5 A	65 mm	3.86 "	17 mm	2.56 in	98 mm	0.67 in	150 W	36 V	CB CE cURus	9 V	ITE (Commercial) Railway

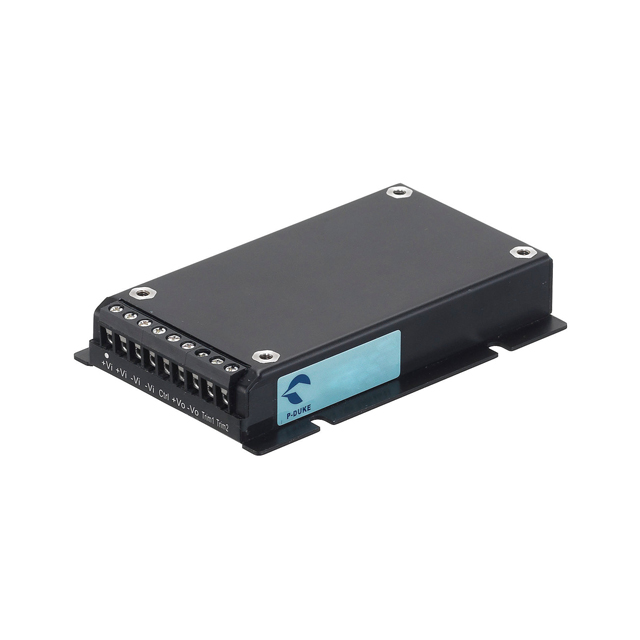

P-DUKE Technology WAF150-24S24W	50155 60950-1	87 %	-40 °C	100 °C	Enclosed	1	2250 VDC	Chassis Mount	24 V	6.3 A	65 mm	3.86 "	17 mm	2.56 in	98 mm	0.67 in	151 W	36 V	CB CE cURus	9 V	ITE (Commercial) Railway
P-DUKE Technology WAF150-48S15W	50155 60950-1	89 %	-40 °C	100 °C	Enclosed	1	2250 VDC	Chassis Mount	15 V	10 A	65 mm	3.86 "	17 mm	2.56 in	98 mm	0.67 in	150 W	75 V	CB CE cURus	18 V	ITE (Commercial) Railway
