C0781 Series
Manufacturer: Prysmian Group
Beta
⌘K

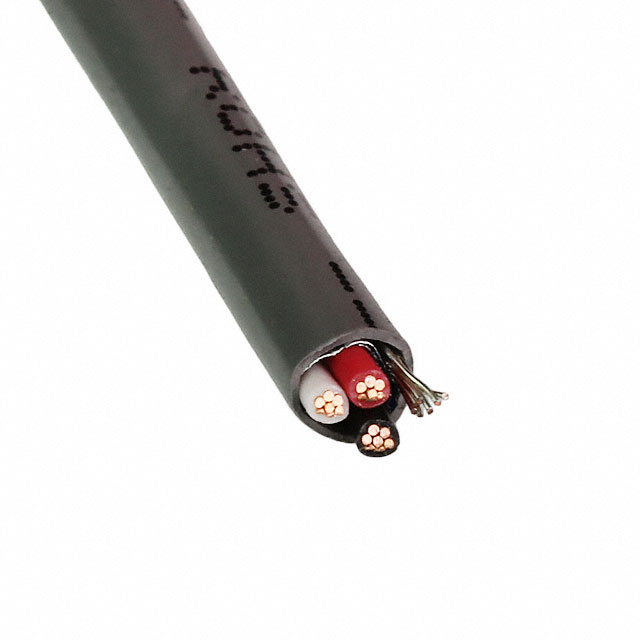

CABLE 3COND 20AWG GRAY SHLD 500'
| Part | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Number of Conductors | Ratings | Conductor Insulation | Voltage | Length | Length | Conductor Strand [custom] | Conductor Strand [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Material | Wire Gauge | Cable Type | Features | Jacket (Insulation) Material | Length [x] | Length [x] | Jacket Color | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Usage | Shield Type | Shield Material | Shield Coverage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Prysmian Group | 5.51 mm | 0.217 in | 3 | ASTM B-33 | Poly-Vinyl Chloride (PVC) | 300 VDC | 15.24 m 152.4 m 304.8 m | 50 ft 500 ft 1000 ft | 28 AWG | 7 | 80 °C | -20 ░C | Copper Annealed Tinned | 20 AWG | Multi-Conductor | Drain Wire | Poly-Vinyl Chloride (PVC) | 100 ft | 30.5 m | Gray | 0.813 mm | 0.032 in | Computer | Foil | ||
Prysmian Group | 5.51 mm | 0.217 in | 3 | ASTM B-33 | Poly-Vinyl Chloride (PVC) | 300 VDC | 15.24 m 304.8 m | 50 ft 1000 ft | 28 AWG | 7 | 80 °C | -20 ░C | Copper Annealed Tinned | 20 AWG | Multi-Conductor | Drain Wire | Poly-Vinyl Chloride (PVC) | Gray | 0.813 mm | 0.032 in | Computer | Foil | Flexfoil® | 100 % |
