STTH1502 Series

Catalog

DIODE GP 200V 15A TO220AC INS

Part	Reverse Recovery Time (trr)	Speed	Voltage - Forward (Vf) (Max) @ If [Max]	Current - Reverse Leakage @ Vr	Mounting Type	Technology	Supplier Device Package	Current - Average Rectified (Io)	Voltage - DC Reverse (Vr) (Max) [Max]	Operating Temperature - Junction [Max]	Package / Case
STMicroelectronics STTH1502DI	36 ns	200 mA 500 ns	1.1 V	10 ÁA	Through Hole	Standard	TO-220AC ins	15 A	200 V	175 ░C

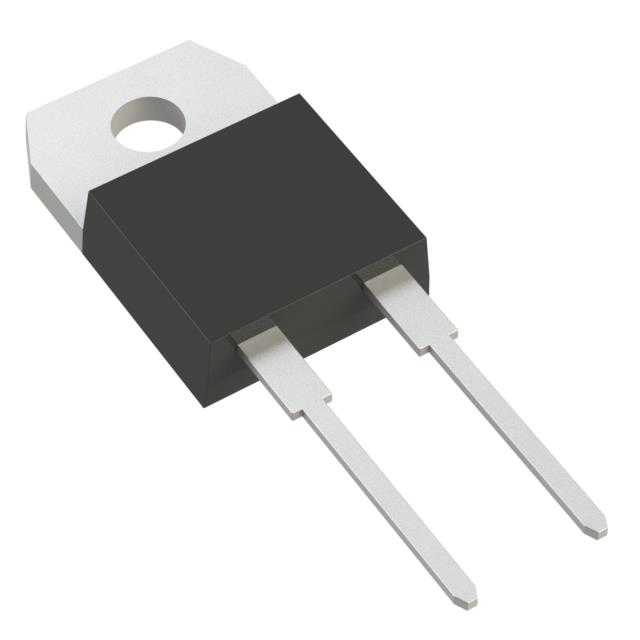

STMicroelectronics STTH1502D	36 ns	200 mA 500 ns	1.1 V	10 ÁA	Through Hole	Standard	TO-220AC	15 A	200 V	175 ░C	TO-220-2
STMicroelectronics STTH1502FP	36 ns	200 mA 500 ns	1.1 V	10 ÁA	Through Hole	Standard	TO-220FPAC	15 A	200 V	175 ░C	TO-220-2 Full Pack
