895-011 Series
Manufacturer: EDAC Inc.
Beta
⌘K

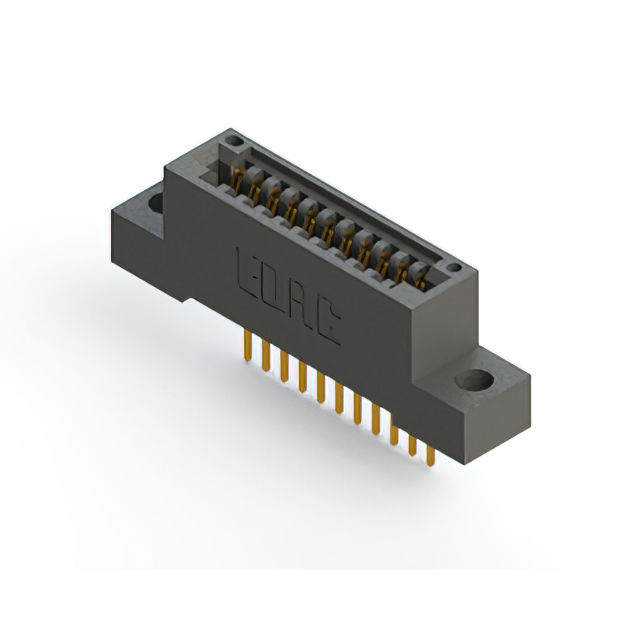

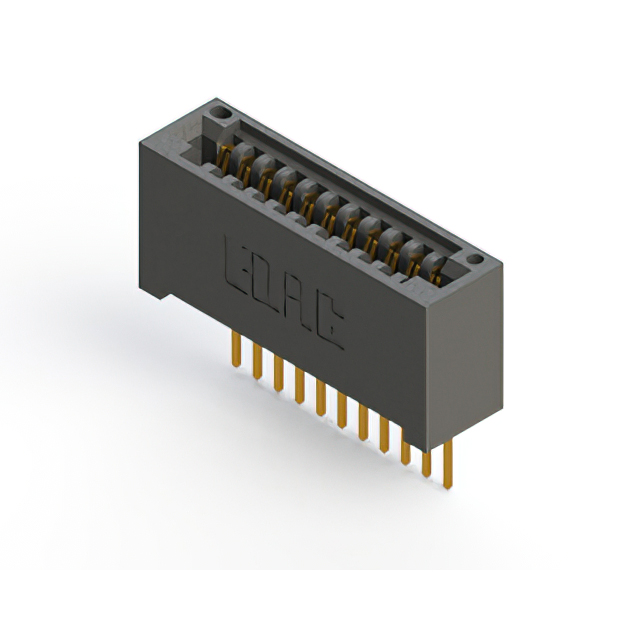

CONN EDGE SINGLE FML 11POS 0.100
| Part | Termination Rows | Material - Insulation | Gender | Pitch | Pitch | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Contact Finish | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Card Thickness [Max] | Card Thickness [Min] | Contact Type | Termination | Card Type | Read Out | Contact Finish Thickness | Contact Finish Thickness | Number of Rows | Contact Material | Color | Number of Positions/Bay/Row | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Female | 0.1 " | 2.54 mm | 125 °C | -40 C | 11 | Gold | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Solder | Non Specified - Single Edge | Single | 0.25 Ám | 10 Áin | 1 | Copper Alloy | Black | 11 | Through Hole |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Female | 0.1 " | 2.54 mm | 125 °C | -40 C | 11 | Gold | 0.128 " | 3.25 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Solder | Non Specified - Single Edge | Single | 0.25 Ám | 10 Áin | 1 | Copper Alloy | Black | 11 | Right Angle Through Hole | |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Female | 0.1 " | 2.54 mm | 125 °C | -40 C | 11 | Gold | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Wire Wrap | Non Specified - Single Edge | Single | 0.25 Ám | 10 Áin | 1 | Copper Alloy | Black | 11 | Through Hole |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Female | 0.1 " | 2.54 mm | 125 °C | -40 C | 11 | Gold | 0.128 " | 3.25 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Wire Wrap | Non Specified - Single Edge | Single | 0.25 Ám | 10 Áin | 1 | Copper Alloy | Black | 11 | Through Hole | |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Female | 0.1 " | 2.54 mm | 125 °C | -40 C | 11 | Gold | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Solder | Non Specified - Single Edge | Single | 0.25 Ám | 10 Áin | 1 | Copper Alloy | Black | 11 | Through Hole |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Female | 0.1 " | 2.54 mm | 125 °C | -40 C | 11 | Gold | 0.156 " | 3.96 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Solder | Non Specified - Single Edge | Single | 0.25 Ám | 10 Áin | 1 | Copper Alloy | Black | 11 | Through Hole | |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Female | 0.1 " | 2.54 mm | 125 °C | -40 C | 11 | Gold | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Wire Wrap | Non Specified - Single Edge | Single | 0.25 Ám | 10 Áin | 1 | Copper Alloy | Black | 11 | Through Hole |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Female | 0.1 " | 2.54 mm | 125 °C | -40 C | 11 | Gold | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Solder Eyelet(s) | Non Specified - Single Edge | Single | 0.25 Ám | 10 Áin | 1 | Copper Alloy | Black | 11 | Through Hole |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Female | 0.1 " | 2.54 mm | 125 °C | -40 C | 11 | Gold | Flush Mount Top Opening Unthreaded | 0.128 " | 3.25 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Solder | Non Specified - Single Edge | Single | 0.25 Ám | 10 Áin | 1 | Copper Alloy | Black | 11 | Through Hole |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Female | 0.1 " | 2.54 mm | 125 °C | -40 C | 11 | Gold | Floating Bobbin Top Mount Opening | 0.116 " | 2.95 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Wire Wrap | Non Specified - Single Edge | Single | 0.25 Ám | 10 Áin | 1 | Copper Alloy | Black | 11 | Through Hole |
