AA3528 Series

Catalog

LED RED CLEAR SMD

Part	Millicandela Rating	Supplier Device Package	Wavelength - Peak	Height (Max) [z]	Lens Color	Size / Dimension [y]	Size / Dimension [x]	Lens Transparency	Configuration	Viewing Angle	Lens Size [diameter]	Package / Case	Wavelength - Dominant	Current - Test	Lens Style	Mounting Type	Color	Voltage - Forward (Vf) (Typ)	Height (Max) [Max] [z]	Orientation	Current - DC Forward (If) (Max)	Radiant Intensity (Ie) Min @ If [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Type	Wavelength	Current - Dark (Id) (Max) [Max]	Power - Max [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]

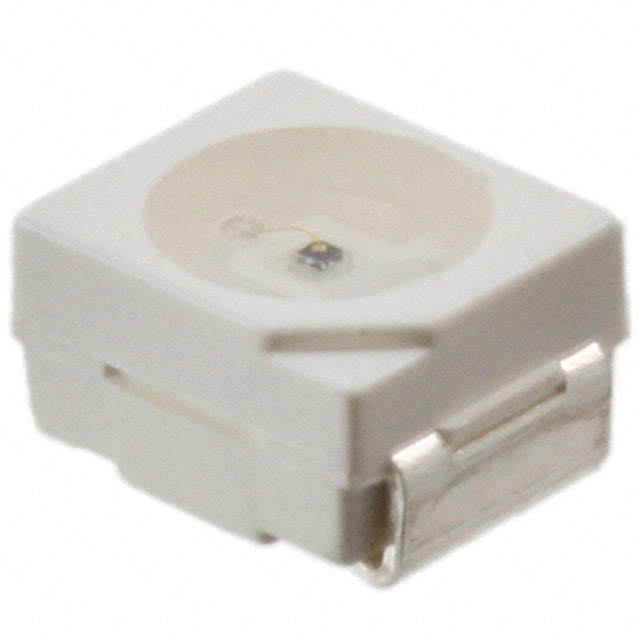

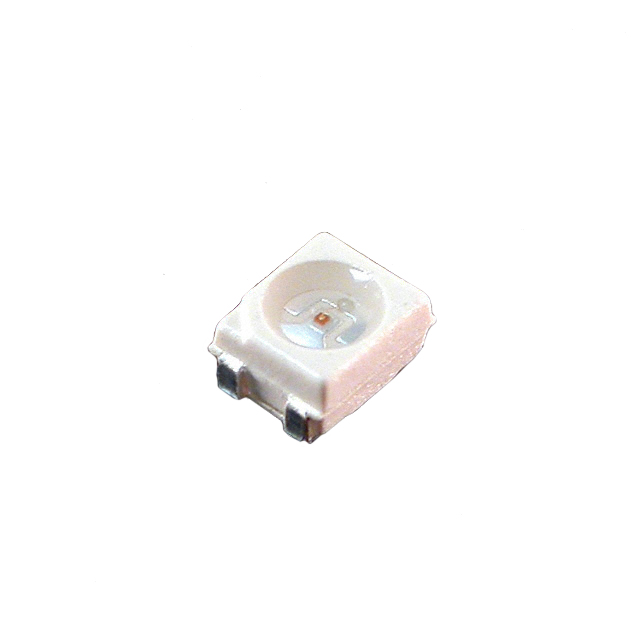

Kingbright AA3528SRS	150 mcd	SMD	660 nm	2.1 mm	Colorless	2.8 mm	3.2 mm	Clear	Standard	120 °	2.4 mm Dia	2-PLCC	640 nm	20 mA	Round with Flat Top	Surface Mount	Red	1.85 V
Kingbright AA3528SECKT/J3	1500 mcd	2-SMD	640 nm		Colorless	2.8 mm	3.2 mm	Clear	Independent	120 °	2.4 mm Dia	2-PLCC	625 nm	20 mA	Round with Flat Top	Surface Mount	Red	2.2 V	2.15 mm
Kingbright AA3528QWC/D09		SMD				2.8 mm	3.2 mm					2-PLCC				Surface Mount

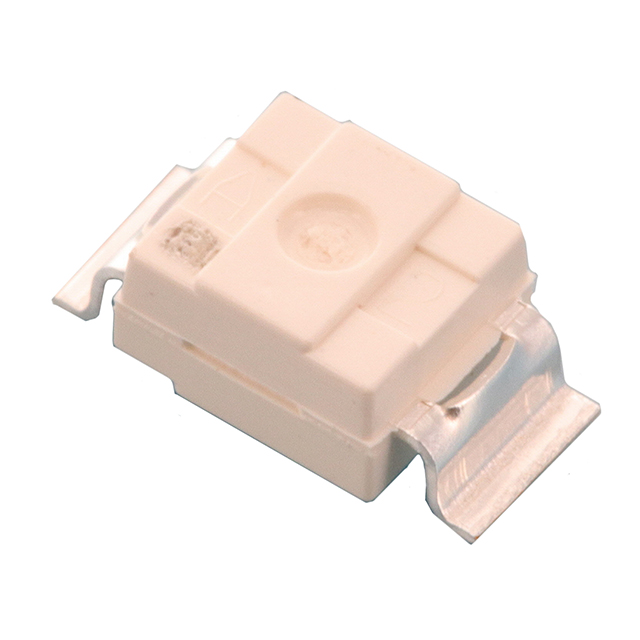

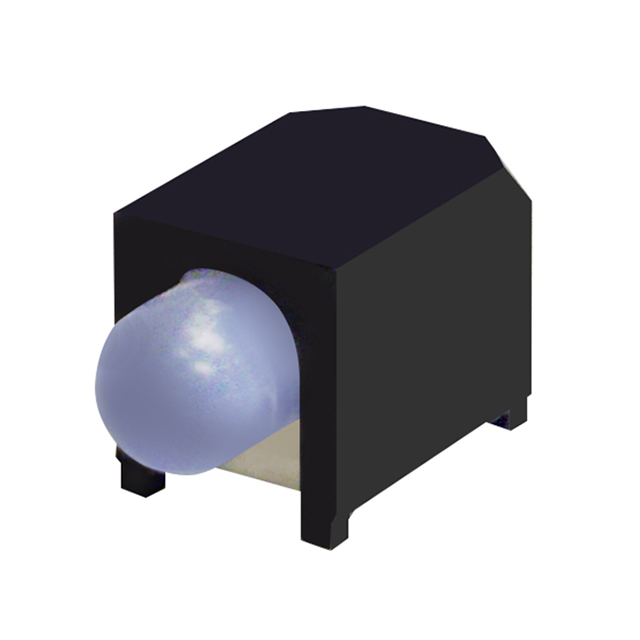

Kingbright AA3528QBS/D09	150 mcd	SMD	460 nm		Colorless	2.8 mm	3.2 mm	Clear		120 °	2.4 mm Dia	2-SMD Gull Wing	465 nm	20 mA	Round with Flat Top	Surface Mount Bottom Entry	Blue	3.3 V	2.15 mm

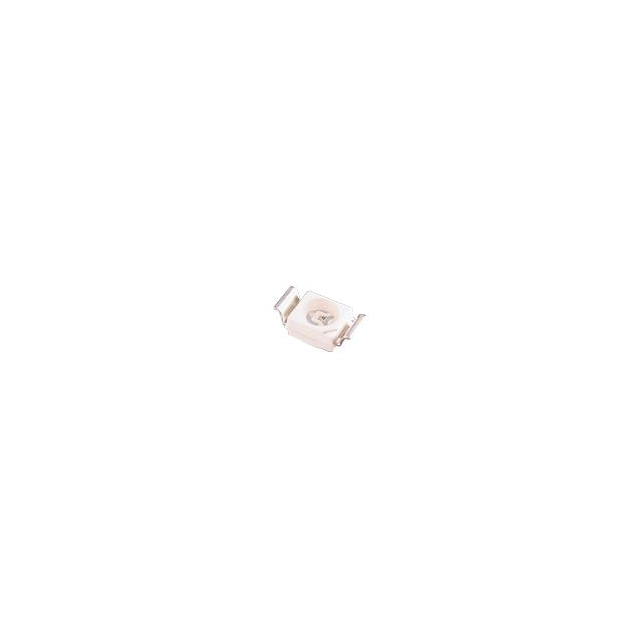

Kingbright AA3528ZGCKT09	1000 mcd	SMD	515 nm		Colorless	2.8 mm	3.2 mm	Clear		120 °	2.4 mm Dia	2-SMD Gull Wing	525 nm	20 mA	Round with Flat Top	Surface Mount Bottom Entry	Green	3.3 V	2.15 mm

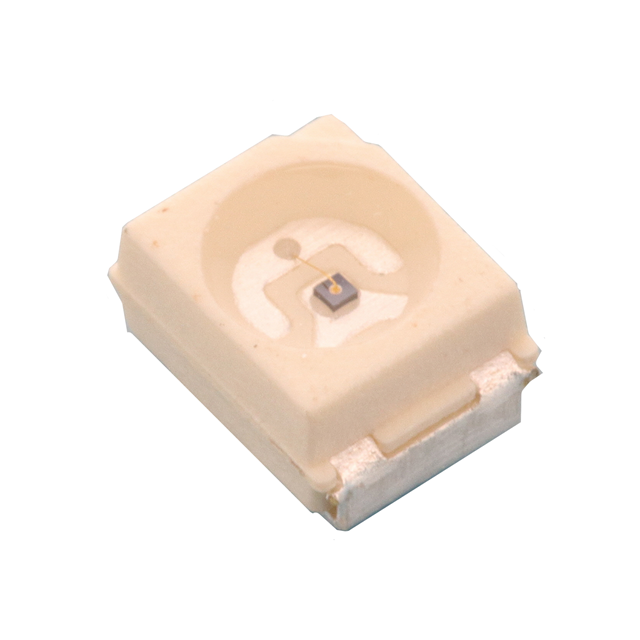

Kingbright AA3528SF4S-R										120 °		2-PLCC				Surface Mount		1.3 V		Top View	50 mA	1.2 mW/sr	85 C	-40 ¯C	Infrared (IR)	880 nm

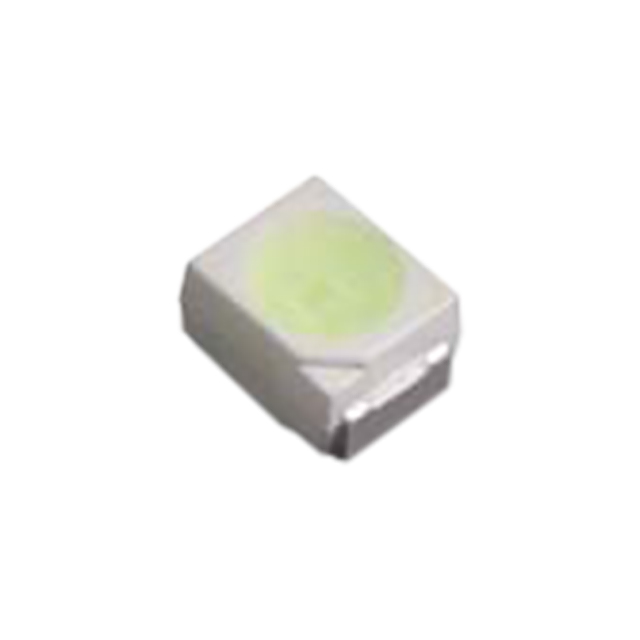

Kingbright AA3528VRBXS/A-SC-AMT	1300 mcd	2-PLCC		2.1 mm	Colorless	2.8 mm	3.2 mm	Clear	Standard	120 °	2.4 mm Dia	2-PLCC		20 mA	Round with Flat Top	Surface Mount	Blue	3.3 V

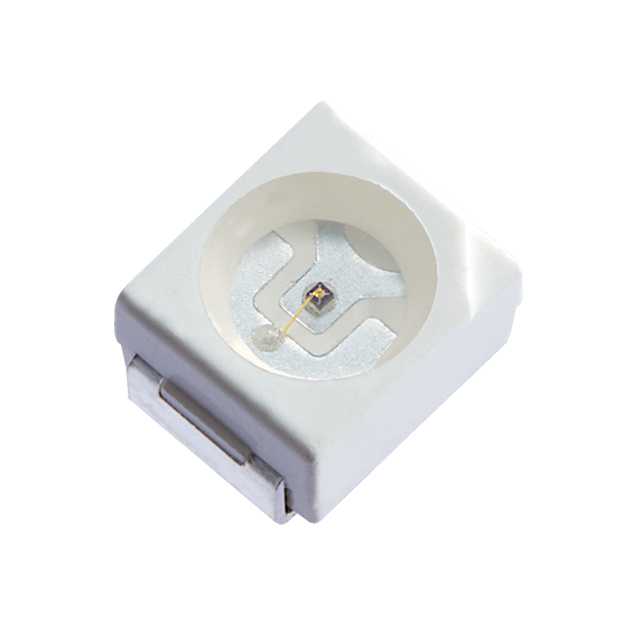

Kingbright AA3528ZGCK	1000 mcd	2-SMD	515 nm		Colorless	2.8 mm	3.2 mm	Clear	Independent	120 °	2.4 mm Dia	2-PLCC	525 nm	20 mA	Round with Flat Top	Surface Mount	Green	3.3 V	2.15 mm
Kingbright AA3528-PZ83

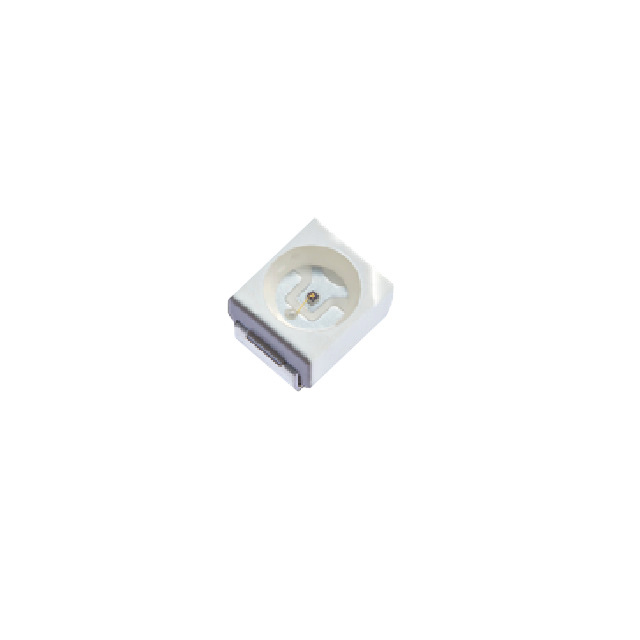

Kingbright AA3528P3S												2-PLCC				Surface Mount				Top View			85 °C	-40 C			100 nA	100 mW	30 V
