4710PS Series

AC Fans AC Axial Fan, 119x119x25mm, 240VAC, 70.6CFM, Flange Mount, Terminals

Manufacturer: NMB TECHNOLOGIES

Catalog

AC Fans AC Axial Fan, 119x119x25mm, 240VAC, 70.6CFM, Flange Mount, Terminals

Catalog

AC Fans AC Axial Fan, 119x119x25mm, 240VAC, 70.6CFM, Flange Mount, Terminals

Part	Lifetime @ Temp.	Material - Blade	Current Rating (Amps)	Material - Frame	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Bearing Type	Power (Watts)	RPM	Voltage - Rated	Termination	Noise	Width [y]	Static Pressure	Static Pressure	Air Flow	Air Flow	Size / Dimension	Size / Dimension [x]	Size / Dimension [y]	Weight	Weight	Fan Type

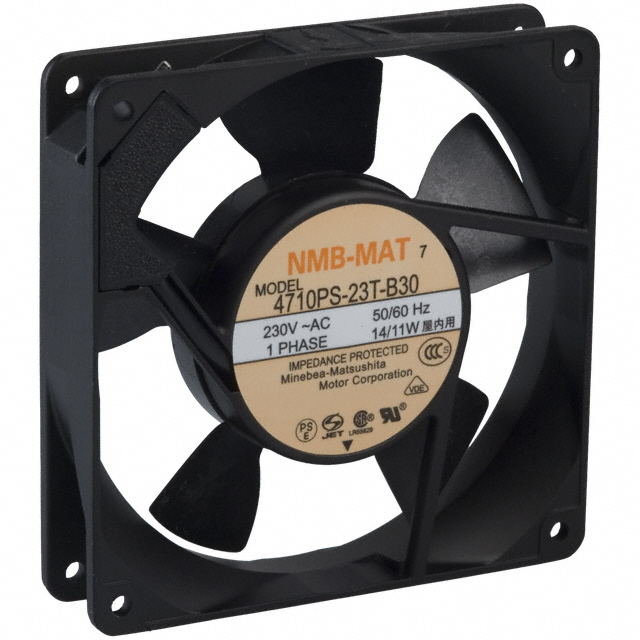

NMB TECHNOLOGIES 4710PS-23T-B30-A00	50000 Hrs	Polycarbonate (PC) Fiberglass Reinforced	0.09 A	Aluminum	70 °C	-10 °C	CE CSA UL VDE	Ball	11 W	2700 RPM	230 VAC	2	38 dB(A)	25.5 mm	40 Pa	0.16 in H2O	70.6 CFM	1.98 mł/min	Square	119 mm	119 mm	362.87 g	0.8 lb	Tubeaxial
NMB TECHNOLOGIES 4710PS-22T-B30-B00	50000 Hrs	Polycarbonate (PC) Fiberglass Reinforced		Aluminum	70 °C	-10 °C	CE CSA UL VDE	Ball	11 W	2700 RPM	220 VAC	2	38 dB(A)	25.5 mm	41.1 Pa	0.165 in H2O	70.6 CFM	1.98 mł/min	Square	119 mm	119 mm	362.87 g	0.8 lb	Tubeaxial
NMB TECHNOLOGIES 4710PS-10T-B20-B00	50000 Hrs	Polycarbonate (PC) Fiberglass Reinforced	100 mA	Aluminum	70 °C	-10 °C	CE CSA UL VDE	Ball	7 W	2100 RPM	100 VAC	2	30 dB	25.5 mm	21.5 Pa	0.086 in H2O	53 CFM	1.48 mł/min	Square	119 mm	119 mm	362.87 g	0.8 lb	Tubeaxial
NMB TECHNOLOGIES 4710PS-22T-B20-B00	50000 Hrs	Polycarbonate (PC) Fiberglass Reinforced	50 mA	Aluminum	70 °C	-10 °C	CE CSA UL VDE	Ball	8 W	2100 RPM	220 VAC	2	30 dB	25.5 mm	21.5 Pa	0.086 in H2O	53 CFM	1.48 mł/min	Square	119 mm	119 mm	362.87 g	0.8 lb	Tubeaxial

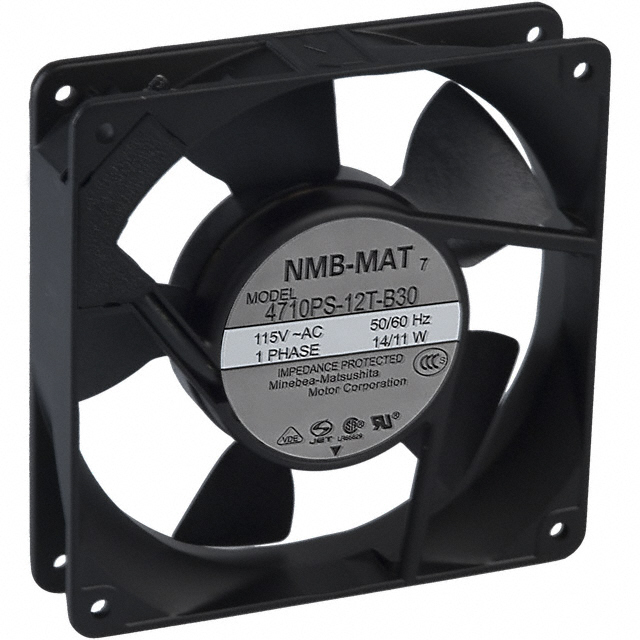

NMB TECHNOLOGIES 4710PS-12T-B30-A00	50000 Hrs	Polycarbonate (PC) Fiberglass Reinforced		Aluminum	70 °C	-10 °C	CE CSA UL VDE	Ball	11 W	2700 RPM	115 VAC	2	38 dB(A)	25.5 mm	39.8 Pa	0.16 in H2O	70.6 CFM	1.98 mł/min	Square	119 mm	119 mm	362.87 g	0.8 lb	Tubeaxial
NMB TECHNOLOGIES 4710PS-20T-B30-B00	50000 Hrs	Polycarbonate (PC) Fiberglass Reinforced	0.09 A	Aluminum	70 °C	-10 °C	CE CSA UL VDE	Ball	11 W	2700 RPM	200 VAC	2	38 dB(A)	25.5 mm	41.1 Pa	0.165 in H2O	70.6 CFM	1.98 mł/min	Square	119 mm	119 mm	362.87 g	0.8 lb	Tubeaxial
NMB TECHNOLOGIES 4710PS-20T-B20-B00	50000 Hrs	Polycarbonate (PC) Fiberglass Reinforced	60 mA	Aluminum	70 °C	-10 °C	CE CSA UL VDE	Ball	8 W	2000 RPM	200 VAC	2	30 dB	25.5 mm	21.5 Pa	0.086 in H2O	53 CFM	1.48 mł/min	Square	119 mm	119 mm	362.87 g	0.8 lb	Tubeaxial

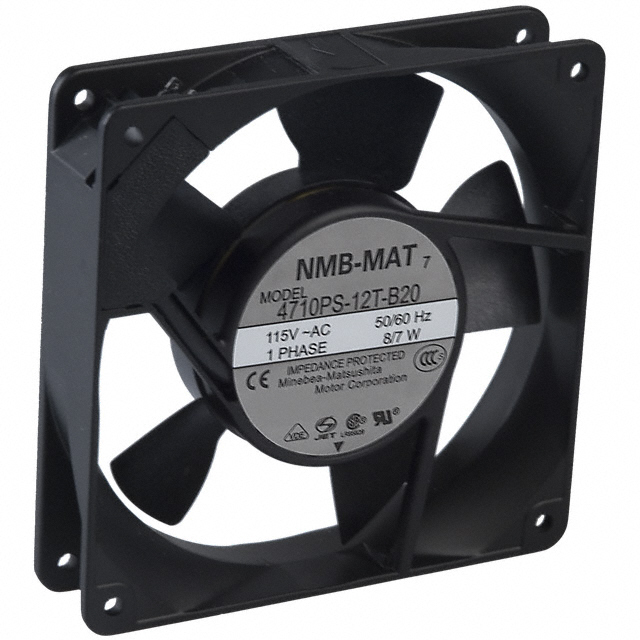

NMB TECHNOLOGIES 4710PS-12T-B20-A00	50000 Hrs	Polycarbonate (PC) Fiberglass Reinforced	0.09 A	Aluminum	70 °C	-10 °C	CE CSA UL VDE	Ball	7 W	2000 RPM	115 VAC	2	30 dB	25.5 mm	21.5 Pa	0.086 in H2O	53 CFM	1.48 mł/min	Square	119 mm	119 mm	362.87 g	0.8 lb	Tubeaxial
NMB TECHNOLOGIES 4710PS-24T-B20-A00	50000 Hrs	Polycarbonate (PC) Fiberglass Reinforced	50 mA	Aluminum	70 °C	-10 °C	CE CSA UL VDE	Ball	8 W	2100 RPM	240 VAC	2	30 dB	25.5 mm	21.5 Pa	0.086 in H2O	53 CFM	1.48 mł/min	Square	119 mm	119 mm	362.87 g	0.8 lb	Tubeaxial
NMB TECHNOLOGIES 4710PS-23T-B3A-A00	50000 Hrs	Polycarbonate (PC) Fiberglass Reinforced	0.09 A	Aluminum	70 °C	-10 °C	CE CSA UL VDE	Ball	11 W	2700 RPM	230 VAC	2	38 dB(A)	25.5 mm	40 Pa	0.16 in H2O	70.6 CFM	1.98 mł/min	Square	119 mm	119 mm	362.87 g	0.8 lb	Tubeaxial
