STR735 Series

Catalog

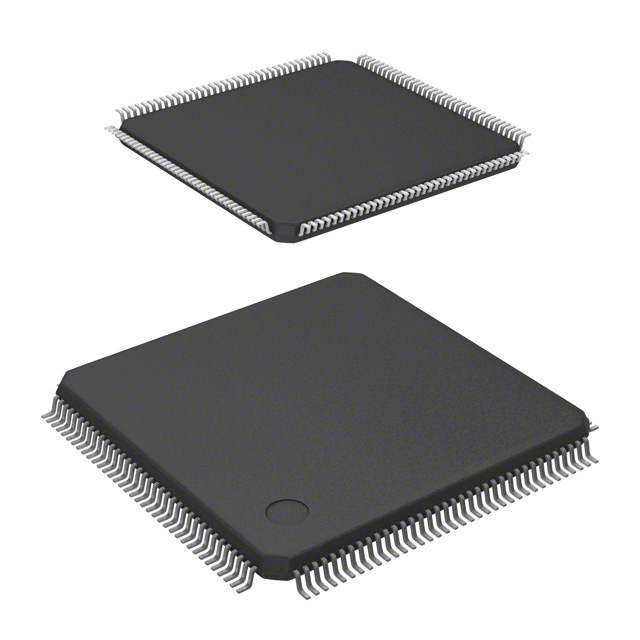

IC MCU 32BIT 256KB FLASH 144LQFP

Part	Core Size	Speed	Core Processor	Number of I/O	Package / Case	Connectivity	Data Converters [custom]	Data Converters	Data Converters [custom]	Program Memory Size	Mounting Type	Program Memory Type	Operating Temperature [Min]	Operating Temperature [Max]	Oscillator Type	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	RAM Size	Peripherals
STMicroelectronics STR735FZ2T7	32-Bit 32-Bit Single-Core	36 MHz	ARM7®	112	144-LQFP	I2C SPI UART/USART	10 b	A/D	16	256 KB	Surface Mount	FLASH	-40 °C	105 °C	Internal	4.5 V	5.5 V	16 K	DMA POR PWM WDT
STMicroelectronics STR735FZ2H7	32-Bit 32-Bit Single-Core	36 MHz	ARM7®	112	144-LFBGA	I2C SPI UART/USART	10 b	A/D	16	256 KB	Surface Mount	FLASH	-40 °C	105 °C	Internal	4.5 V	5.5 V	16 K	DMA POR PWM WDT
STMicroelectronics STR735FZ1H7	32-Bit 32-Bit Single-Core	36 MHz	ARM7®	112	144-LFBGA	I2C SPI UART/USART	10 b	A/D	16	128 KB	Surface Mount	FLASH	-40 °C	105 °C	Internal	4.5 V	5.5 V	16 K	DMA POR PWM WDT
STMicroelectronics STR735FZ1T6	32-Bit 32-Bit Single-Core	36 MHz	ARM7®	112	144-LQFP	I2C SPI UART/USART	10 b	A/D	16	128 KB	Surface Mount	FLASH	-40 ¯C	85 C	Internal	4.5 V	5.5 V	16 K	DMA POR PWM WDT
STMicroelectronics STR735FZ2T6	32-Bit 32-Bit Single-Core	36 MHz	ARM7®	112	144-LQFP	I2C SPI UART/USART	10 b	A/D	16	256 KB	Surface Mount	FLASH	-40 ¯C	85 C	Internal	4.5 V	5.5 V	16 K	DMA POR PWM WDT
STMicroelectronics STR735FZ2H6	32-Bit 32-Bit Single-Core	36 MHz	ARM7®	112	144-LFBGA	I2C SPI UART/USART	10 b	A/D	16	256 KB	Surface Mount	FLASH	-40 ¯C	85 C	Internal	4.5 V	5.5 V	16 K	DMA POR PWM WDT
STMicroelectronics STR735FZ1H6	32-Bit 32-Bit Single-Core	36 MHz	ARM7®	112	144-LFBGA	I2C SPI UART/USART	10 b	A/D	16	128 KB	Surface Mount	FLASH	-40 ¯C	85 C	Internal	4.5 V	5.5 V	16 K	DMA POR PWM WDT
