BC337 Series

Catalog

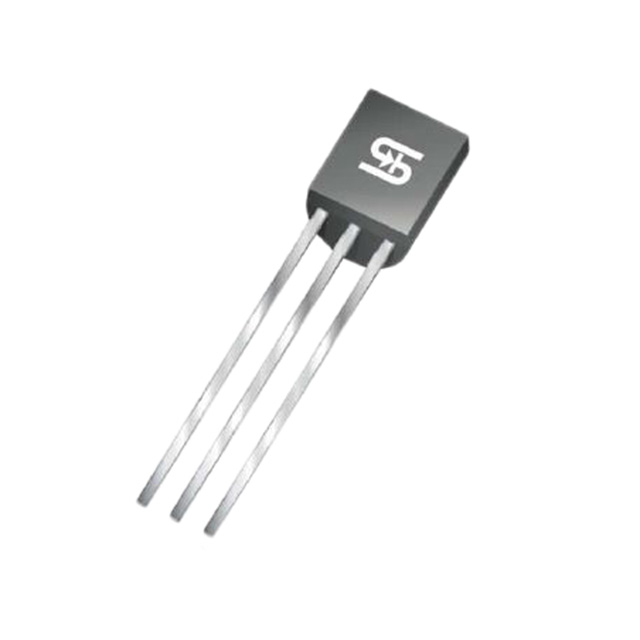

TRANS NPN 45V 0.8A TO92

Part	Package / Case	Package / Case	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Transistor Type	Vce Saturation (Max) @ Ib, Ic	Frequency - Transition	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Power - Max [Max]	Current - Collector Cutoff (Max) [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	Mounting Type	Current - Collector (Ic) (Max) [Max]
Taiwan Semiconductor Corporation BC337-40 B1G	TO-226AA	TO-226-3 TO-92-3	TO-92	150 °C	-55 °C	NPN	700 mV	100 MHz	250	625 mW	100 nA	45 V	Through Hole	800 mA
Taiwan Semiconductor Corporation BC337-40 A1G		TO-226-3 TO-92-3 (TO-226AA) Formed Leads	TO-92	150 °C	-55 °C	NPN	700 mV	100 MHz	250	625 mW	100 nA	45 V	Through Hole	800 mA
Taiwan Semiconductor Corporation BC337-16 A1G		TO-226-3 TO-92-3 (TO-226AA) Formed Leads	TO-92	150 °C	-55 °C	NPN	700 mV	100 MHz	100	625 mW	100 nA	45 V	Through Hole	800 mA
Taiwan Semiconductor Corporation BC337-25 A1G		TO-226-3 TO-92-3 (TO-226AA) Formed Leads	TO-92	150 °C	-55 °C	NPN	700 mV	100 MHz	160	625 mW	100 nA	45 V	Through Hole	800 mA
Taiwan Semiconductor Corporation BC337-16 B1G	TO-226AA	TO-226-3 TO-92-3	TO-92	150 °C	-55 °C	NPN	700 mV	100 MHz	100	625 mW	100 nA	45 V	Through Hole	800 mA
Taiwan Semiconductor Corporation BC337-25 B1G	TO-226AA	TO-226-3 TO-92-3	TO-92	150 °C	-55 °C	NPN	700 mV	100 MHz	160	625 mW	100 nA	45 V	Through Hole	800 mA
