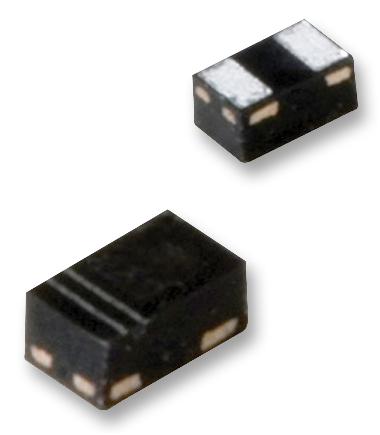

Extra low capacitance single line TVS
Description
AI
The ESDAXLC6-1BT2 is an ESD device designed for high-speed lines protection.
For automotive application, an AEC-Q101 qualified version is available see ESDAXLC6-1BT2Y.
Beta
⌘K
Extra low capacitance single line TVS
Extra low capacitance single line TVS
| Part | Type | Mounting Type | Voltage - Reverse Standoff (Typ) | Supplier Device Package | Package / Case | Capacitance @ Frequency | Power Line Protection | Operating Temperature [Min] | Operating Temperature [Max] | Power - Peak Pulse | Applications | Unidirectional Channels [custom] | Voltage - Breakdown (Min) [Min] | Voltage - Clamping (Max) @ Ipp [Max] | Current - Peak Pulse (10/1000µs) | Bidirectional Channels [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 STMicroelectronics | Zener | Surface Mount | 3 V | SOD882 (µQFN-2) | 0402 (1006 Metric) | 0.35 pF | -40 C | 125 °C | 12 W | General Purpose | 1 | 6 V | ||||
 STMicroelectronics | Zener | Surface Mount | 3 V | SOD-882T | SOD-882 | 0.4 pF | -40 °C | 150 °C | 40 W | General Purpose | 6 V | 17 V | 1 A | 1 |
