895-068 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 68POS 0.100

...

Part	Number of Positions	Mounting Type	Card Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Number of Rows [custom]	Color	Termination	Card Thickness [Max]	Card Thickness [Min]	Pitch	Pitch	Gender	Contact Type	Termination Rows [custom]	Read Out	Material - Insulation	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Number of Positions/Bay/Row	Features	Number of Rows	Termination Rows
EDAC Inc. 895-068-500-503	68 positions	Through Hole	Non Specified - Dual Edge	125 °C	-40 C	Gold	2	Black	Solder Eyelet(s)	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Female	Cantilever	2	Dual	Polyphenylene Sulfide (PPS)	Floating Bobbin Top Mount Opening	0.116 "	2.95 mm	0.25 Ám	10 Áin	Copper Alloy	34
EDAC Inc. 895-068-560-201	68 positions	Board Edge Straddle Mount	Non Specified - Dual Edge	125 °C	-40 C	Gold	2	Black	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Female	Cantilever	2	Dual	Polyphenylene Sulfide (PPS)				0.25 Ám	10 Áin	Copper Alloy	34	Card Extender
EDAC Inc. 895-068-542-201	68 positions	Through Hole	Non Specified - Dual Edge	125 °C	-40 C	Gold	2	Black	Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Female	Cantilever	2	Dual	Polyphenylene Sulfide (PPS)				0.25 Ám	10 Áin	Copper Alloy	34

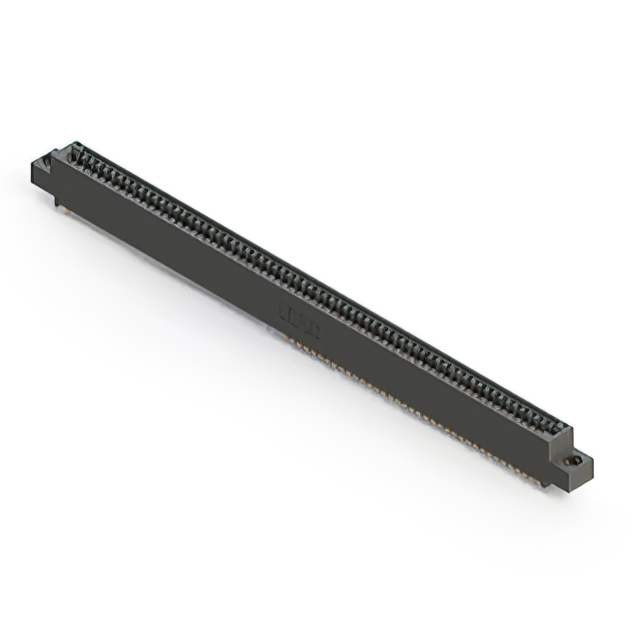

EDAC Inc. 895-068-558-408	68 positions	Right Angle Through Hole	Non Specified - Single Edge	125 °C	-40 C	Gold		Black	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Female	Cantilever		Single	Polyphenylene Sulfide (PPS)	4-40 Threaded Insert Top Mount Opening			0.25 Ám	10 Áin	Copper Alloy	68		1	1
EDAC Inc. 895-068-500-803	68 positions	Through Hole	Non Specified - Dual Edge	125 °C	-40 C	Gold	2	Black	Solder Eyelet(s)	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Female	Cantilever	2	Dual	Polyphenylene Sulfide (PPS)	Floating Bobbin Top Mount Opening	0.116 "	2.95 mm	0.25 Ám	10 Áin	Copper Alloy	34

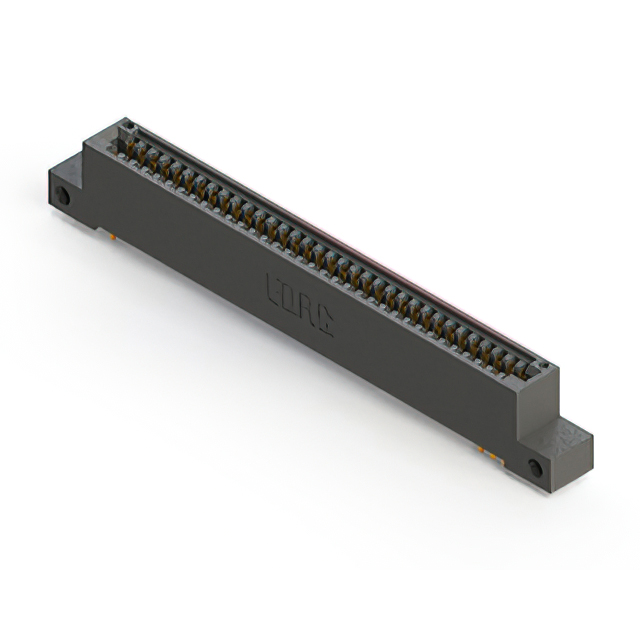

EDAC Inc. 895-068-523-212	68 positions	Through Hole	Non Specified - Dual Edge	125 °C	-40 C	Gold	2	Black	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Female	Cantilever	2	Dual	Polyphenylene Sulfide (PPS)	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	0.25 Ám	10 Áin	Copper Alloy	34

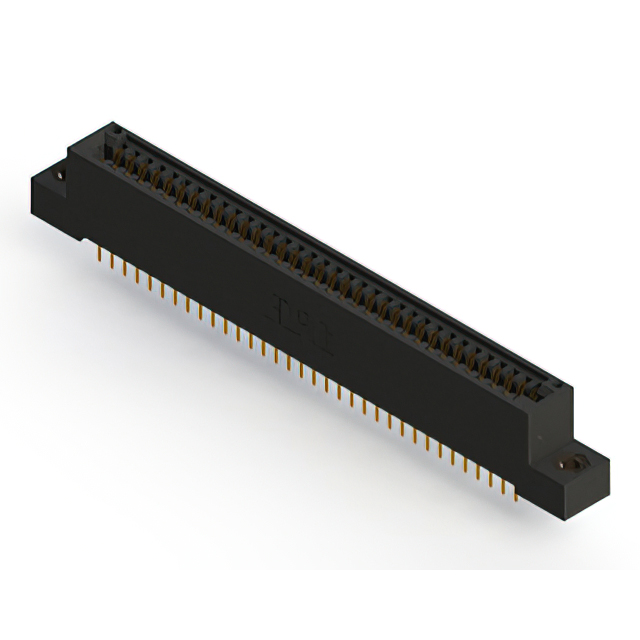

EDAC Inc. 895-068-525-207	68 positions	Through Hole	Non Specified - Dual Edge	125 °C	-40 C	Gold	2	Black	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Female	Cantilever	2	Dual	Polyphenylene Sulfide (PPS)	Flush Mount M3 Threaded Insert Top Opening			0.25 Ám	10 Áin	Copper Alloy	34
EDAC Inc. 895-068-558-212	68 positions	Right Angle Through Hole	Non Specified - Dual Edge	125 °C	-40 C	Gold	2	Black	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Female	Cantilever	2	Dual	Polyphenylene Sulfide (PPS)	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	0.25 Ám	10 Áin	Copper Alloy	34
EDAC Inc. 895-068-540-507	68 positions	Through Hole	Non Specified - Dual Edge	125 °C	-40 C	Gold	2	Black	Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Female	Cantilever	2	Dual	Polyphenylene Sulfide (PPS)	M3 Threaded Insert Top Mount Opening			0.25 Ám	10 Áin	Copper Alloy	34
EDAC Inc. 895-068-520-803	68 positions	Through Hole	Non Specified - Dual Edge	125 °C	-40 C	Gold	2	Black	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Female	Cantilever	2	Dual	Polyphenylene Sulfide (PPS)	Floating Bobbin Top Mount Opening	0.116 "	2.95 mm	0.25 Ám	10 Áin	Copper Alloy	34
