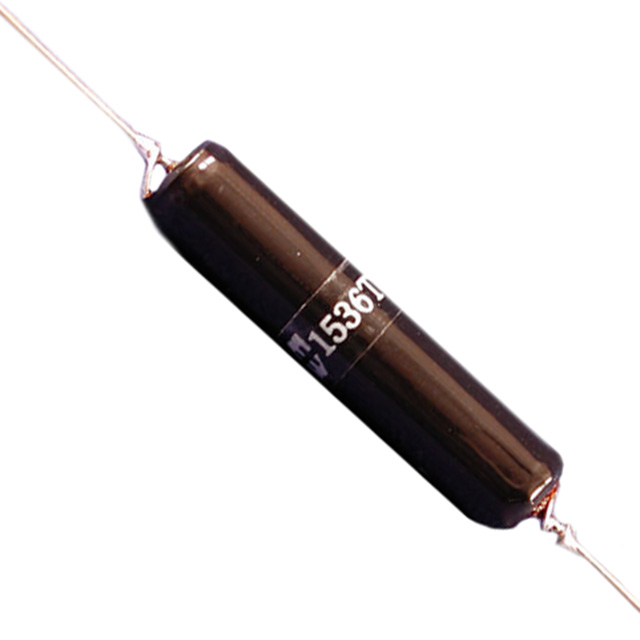

1536 Series

Catalog

FIXED IND 250UH 2.5A 170 MOHM TH

Part	Inductance Frequency - Test	Mounting Type	Current Rating (Amps)	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [x]	Type	Shielding	Inductance	Frequency - Self Resonant	DC Resistance (DCR)	Material - Core	Tolerance	Package / Case	Size / Dimension [custom]	Size / Dimension [custom]
Hammond Manufacturing 1536X	1 kHz	Through Hole	2.5 A	10.92 mm	0.43 in	1.25 in	31.75 mm	Drum Core Wirewound	Unshielded	250 µH	1.5 MHz	170 mOhm	Iron Powder	20 %	Axial
Hammond Manufacturing 1536T	1 kHz	Through Hole	2 A	7.87 mm	0.31 "			Drum Core Wirewound	Unshielded	100 µH	4.1 MHz	216 mOhm	Iron Powder	20 %	Axial	31.75 mm	1.25 in
Hammond Manufacturing 1536F	7.9 MHz	Through Hole	10 A	12.7 mm	0.5 "	1.25 in	31.75 mm	Drum Core Wirewound	Unshielded	8.8 µH	28 MHz	21 mOhm	Iron Powder	20 %	Axial
Hammond Manufacturing 1536P	1 kHz	Through Hole	3 A	7.87 mm	0.31 "			Drum Core Wirewound	Unshielded	40 µH	10.4 MHz	82 mOhm	Iron Powder	20 %	Axial	31.75 mm	1.25 in
Hammond Manufacturing 1536Y	1 kHz	Through Hole	2 A	14.22 mm	0.56 in	1.25 in	31.75 mm	Drum Core Wirewound	Unshielded	500 µH	1.17 MHz	260 mOhm	Iron Powder	20 %	Axial
Hammond Manufacturing 1536L	1 kHz	Through Hole	8 A	7.87 mm	0.31 "	0.91 "	23.11 mm	Drum Core Wirewound	Unshielded	4 µH	24.3 MHz	12 mOhm	Iron Powder	20 %	Axial
Hammond Manufacturing 1536S	1 kHz	Through Hole	5 A	13.46 mm	0.53 "	1.25 in	31.75 mm	Drum Core Wirewound	Unshielded	68 µH	5.7 MHz	54 mOhm	Iron Powder	20 %	Axial
Hammond Manufacturing 1536D	7.9 MHz	Through Hole	20 A	13.46 mm	0.53 "	1.31 in	33.27 mm	Drum Core Wirewound	Unshielded	3.35 µH	45 MHz	10 mOhm	Iron Powder	20 %	Axial
Hammond Manufacturing 1536E	7.9 MHz	Through Hole	15 A	12.7 mm	0.5 "	1.25 in	31.75 mm	Drum Core Wirewound	Unshielded	4.9 µH	42 MHz	16 mOhm	Iron Powder	20 %	Axial
Hammond Manufacturing 1536Z	1 kHz	Through Hole	1 A		0.5 "	1.03 in 26.16 mm		Drum Core Wirewound	Unshielded	1 mH		550 mOhm	Iron Powder	20 %	Axial
