109R0812 Series

DC Fans Axial Fan, 80x80x25mm, 12VDC, 53CFM, 4.44W, 40dBA, Ball, 3 Lead Wire, Tach

Manufacturer: Sanyo Denki America Inc.

Catalog

DC Fans Axial Fan, 80x80x25mm, 12VDC, 53CFM, 4.44W, 40dBA, Ball, 3 Lead Wire, Tach

Catalog

DC Fans Axial Fan, 80x80x25mm, 12VDC, 53CFM, 4.44W, 40dBA, Ball, 3 Lead Wire, Tach

Part	Material - Frame	Material - Blade	Current Rating (Amps)	Voltage Range [Max]	Voltage Range [Min]	Fan Type	Weight	Weight	Noise	Width [y]	Air Flow	Air Flow	Operating Temperature [Min]	Operating Temperature [Max]	Bearing Type	Static Pressure	Static Pressure	Approval Agency	Power (Watts)	Size / Dimension [z]	Size / Dimension [x]	RPM	Voltage - Rated	Termination	Features	Lifetime @ Temp.	Operating Temperature [Max]	Operating Temperature [Min]
Sanyo Denki America Inc. 109R0812F4021	Plastic	Plastic	110 mA	13.8 VDC	6 VDC	Tubeaxial	110.22 g	0.243 lb	26 dB	25 mm	0.91 mł/min	32.5 CFM	-20 ░C	70 °C	Ball	0.114 in H2O	28.4 Pa	CSA TUV UL	1.32 W	80 mm	80 mm	2600 RPM	12 VDC	2 Wire Leads
Sanyo Denki America Inc. 109R0812M401	Plastic	Plastic	0.09 A	13.8 VDC	6 VDC	Tubeaxial	110.22 g	0.243 lb	23 dB(A)	25 mm	0.82 m³/min	29.3 CFM	-20 ░C	70 °C	Ball	0.09 in H2O	22.4 Pa	CSA TUV UL	1.08 W	80 mm	80 mm	2350 RPM	12 VDC	3 Wire Leads	Locked Rotor Protection Speed Sensor (Tach)
Sanyo Denki America Inc. 109R0812H4D01	Plastic	Plastic		13.8 VDC	6 VDC	Tubeaxial	110.22 g	0.243 lb	29 dB(A)	25 mm	1.02 m³/min	36.4 CFM	-20 ░C	70 °C	Ball	0.142 in H2O	35.4 Pa	CSA TUV UL	1.56 W	80 mm	80 mm	2900 RPM	12 VDC	3 Wire Leads	Locked Rotor Sensor
Sanyo Denki America Inc. 109R0812F401	Plastic	Plastic	110 mA	13.8 VDC	6 VDC	Tubeaxial	110.22 g	0.243 lb	26 dB	25 mm	0.91 mł/min	32.5 CFM	-20 ░C	70 °C	Ball	0.114 in H2O	28.4 Pa	CSA TUV UL	1.32 W	80 mm	80 mm	2600 RPM	12 VDC	3 Wire Leads	Locked Rotor Protection Speed Sensor (Tach)
Sanyo Denki America Inc. 109R0812F4011	Plastic	Plastic	110 mA	13.8 VDC	6 VDC	Tubeaxial	110.22 g	0.243 lb	26 dB	25 mm	0.91 mł/min	32.5 CFM	-20 ░C	70 °C	Ball	0.114 in H2O	28.4 Pa	CSA TUV UL	1.32 W	80 mm	80 mm	2600 RPM	12 VDC	3 Wire Leads	Locked Rotor Protection Speed Sensor (Tach)
Sanyo Denki America Inc. 109R0812G4011	Plastic	Plastic	0.37 A	13.2 VDC	10.8 VDC	Tubeaxial	110.22 g	0.243 lb	40 dB(A)	25 mm	1.48 mł/min	53 CFM	-20 ░C	60 °C	Ball	0.323 in H2O	80.4 Pa	CSA TUV UL	4.44 W	80 mm	80 mm	4500 RPM	12 VDC	3 Wire Leads	Locked Rotor Protection Speed Sensor (Tach)	40000 Hrs	60 °C	-4 °F
Sanyo Denki America Inc. 109R0812L4021	Plastic	Plastic	60 mA	13.8 VDC	7 V	Tubeaxial	110.22 g	0.243 lb	20 dB	25 mm	0.644 m³/min	23 CFM	-20 ░C	70 °C	Ball	0.059 in H2O	14.7 Pa	CSA TUV UL	720 mW	80 mm	80 mm	1850 RPM	12 VDC	2 Wire Leads
Sanyo Denki America Inc. 109R0812H4021	Plastic	Plastic		13.8 VDC	6 VDC	Tubeaxial	110.22 g	0.243 lb	29 dB(A)	25 mm	1.02 m³/min	36.4 CFM	-20 ░C	70 °C	Ball	0.142 in H2O	35.4 Pa	CSA TUV UL	1.56 W	80 mm	80 mm	2900 RPM	12 VDC	2 Wire Leads
Sanyo Denki America Inc. 109R0812H402	Plastic	Plastic		13.8 VDC	6 VDC	Tubeaxial	110.22 g	0.243 lb	29 dB(A)	25 mm	1.02 m³/min	36.4 CFM	-20 ░C	70 °C	Ball	0.142 in H2O	35.4 Pa	CSA TUV UL	1.56 W	80 mm	80 mm	2900 RPM	12 VDC	2 Wire Leads

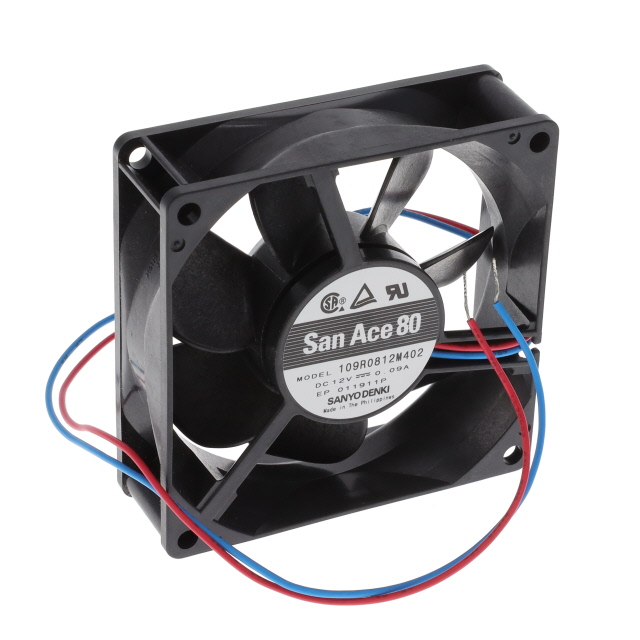

Sanyo Denki America Inc. 109R0812M402	Plastic	Plastic	0.09 A	13.8 VDC	6 VDC	Tubeaxial	110.22 g	0.243 lb	23 dB(A)	25 mm	0.82 m³/min	29.3 CFM	-20 ░C	70 °C	Ball	0.09 in H2O	22.4 Pa	CSA TUV UL	1.08 W	80 mm	80 mm	2350 RPM	12 VDC	2 Wire Leads
