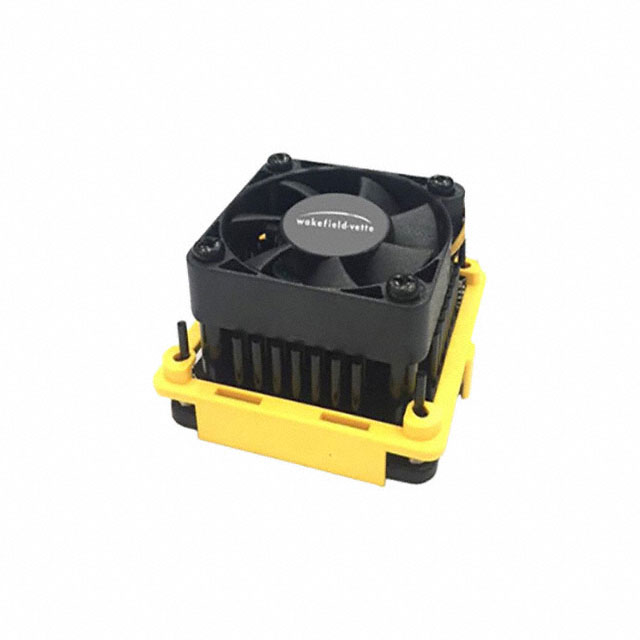

HSF-50 Series

Manufacturer: Wakefield Thermal Solutions

Catalog

FANSINK 5VDC 50X50X29.5MM

Part	Length [x]	Length [x]	Package Cooled	Material Finish	Shape	Width [x]	Width [x]	Attachment Method	Type	Fin Height [z]	Fin Height [z]	Thermal Resistance @ Natural	Material	Fin Height	Fin Height
Wakefield Thermal Solutions HSF-50-30-B-F	50 mm	1.969 in	BGA	Black Anodized	Fins Square	50 mm	1.969 in	Clip	Top Mount	27.5 mm	1.083 in	0.77 °C/W	Aluminum Alloy
Wakefield Thermal Solutions HSF-50-25-B-F	50 mm	1.969 in	BGA	Black Anodized	Fins Square	50 mm	1.969 in	Clip	Top Mount	21.5 mm	0.846 in	0.91 °C/W	Aluminum Alloy
Wakefield Thermal Solutions HSF-50-40-Y-F	50 mm	1.969 in	BGA	Black Anodized	Fins Square	50 mm	1.969 in	Clip	Top Mount	39.5 mm	1.555 in	0.67 °C/W	Aluminum Alloy
Wakefield Thermal Solutions HSF-50-22-Y-F	50 mm	1.969 in	BGA	Black Anodized	Fins Square	50 mm	1.969 in	Clip	Top Mount	21.5 mm	0.846 in	1.06 °C/W	Aluminum Alloy
Wakefield Thermal Solutions HSF-50-30-B-F	50 mm	1.969 in	BGA	Black Anodized	Fins Square	50 mm	1.969 in	Clip	Top Mount	27.5 mm	1.083 in	0.77 °C/W	Aluminum Alloy
Wakefield Thermal Solutions HSF-50-19-B-F	50 mm	1.969 in	BGA	Black Anodized	Fins Square	50 mm	1.969 in	Clip	Top Mount	39.5 mm	1.555 in	1.31 °C/W	Aluminum Alloy
Wakefield Thermal Solutions HSF-50-22-B-F	50 mm	1.969 in	BGA	Black Anodized	Fins Square	50 mm	1.969 in	Clip	Top Mount			1.06 °C/W	Aluminum Alloy	18.5 mm	0.728 in
Wakefield Thermal Solutions HSF-50-28-B-F	50 mm	1.969 in	BGA	Black Anodized	Fins Square	50 mm	1.969 in	Clip	Top Mount	27.5 mm	1.083 in	0.82 °C/W	Aluminum Alloy
Wakefield Thermal Solutions HSF-50-19-B-F	50 mm	1.969 in	BGA	Black Anodized	Fins Square	50 mm	1.969 in	Clip	Top Mount	39.5 mm	1.555 in	1.31 °C/W	Aluminum Alloy
Wakefield Thermal Solutions HSF-50-25-B-F	50 mm	1.969 in	BGA	Black Anodized	Fins Square	50 mm	1.969 in	Clip	Top Mount	21.5 mm	0.846 in	0.91 °C/W	Aluminum Alloy
