AM3TW Series

Manufacturer: aimtec

Catalog

DC DC CONVERTER 9V 3W

Part	Type	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Input (Min) [Min]	Power (Watts)	Mounting Type	Number of Outputs	Applications	Voltage - Output 1	Voltage - Input (Max) [Max]	Voltage - Isolation	Current - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Package / Case	Voltage - Output 2	Current - Output (Max)	Current - Output (Max)	Efficiency	Supplier Device Package
aimtec AM3TW-4809SZ	Isolated Module	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	18 V	3 W	Through Hole	1	ITE (Commercial)	9 V	72 V	1.5 kV	333 mA	85 °C	-40 C	24-DIP Module

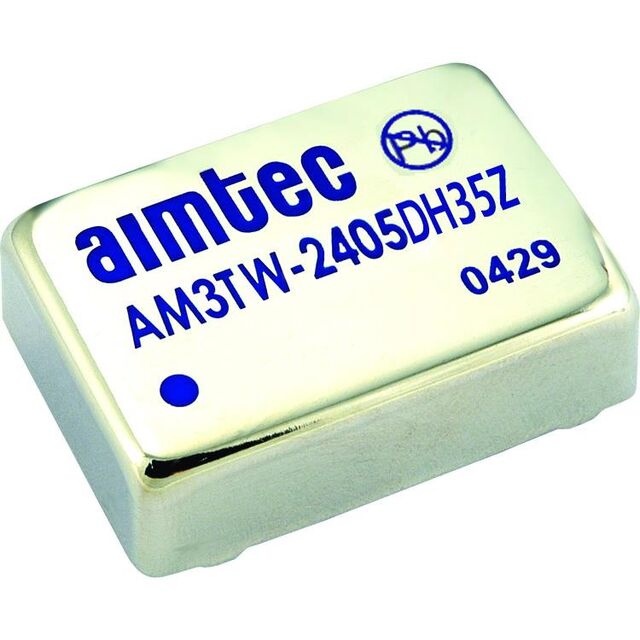

aimtec AM3TW-2415DZ	Isolated Module	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	9 V	3 W	Through Hole	2	ITE (Commercial)	15 V	36 V	1.5 kV		85 °C	-40 C	24-DIP Module	12 Leads	-15 V	100 mA	100 mA	80 %
aimtec AM3TW-2412SH35Z	Isolated Module	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	9 V	3 W	Through Hole	1	ITE (Commercial)	12 V	36 V	3.5 kV	250 mA	85 °C	-40 C	24-DIP Module 14 Leads					81 %
aimtec AM3TW-4805S-NZ	Isolated Module	0.8 "	1.25 in	10.2 mm	31.8 mm	20.3 mm	0.4 "	18 V	3 W	Through Hole	1	ITE (Commercial)	5 V	75 V	1.5 kV	600 mA	85 °C	-40 C	24-DIP Module					79 %
aimtec AM3TW-2412S-VZ	Isolated Module	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	9 V	3 W	Through Hole	1	ITE (Commercial)	12 V	36 V	1.5 kV	250 mA	85 °C	-40 C	24-DIP Module	12 Leads				73 %

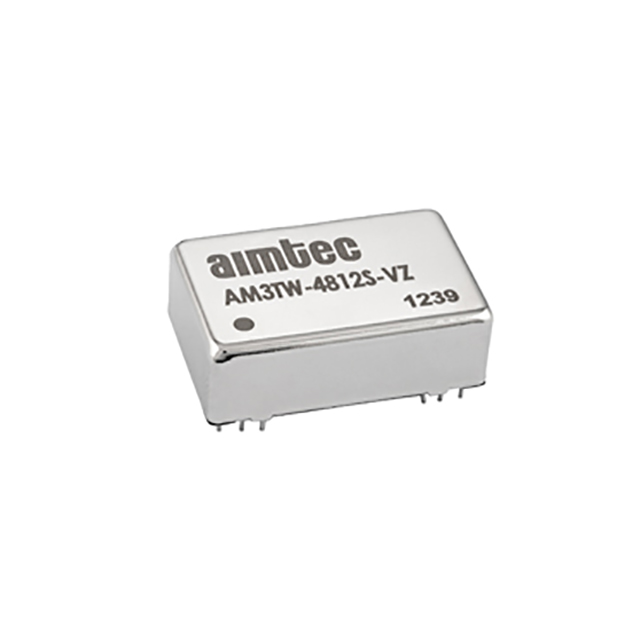

aimtec AM3TW-2412SH35-VZ	Isolated Module	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	9 V	3 W	Through Hole	1	ITE (Commercial)	12 V	36 V	1.5 kV	250 mA	85 °C	-40 °C	24-DIP Module 15 Leads					73 %	24-DIP
