MS151P Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K

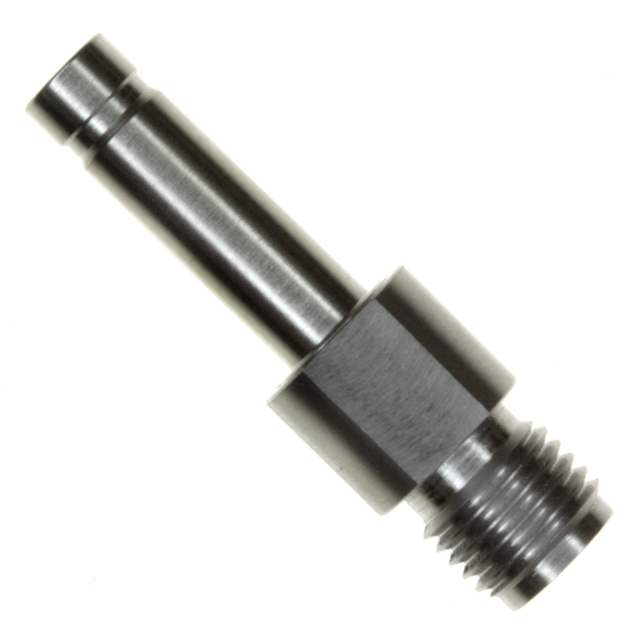

CONN ADAPT COAX PLUG TO SMA JACK
| Part | Center Contact Material | Body Material | Dielectric Material | Body Finish | Mating Cycles | Operating Temperature [Min] | Operating Temperature [Max] | Convert From (Adapter End) [diameter] | Convert From (Adapter End) | Style | Frequency - Max [Max] | Adapter Type | Center Contact Plating | Mounting Type | Conversion Type | Fastening Type | Adapter Series | Impedance | Convert To (Adapter End) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | Beryllium Copper | Phosphor Bronze Stainless Steel | Polytetrafluoroethylene (PTFE) | Nickel; Passivated | 1000 | -30 ░C | 70 °C | 4.15 mm | Coaxial Switch Male Pin | Straight | 3 GHz | Plug to Jack | Gold | Free Hanging (In-Line) | Between Series | Push-Pull Threaded | SMA to Coaxial Switch | 50 Ohms | SMA Jack Female Socket |
 Hirose Electric Co Ltd | Polytetrafluoroethylene (PTFE) | 1000 | -30 ░C | 70 °C | 4.15 mm | Coaxial Switch Male Pin | Straight | 6000 MHz | Plug to Jack | Gold | Free Hanging (In-Line) | Between Series | Push-Pull Threaded | SMA to Coaxial Switch | 50 Ohms | SMA Jack Female Socket |
