UUD Series

Manufacturer: Nichicon

Catalog

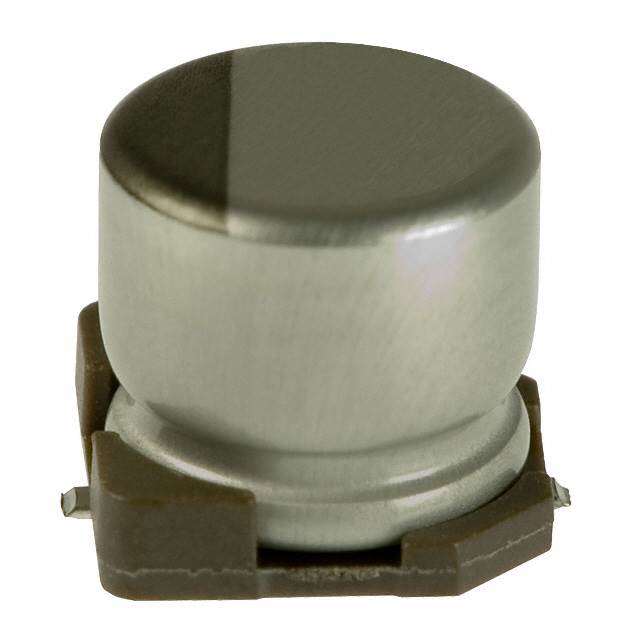

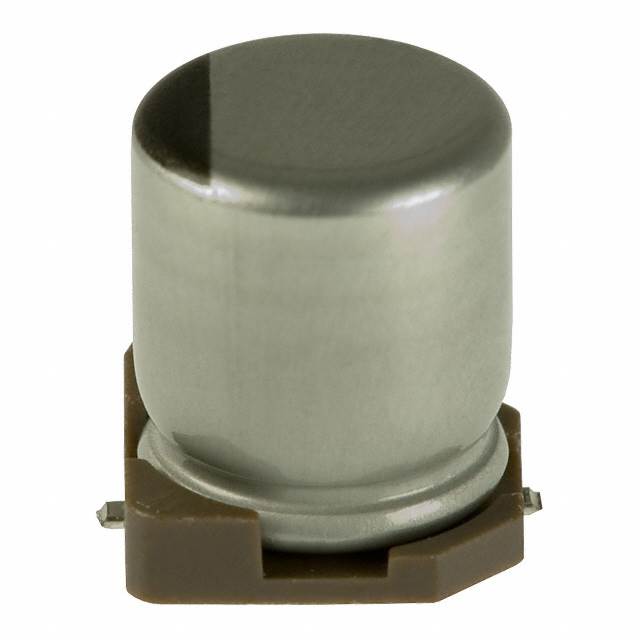

SMD ALUMINUM ELECTROLYTIC CAPACITOR, RADIAL CAN - SMD, 100 ΜF, 35 V, 5000 HOURS @ 105°C, POLAR

Part	Mounting Type	Capacitance	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [diameter]	Size / Dimension [diameter]	Tolerance	Applications	Impedance	Polarization	Voltage - Rated	Package / Case	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Lifetime @ Temp.	Ripple Current @ Low Frequency	Ripple Current @ High Frequency	Ratings	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Nichicon UUD1V101MNL1GS	Surface Mount	100 µF	-55 C	105 ░C	0.315 in	8 mm	20 %	Automotive	170 mOhms	Polar	35 V	Radial Can - SMD	8.3 mm	8.3 mm	0.327 in	0.327 in	5000 Hrs	225 mA	450 mA	AEC-Q200	0.413 "	10.5 mm
Nichicon UUD0J101MCL1GS	Surface Mount	100 µF	-55 C	105 ░C	0.248 "	6.3 mm	20 %	Automotive	440 mOhms	Polar	6.3 VDC	Radial Can - SMD	6.6 mm	6.6 mm	0.26 in	0.26 in	2000 Hrs	115 mA	230 mA	AEC-Q200			6.1 mm	0.24 "
Nichicon UUD1A221MCL1GS	Surface Mount	220 µF	-55 C	105 ░C	0.248 "	6.3 mm	20 %	Automotive	0.34 Ohms	Polar	10 V	Radial Can - SMD	6.6 mm	6.6 mm	0.26 in	0.26 in	2000 Hrs	140 mA	280 mA	AEC-Q200	0.315 in	8 mm
Nichicon UUD1H150MCL1GS	Surface Mount	15 µF	-55 C	105 ░C	0.248 "	6.3 mm	20 %	Automotive	880 mOhms	Polar	50 VDC	Radial Can - SMD	6.6 mm	6.6 mm	0.26 in	0.26 in	2000 Hrs	82.5 mA	165 mA	AEC-Q200			6.1 mm	0.24 "
Nichicon UUD1H330MCL1GS	Surface Mount	33 ÁF	-55 C	105 ░C	0.248 "	6.3 mm	20 %	Automotive	680 mOhms	Polar	50 VDC	Radial Can - SMD	6.6 mm	6.6 mm	0.26 in	0.26 in	2000 Hrs	92.5 mA	185 mA	AEC-Q200	0.315 in	8 mm
Nichicon UUD1A151MCL1GS	Surface Mount	150 µF	-55 C	105 ░C	0.248 "	6.3 mm	20 %	Automotive	440 mOhms	Polar	10 V	Radial Can - SMD	6.6 mm	6.6 mm	0.26 in	0.26 in	2000 Hrs	115 mA	230 mA	AEC-Q200			6.1 mm	0.24 "
Nichicon UUD1V470MCQ1GS
Nichicon UUD1C471MNL1MS
Nichicon UUD1A101MCL1GS	Surface Mount	100 µF	-55 C	105 ░C	0.248 "	6.3 mm	20 %	Automotive	440 mOhms	Polar	10 V	Radial Can - SMD	6.6 mm	6.6 mm	0.26 in	0.26 in	2000 Hrs	115 mA	230 mA	AEC-Q200			6.1 mm	0.24 "
