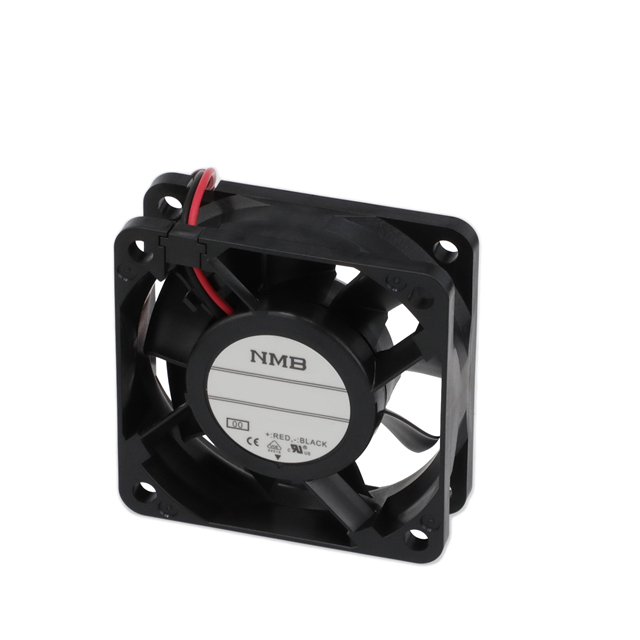

06020SA Series

Catalog

AC AXIAL FAN, 60 MM, 20 MM, BALL BEARING

Part	Material - Frame	Lifetime @ Temp.	Material - Blade	Voltage Range [Max]	Voltage Range [Min]	Current Rating (Amps)	Noise	Size / Dimension [z]	Size / Dimension [x]	Termination	RPM	Fan Type	Static Pressure	Static Pressure	Bearing Type	Width [y]	Voltage - Rated	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Weight	Weight	Features	Air Flow	Air Flow
NMB TECHNOLOGIES 06020SA-12J-AA-00	Plastic	40000 Hrs	Plastic	13.8 VDC	6 VDC	50 mA	21.5 dB(A)	60 mm	60 mm	2 Wire Leads	2800 RPM	Tubeaxial	0.09 in H2O	22.4 Pa	Ball	20 mm	12 VDC	70 °C	-10 °C	0.58 W	0.123 lb	55.79 g
NMB TECHNOLOGIES 06020SA-24J-AA-00	Plastic		Plastic					60 mm	60 mm	2 Wire Leads		Tubeaxial			Ball	20 mm	24 VDC						Auto Restart
NMB TECHNOLOGIES 06020SA-12N-EA-00	Plastic	40000 Hrs	Plastic	13.8 VDC	6 VDC	0.09 A	30.5 dB	60 mm	60 mm	2 Wire Leads	4400 RPM	Tubeaxial	0.21 in H2O	52.3 Pa	Ball	20 mm	12 VDC	70 °C	-10 °C	1.08 W			Auto Restart	20.5 CFM	0.574 m³/min
NMB TECHNOLOGIES 06020SA-12N-AL-00	Plastic	40000 Hrs	Plastic	13.8 VDC	6 VDC	0.09 A	30.5 dB	60 mm	60 mm	3 Wire Leads	4400 RPM	Tubeaxial	0.21 in H2O	52.3 Pa	Ball	20 mm	12 VDC	70 °C	-10 °C	1.08 W	0.123 lb	55.79 g	Locked Rotor Sensor	20.5 CFM	0.574 m³/min
NMB TECHNOLOGIES 06020SA-24N-ET-00	Plastic	40000 Hrs	Plastic	27.6 VDC	9 V	70 mA	30.5 dB	60 mm	60 mm	3 Wire Leads	4400 RPM	Tubeaxial	0.2 in H2O	49.8 Pa	Ball	20 mm	24 VDC	70 °C	-10 °C	1.68 W			Auto Restart Speed Sensor (Tach)	20.5 CFM	0.574 m³/min
NMB TECHNOLOGIES 06020SA-24T-AL-00	Plastic		Plastic					60 mm	60 mm	3 Wire Leads		Tubeaxial			Ball	20 mm	24 VDC	70 °C	-10 °C				Auto Restart Locked Rotor Sensor
NMB TECHNOLOGIES 06020SA-24N-AT-00	Plastic	40000 Hrs	Plastic	27.6 VDC	9 V	70 mA	30.5 dB	60 mm	60 mm	3 Wire Leads	4400 RPM	Tubeaxial	0.2 in H2O	49.8 Pa	Ball	20 mm	24 VDC	70 °C	-10 °C	1.68 W			Auto Restart Speed Sensor (Tach)	20.5 CFM	0.574 m³/min
NMB TECHNOLOGIES 06020SA-12T-ET-00	Plastic	40000 Hrs	Plastic					60 mm	60 mm	3 Wire Leads		Tubeaxial			Ball	20 mm	12 VDC	70 °C	-10 °C				Auto Restart Speed Sensor (Tach)
NMB TECHNOLOGIES 06020SA-12L-EA-00	Plastic	40000 Hrs	Plastic	13.8 VDC	6 VDC	60 mA	26 dB	60 mm	60 mm	2 Wire Leads	3600 RPM	Tubeaxial	0.14 in H2O	34.9 Pa	Ball	20 mm	12 VDC	70 °C	-10 °C	720 mW			Auto Restart	16.6 CFM	0.465 mł/min
NMB TECHNOLOGIES 06020SA-12T-AA-00	Plastic	40000 Hrs	Plastic	13.8 VDC	6 VDC	0.24 A	42.5 dB	60 mm	60 mm	2 Wire Leads	6400 RPM	Tubeaxial	0.44 in H2O	109.6 Pa	Ball	20 mm	12 VDC	70 °C	-10 °C	2.88 W			Auto Restart	30.4 CFM	0.851 mł/min
