C0760 Series
Manufacturer: Prysmian Group
Beta
⌘K

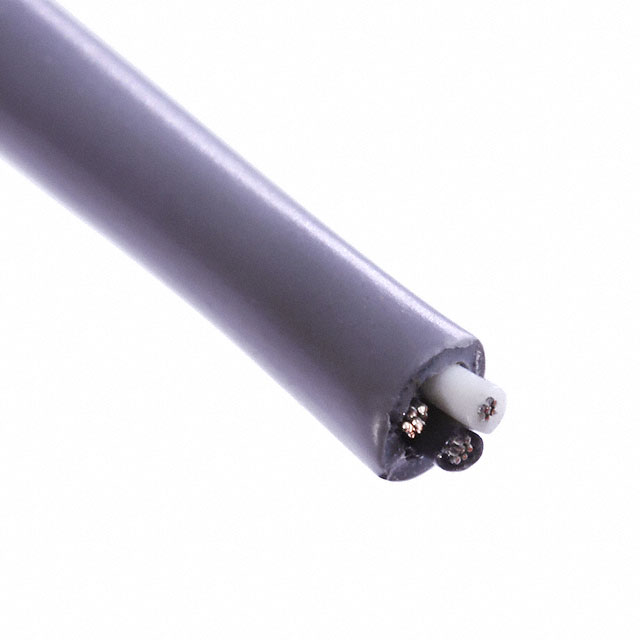

CABLE 2COND 22AWG GRAY SHLD 500'
| Part | Shield Material | Shield Coverage | Wire Gauge | Conductor Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Voltage | Jacket Color | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Length | Length | Conductor Insulation | Jacket (Insulation) Material | Operating Temperature [Max] | Operating Temperature [Min] | Number of Conductors | Cable Type | Usage | Features | Shield Type | Conductor Strand [custom] | Conductor Strand [custom] | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Prysmian Group | Flexfoil® | 100 % | 22 AWG | Copper Annealed Tinned | 0.169 in | 4.29 mm | 300 VDC | Gray | 0.813 mm | 0.032 in | 152.4 m | 500 ft | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | 80 °C | -20 ░C | 2 | Multi-Conductor | Computer | Drain Wire | Foil | 30 AWG | 7 | ASTM B-33 |
