SFH11 Series

Manufacturer: Sullins Connector Solutions

Catalog

Catalog

CONN HDR 14POS 0.1 GOLD PCB

...

Part	Insulation Material	Contact Material	Contact Finish Thickness - Post	Contact Shape	Fastening Type	Contact Length - Post [x]	Contact Length - Post [x]	Current Rating (Amps)	Mounting Type	Number of Positions	Features	Number of Positions Loaded	Contact Finish Thickness - Mating	Material Flammability Rating	Insulation Color	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Connector Type	Termination	Contact Finish - Mating	Insulation Height	Insulation Height	Number of Rows [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height [custom]	Insulation Height [custom]

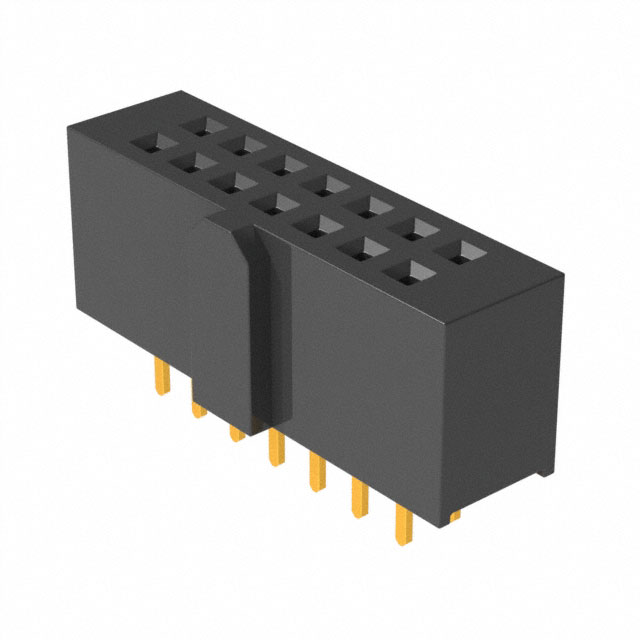

Sullins Connector Solutions SFH11-NPPC-D07-ST-BK	Nylon Polyamide (PA)	Phosphor Bronze	Flash	Square	Push-Pull	0.126 "	3.2 mm	3 A	Through Hole	14	Polarizing Key	All	Flash	UL94 V-0	Black	Gold	0.1 "	2.54 mm	0.1 in	2.54 mm	Header	Solder	Gold	0.335 "	8.51 mm	2	-40 C	105 ░C	Female Socket

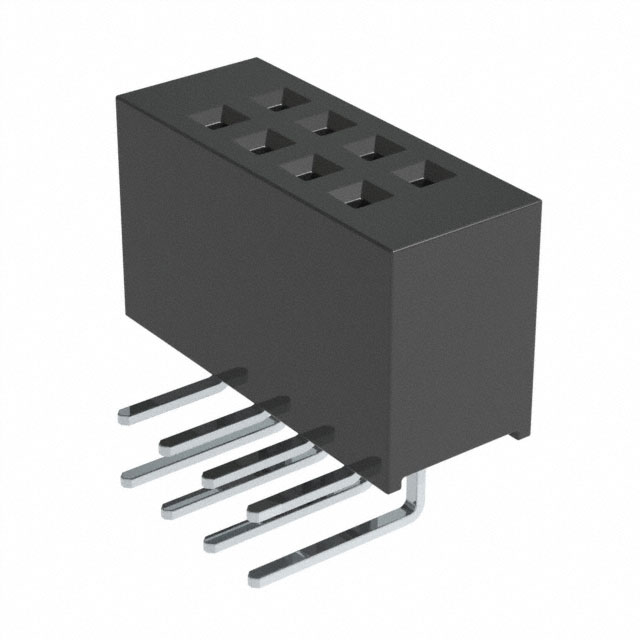

Sullins Connector Solutions SFH11-PBEC-D04-RA-BK-M181	Polybutylene Terephthalate (PBT)	Brass		Square	Push-Pull	0.106 in	2.69 mm	3 A	Right Angle Through Hole	8		All		UL94 V-0	Black	Tin	0.1 "	2.54 mm	0.1 in	2.54 mm	Header	Solder				2	-40 C	105 ░C	Female Socket	2.54 µm	100 µin	100 çin	2.54 çm	0.236 "	6 mm

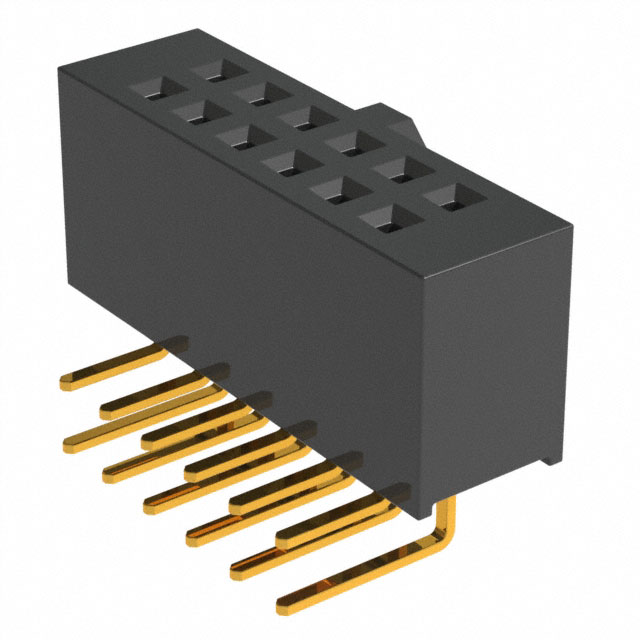

Sullins Connector Solutions SFH11-PBPC-D06-RA-BK	Polybutylene Terephthalate (PBT)	Brass	Flash	Square	Push-Pull	0.106 in	2.69 mm	3 A	Right Angle Through Hole	12	Polarizing Key	All	Flash	UL94 V-0	Black	Gold	0.1 "	2.54 mm	0.1 in	2.54 mm	Header	Solder	Gold			2	-40 C	105 ░C	Female Socket					0.236 "	6 mm
Sullins Connector Solutions SFH11-PPPC-D30-RA-BK	Polybutylene Terephthalate (PBT)	Phosphor Bronze	Flash	Square	Push-Pull	0.106 in	2.69 mm	3 A	Right Angle Through Hole	60	Polarizing Key	All	Flash	UL94 V-0	Black	Gold	0.1 "	2.54 mm	0.1 in	2.54 mm	Header	Solder	Gold			2	-40 C	105 ░C	Female Socket					0.236 "	6 mm

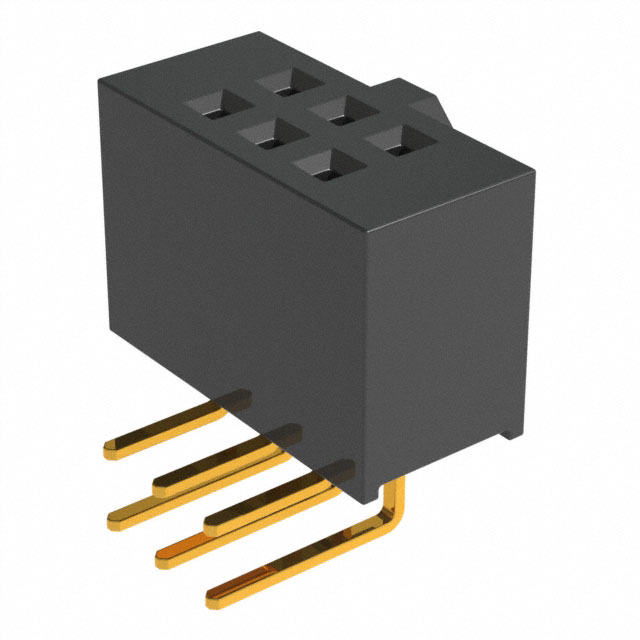

Sullins Connector Solutions SFH11-NBPC-D03-RA-BK	Nylon Polyamide (PA)	Brass	Flash	Square	Push-Pull	0.106 in	2.69 mm	3 A	Right Angle Through Hole	6	Polarizing Key	All	Flash	UL94 V-0	Black	Gold	0.1 "	2.54 mm	0.1 in	2.54 mm	Header	Solder	Gold			2	-40 C	105 ░C	Female Socket					0.236 "	6 mm
Sullins Connector Solutions SFH11-NPPC-D25-RA-BK	Nylon Polyamide (PA)	Phosphor Bronze	Flash	Square	Push-Pull	0.106 in	2.69 mm	3 A	Right Angle Through Hole	50	Polarizing Key	All	Flash	UL94 V-0	Black	Gold	0.1 "	2.54 mm	0.1 in	2.54 mm	Header	Solder	Gold			2	-40 C	105 ░C	Female Socket					0.236 "	6 mm
Sullins Connector Solutions SFH11-NBPC-D04-ST-BK	Nylon Polyamide (PA)	Brass	Flash	Square	Push-Pull	0.126 "	3.2 mm	3 A	Through Hole	8	Polarizing Key	All	Flash	UL94 V-0	Black	Gold	0.1 "	2.54 mm	0.1 in	2.54 mm	Header	Solder	Gold	0.335 "	8.51 mm	2	-40 C	105 ░C	Female Socket
Sullins Connector Solutions SFH11-PPPC-D13-RA-BK	Polybutylene Terephthalate (PBT)	Phosphor Bronze	Flash	Square	Push-Pull	0.106 in	2.69 mm	3 A	Right Angle Through Hole	26	Polarizing Key	All	Flash	UL94 V-0	Black	Gold	0.1 "	2.54 mm	0.1 in	2.54 mm	Header	Solder	Gold			2	-40 C	105 ░C	Female Socket					0.236 "	6 mm

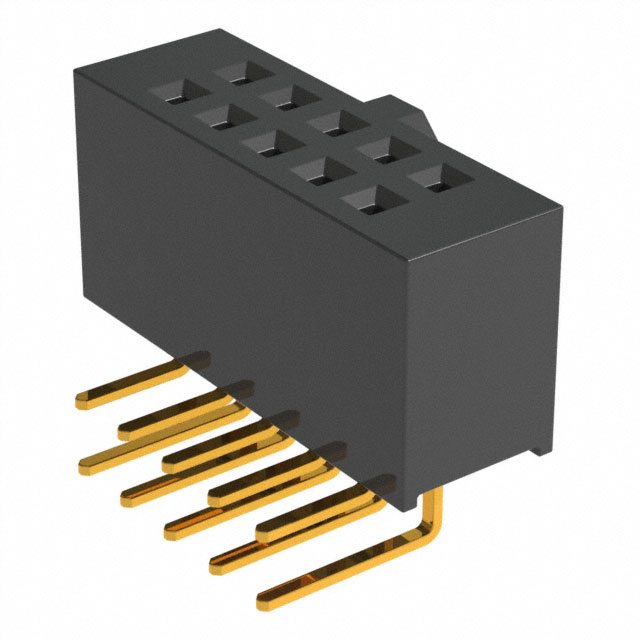

Sullins Connector Solutions SFH11-PPPC-D05-RA-BK	Polybutylene Terephthalate (PBT)	Phosphor Bronze	Flash	Square	Push-Pull	0.106 in	2.69 mm	3 A	Right Angle Through Hole	10	Polarizing Key	All	Flash	UL94 V-0	Black	Gold	0.1 "	2.54 mm	0.1 in	2.54 mm	Header	Solder	Gold			2	-40 C	105 ░C	Female Socket					0.236 "	6 mm
Sullins Connector Solutions SFH11-NPPC-D32-RA-BK	Nylon Polyamide (PA)	Phosphor Bronze	Flash	Square	Push-Pull	0.106 in	2.69 mm	3 A	Right Angle Through Hole	64	Polarizing Key	All	Flash	UL94 V-0	Black	Gold	0.1 "	2.54 mm	0.1 in	2.54 mm	Header	Solder	Gold			2	-40 C	105 ░C	Female Socket					0.236 "	6 mm
