TDA7498L Series

80 W + 80 W dual BTL class-D audio amplifier

Catalog

80 W + 80 W dual BTL class-D audio amplifier

Part	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Package / Case	Package / Case	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Output Type	Max Output Power x Channels @ Load	Features	Type	Supplier Device Package
STMicroelectronics TDA7498LTR	Surface Mount	36 V	14 V	7.5 mm	36-PowerFSOP	0.295 "	85 C	-40 ¯C	2-Channel (Stereo)	2 80 W	Differential Inputs Mute Short-Circuit and Thermal Protection Standby	Class D	PowerSSO-36 EPU

Catalog

80 W + 80 W dual BTL class-D audio amplifier

Description

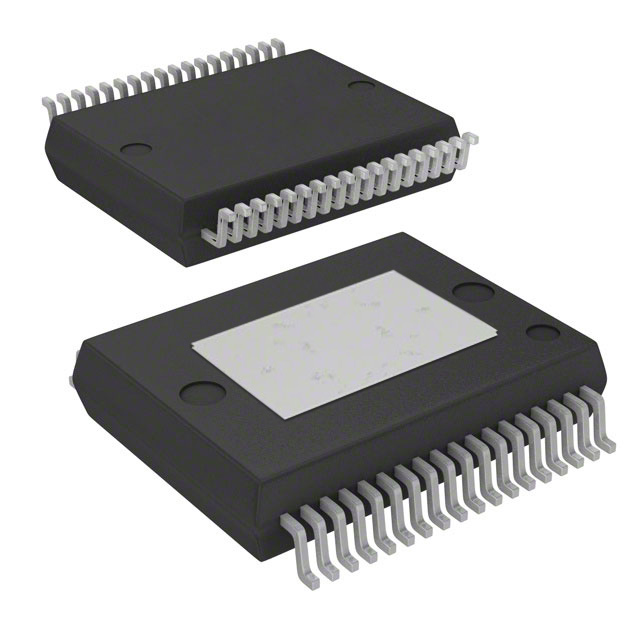

The TDA7498L is a dual BTL class-D audio amplifier with single power supply designed for home systems and active speaker applications. It comes in a 36-pin PowerSSO package with exposed pad up (EPU) to facilitate mounting a separate heatsink.
