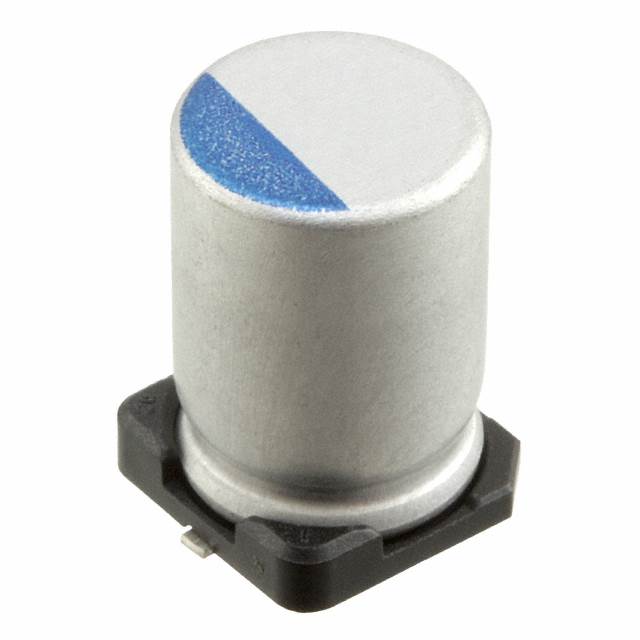

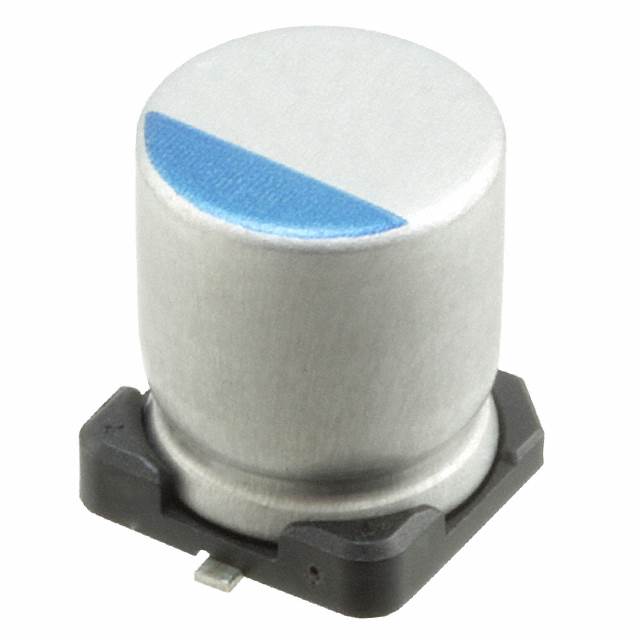

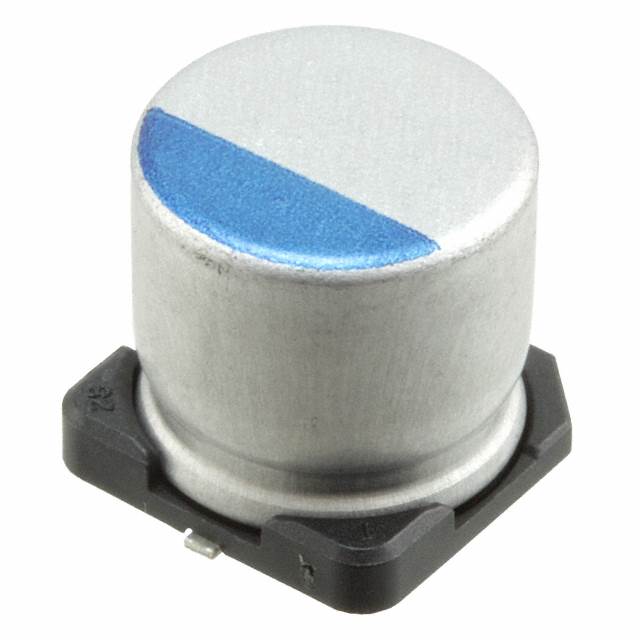

PCV Series

Manufacturer: Nichicon

Catalog

POLYMER ALUMINIUM ELECTROLYTIC CAPACITOR, 39 ΜF, RADIAL CAN - SMD, 0.034 OHM, ± 20%

Part	Operating Temperature [Min]	Operating Temperature [Max]	Capacitance	Voltage - Rated	Applications	Tolerance	Type	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Package / Case	Ratings	Ripple Current @ High Frequency	Size / Dimension [diameter]	Size / Dimension [diameter]	Mounting Type	ESR (Equivalent Series Resistance)	Lifetime @ Temp.	Height - Seated (Max) [Max]	Height - Seated (Max)	Height - Seated (Max) [Max]
Nichicon PCV1H390MCL1GS	-55 C	105 ░C	39 µF	50 VDC	General Purpose	20 %	Polymer	8.3 mm	8.3 mm	0.327 in	0.327 in	Radial Can - SMD	AEC-Q200	2 A	0.315 in	8 mm	Surface Mount	34 mOhm	3000 Hrs	0.472 in	12 mm
Nichicon PCV1V560MCL1GS	-55 C	105 ░C	56 µF	35 V	General Purpose	20 %	Polymer	8.3 mm	8.3 mm	0.327 in	0.327 in	Radial Can - SMD	AEC-Q200		0.315 in	8 mm	Surface Mount	31 mOhm	3000 Hrs	0.394 in		10 mm
Nichicon PCV1K150MCL1GS	-55 C	105 ░C	15 µF	80 V	General Purpose	20 %	Polymer	10.3 mm	10.3 mm	0.406 "	0.406 in	Radial Can - SMD	AEC-Q200		0.394 in	10 mm	Surface Mount	39 mOhms	3000 Hrs	0.394 in		10 mm
Nichicon PCV1C221MCL6GS	-55 C	105 ░C	220 µF	16 V	General Purpose	20 %	Polymer	8.3 mm	8.3 mm	0.327 in	0.327 in	Radial Can - SMD	AEC-Q200	2 A	0.315 in	8 mm	Surface Mount	27 mOhms	3000 Hrs	0.394 in		10 mm
Nichicon PCV1H330MCL6GS	-55 C	105 ░C	33 ÁF	50 VDC	General Purpose	20 %	Polymer	8.3 mm	8.3 mm	0.327 in	0.327 in	Radial Can - SMD	AEC-Q200	1.7 A	0.315 in	8 mm	Surface Mount	36 mOhms	3000 Hrs	0.394 in		10 mm
Nichicon PCV1E151MCL7GS	-55 C	105 ░C	150 µF	25 VDC	General Purpose	20 %	Polymer	8.3 mm	8.3 mm	0.327 in	0.327 in	Radial Can - SMD	AEC-Q200	3.6 A	0.315 in	8 mm	Surface Mount	23 mOhm	3000 Hrs	0.394 in		10 mm
Nichicon PCV1J470MCL1GS	-55 C	105 ░C	47 µF	63 V	General Purpose	20 %	Polymer	10.3 mm	10.3 mm	0.406 "	0.406 in	Radial Can - SMD	AEC-Q200	2.5 A	0.394 in	10 mm	Surface Mount	30 mOhms	3000 Hrs	0.5 in		12.7 mm
