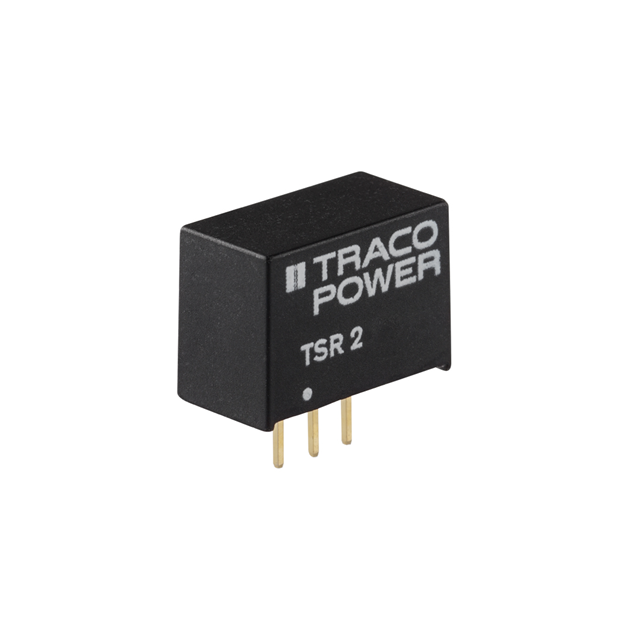

TSR 2 Series

Catalog

DC DC CONVERTER 1.8V 3.6W

Part	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Min) [Min]	Mounting Type	Package / Case	Voltage - Input (Max) [Max]	Efficiency	Number of Outputs	Current - Output (Max) [Max]	Type	Voltage - Output 1	Power (Watts)	Features	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]

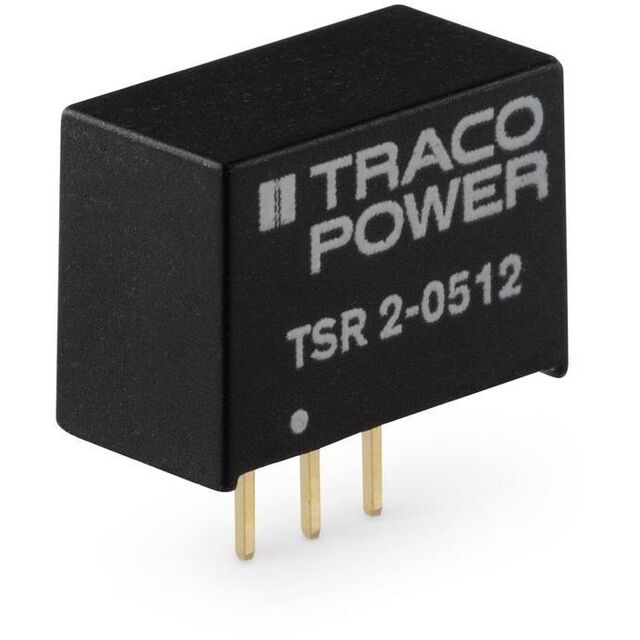

Traco Power TSR 2-0518	ITE (Commercial)	-40 °C	85 °C	3 V	Through Hole	3-SIP Module	5.5 V	92 %	1	2 A	Linear Regulator Replacement	1.8 V	3.6 W	OCP SCP	0.3 "	0.4 "	7.5 mm	10.1 mm	14 mm	0.55 in
Traco Power TSR 2-2412	ITE (Commercial)	-40 °C	85 °C	4.6 V	Through Hole	3-SIP Module	36 V	84 %	1	2 A	Linear Regulator Replacement	1.2 V	2.4 W	OCP SCP	0.3 "	0.4 "	7.5 mm	10.1 mm	14 mm	0.55 in
Traco Power TSR 2-24120	ITE (Commercial)	-40 °C	85 °C	15 V	Through Hole	3-SIP Module	36 V	95 %	1	2 A	Linear Regulator Replacement	12 V	24 W	OCP SCP	0.3 "	0.4 "	7.5 mm	10.1 mm	14 mm	0.55 in
Traco Power TSR 2-2415	ITE (Commercial)	-40 °C	85 °C	4.6 V	Through Hole	3-SIP Module	36 V	86 %	1	2 A	Linear Regulator Replacement	1.5 V	3 W	OCP SCP	0.3 "	0.4 "	7.5 mm	10.1 mm	14 mm	0.55 in
Traco Power TSR 2-24150	ITE (Commercial)	-40 °C	85 °C	18 V	Through Hole	3-SIP Module	36 V	96 %	1	2 A	Linear Regulator Replacement	15 V	30 Watts	OCP SCP	0.3 "	0.4 "	7.5 mm	10.1 mm	14 mm	0.55 in
Traco Power TSR 2-0515	ITE (Commercial)	-40 °C	85 °C	3 V	Through Hole	3-SIP Module	5.5 V	91 %	1	2 A	Linear Regulator Replacement	1.5 V	3 W	OCP SCP	0.3 "	0.4 "	7.5 mm	10.1 mm	14 mm	0.55 in
