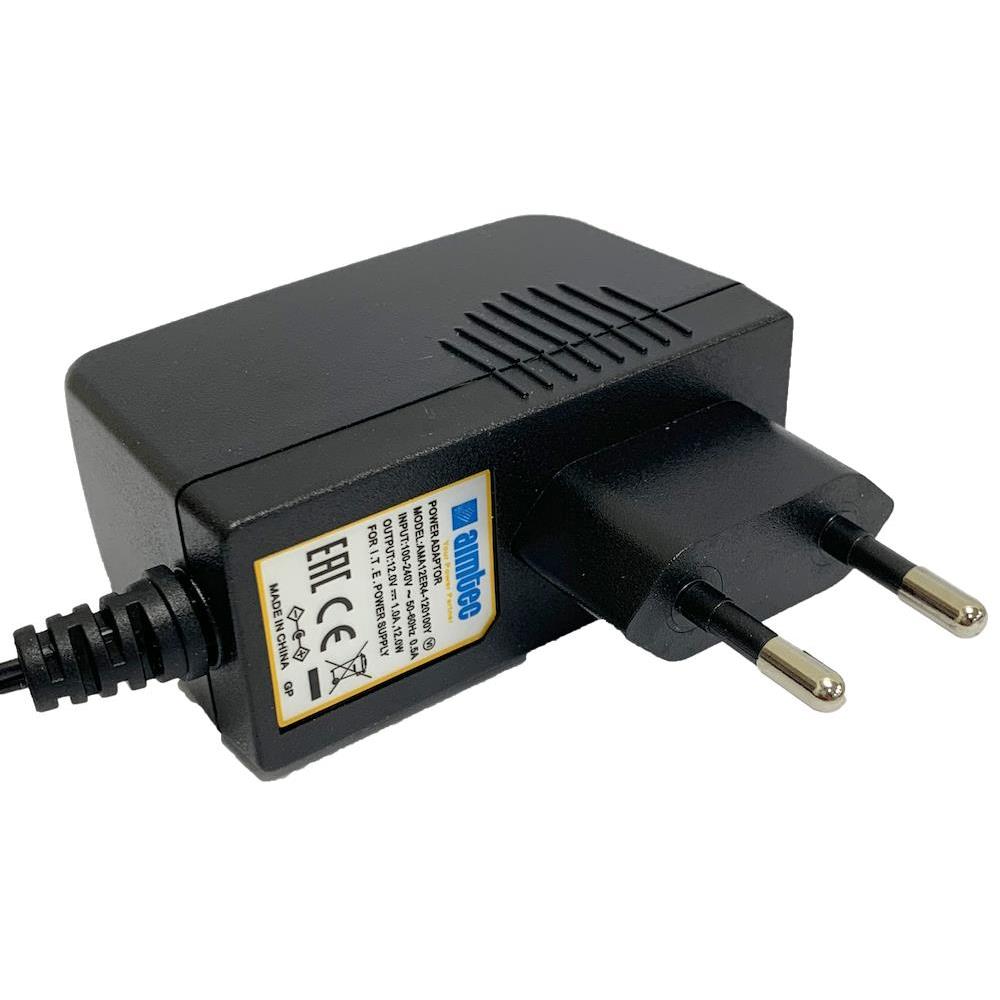

AMA12 Series

Manufacturer: aimtec

Catalog

AC/DC WALL MOUNT ADAPTER 5V 10W

Part	Weight [custom]	Weight [custom]	Approval Agency	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Region Utilized	Current - Output (Max) [Max]	Standard Number	Input Type	Voltage - Input [Max]	Voltage - Input [Min]	Output Connector	Output Connector [custom]	Output Connector [x]	Output Connector [custom]	Operating Temperature [Max]	Form	Cord Length	Cord Length	Efficiency	Voltage - Output	Polarization	Applications	No Load Power Consumption	Input Connector	Power (Watts)	Output Connector [diameter]
aimtec AMA12ER1L-050200Y	79 g	0.174 lb	CB CE FCC UKCA UL	30 mm	3.28 in	69 mm	83.3 mm	1.18 "	2.72 in	Europe	2 A	62368-1	Fixed Blade	264 VAC	90 VAC	Barrel Plug R/A	1.35 mm	9.5 mm	3.5 mm	40 °C	Wall Mount	1.5 m	60.2 in	Level VI	5 V	Positive Center	ITE (Commercial)	75 mW	CEE 7/16	10 W
aimtec AMA12UR4-120100Y	79 g	0.174 lb	CE UL	31 mm	2.65 "	70 mm	67.3 mm	1.22 in	2.76 "	North America	1 A	62368-1	Fixed Blade	264 VAC	90 VAC	Barrel Plug		9.5 mm		40 °C	Wall Mount	1.5 m	60.2 in	Level VI	12 V	Positive Center	ITE (Commercial)	75 mW	NEMA 1-15P	12 W	2.1 mm 5.5 mm
aimtec AMA12ER4-050200Y	79 g	0.174 lb	CE UL	30 mm	3.28 in	69 mm	83.3 mm	1.18 "	2.72 in	Europe	2 A	62368-1	Fixed Blade	264 VAC	90 VAC	Barrel Plug		9.5 mm		40 °C	Wall Mount	1.5 m	60.2 in	Level VI	5 V	Positive Center	ITE (Commercial)	75 mW	CEE 7/16	10 W	2.1 mm 5.5 mm
aimtec AMA12ER5-050200Y	79 g	0.174 lb	CB CE FCC UKCA UL	30 mm	3.28 in	69 mm	83.3 mm	1.18 "	2.72 in	Europe	2 A	62368-1	Fixed Blade	264 VAC	90 VAC	Barrel Plug		9.5 mm		40 °C	Wall Mount	1.5 m	60.2 in	Level VI	5 V	Positive Center	ITE (Commercial)	75 mW	CEE 7/16	10 W	2.5 mm 5.5 mm
aimtec AMA12ER4-120100Y	79 g	0.174 lb	CB CE FCC UKCA UL	30 mm	3.28 in	69 mm	83.3 mm	1.18 "	2.72 in	Europe	1 A	62368-1	Fixed Blade	264 VAC	90 VAC	Barrel Plug		9.5 mm		40 °C	Wall Mount	1.5 m	60.2 in	Level VI	12 V	Positive Center	ITE (Commercial)	75 mW	CEE 7/16	12 W	2.1 mm 5.5 mm
aimtec AMA12EU1-050200Y	79 g	0.174 lb	CB CE FCC UKCA UL	30 mm	3.28 in	69 mm	83.3 mm	1.18 "	2.72 in	Europe	2 A	62368-1	Fixed Blade	264 VAC	90 VAC	USB Micro				40 °C	Wall Mount	1.5 m	60.2 in	Level VI	5 V		ITE (Commercial)	75 mW	CEE 7/16	10 W
aimtec AMA12UR5-050200Y	79 g	0.174 lb	CE EN IEC UL	30 mm	2.65 "	69 mm	67.3 mm	1.18 "	2.72 in	North America	2 A	62368-1	Fixed Blade	264 VAC	90 VAC	Barrel Plug		9.5 mm		40 °C	Wall Mount	1.5 m	59 in	Level VI	5 V	Positive Center	ITE (Commercial)	75 mW	NEMA 1-15P	10 W	2.5 mm 5.5 mm
aimtec AMA12UU1-050200Y	79 g	0.174 lb	CE EN IEC UL	30 mm	2.65 "	69 mm	67.3 mm	1.18 "	2.72 in	North America	2 A	62368-1	Fixed Blade	264 VAC	90 VAC	USB Micro				40 °C	Wall Mount	1.5 m	59 in	Level VI	5 V		ITE (Commercial)	75 mW	NEMA 1-15P	10 W
