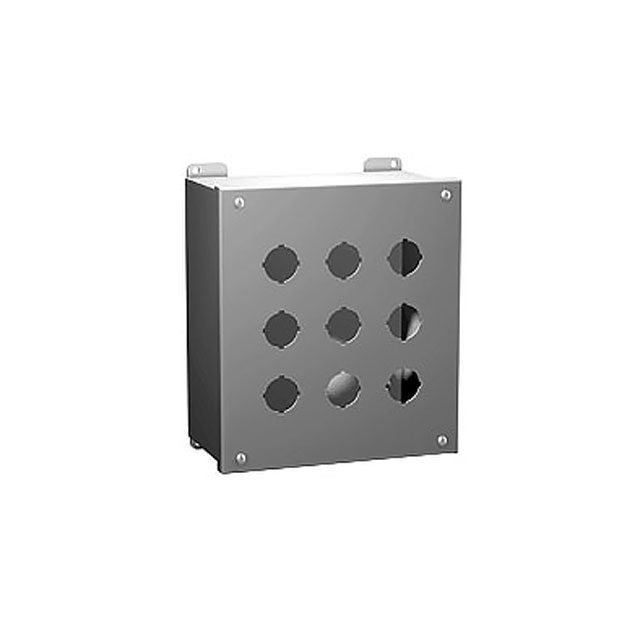

1437 Series

Catalog

BOX STEEL GRAY 10"L X 4"W

Part	Weight [custom]	Weight [custom]	Features	Height	Height	Thickness	Area (L x W)	Area (L x W)	Ratings	Container Type	Material	Color	Design	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Weight	Weight	Size / Dimension [y]	Area (L x W) [custom]	Area (L x W) [custom]
Hammond Manufacturing 1437D	2.3 kg	5 lbs	Pushbutton Holes - 4	4.75 in	120.65 mm	14 Gauge	40 in²	258 cm²	IP54 JIC EGP-1-1967 NEMA 12 NEMA 13 UL-508	Box	Metal Steel	Gray	Hinged Door Lid	4 "	254 mm	101.6 mm	10 in
Hammond Manufacturing 1437SSD	2.3 kg	5 lbs	Pushbutton Holes - 4	4.75 in	120.65 mm	14 Gauge	40 in²	258 cm²	IP66 JIC EGP-1-1967 NEMA 4 4X UL-508	Box	Metal Stainless Steel	Natural	Hinged Door Lid	4 "	254 mm	101.6 mm	10 in
Hammond Manufacturing 1437MX			Pushbutton Holes - 25	4.75 in	120.65 mm	14 Gauge	182 in²	1174 cm²	IP54 JIC EGP-1-1967 NEMA 12 NEMA 13 UL-508	Box	Metal Steel	Gray	Hinged Door Lid	13 "	355.6 mm		14 "	12 lbs	5.4 kg	330.2 mm
Hammond Manufacturing 1437V			Pushbutton Holes - 20	4.75 in	120.65 mm	14 Gauge	151 in²	974 cm²	IP54 JIC EGP-1-1967 NEMA 12 NEMA 13 UL-508	Box	Metal Steel	Gray	Hinged Door Lid	10.75 in	355.6 mm	273.05 mm	14 "	11 lbs	5 kg
Hammond Manufacturing 1437MS	4.1 kg	9 lbs	Pushbutton Holes - 16	4.75 in	120.65 mm	14 Gauge	126 in²	813 cm²	IP54 JIC EGP-1-1967 NEMA 12 NEMA 13 UL-508	Box	Metal Steel	Gray	Hinged Door Lid	10.75 in	298.45 mm		11.75 in			273.05 mm
Hammond Manufacturing 1437SSC	2.3 kg	5 lbs		4.75 in	120.65 mm	14 Gauge			IP66 JIC EGP-1-1967 NEMA 4 4X UL-508	Box	Metal Stainless Steel	Natural	Hinged Door Lid	4 "	203.2 mm		8 in			101.6 mm	206 cm²	32 in²
Hammond Manufacturing 1437B	1.8 kg	4 lbs	Pushbutton Holes - 2	4.75 in	120.65 mm	14 Gauge	24 in²	155 cm²	IP54 JIC EGP-1-1967 NEMA 12 NEMA 13 UL-508	Box	Metal Steel	Gray	Hinged Door Lid	4 "	152.4 mm		6 "			101.6 mm
Hammond Manufacturing 1437S16D	2.3 kg	5 lbs	Pushbutton Holes - 4	4.75 in	120.65 mm	14 Gauge	40 in²	258 cm²	IP66 JIC EGP-1-1967 NEMA 4 4X UL-508	Box	Metal Stainless Steel	Natural	Hinged Door Lid	4 "	254 mm	101.6 mm	10 in
Hammond Manufacturing 1437C	2.3 kg	5 lbs		4.75 in	120.65 mm	14 Gauge			IP54 JIC EGP-1-1967 NEMA 12 NEMA 13 UL-508	Box	Metal Steel	Gray	Hinged Door Lid	4 "	203.2 mm		8 in			101.6 mm	206 cm²	32 in²
Hammond Manufacturing 1437MH	2.3 kg	5 lbs	Pushbutton Holes - 6	4.75 in	120.65 mm	14 Gauge	59.4 in²	383 cm²	IP54 JIC EGP-1-1967 NEMA 12 NEMA 13 UL-508	Box	Metal Steel	Gray	Hinged Door Lid	6.25 in	241.3 mm		9.5 in			158.75 mm
