887-072 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 72POS 0.156

...

Part	Material - Insulation	Termination Rows [custom]	Contact Type	Card Thickness [Max]	Card Thickness [Min]	Number of Rows [custom]	Read Out	Card Type	Flange Feature	Contact Finish Thickness	Contact Finish Thickness	Color	Termination	Mounting Type	Number of Positions/Bay/Row	Contact Material	Contact Finish	Pitch	Pitch	Operating Temperature [Max]	Operating Temperature [Min]	Gender	Number of Positions	Features	Flange Feature [diameter]	Flange Feature [diameter]

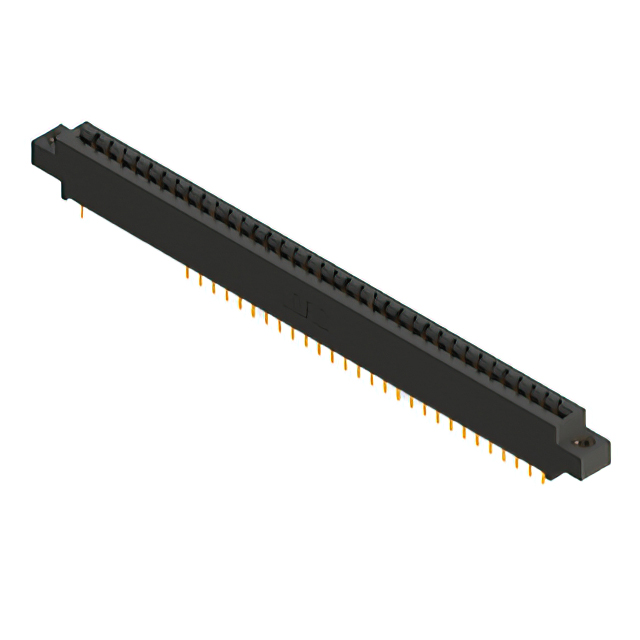

EDAC Inc. 887-072-523-808	Polyphenylene Sulfide (PPS)	2	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Dual	Non Specified - Dual Edge	4-40 Threaded Insert Top Mount Opening	0.25 Ám	10 Áin	Black	Solder	Through Hole	36	Copper Alloy	Gold	3.96 mm	0.156 in	125 °C	-40 C	Female	72
EDAC Inc. 887-072-558-208	Polyphenylene Sulfide (PPS)	2	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Dual	Non Specified - Dual Edge	4-40 Flush Mount Threaded Insert Top Opening	0.25 Ám	10 Áin	Black	Solder	Right Angle Through Hole	36	Copper Alloy	Gold	3.96 mm	0.156 in	125 °C	-40 C	Female	72

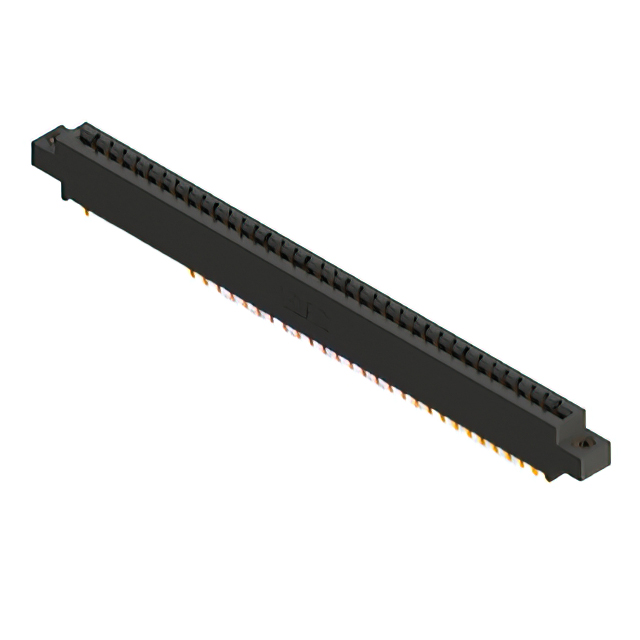

EDAC Inc. 887-072-560-808	Polyphenylene Sulfide (PPS)	2	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Dual	Non Specified - Dual Edge	4-40 Threaded Insert Top Mount Opening	0.25 Ám	10 Áin	Black	Solder	Board Edge Straddle Mount	36	Copper Alloy	Gold	3.96 mm	0.156 in	125 °C	-40 C	Female	72	Card Extender
EDAC Inc. 887-072-542-212	Polyphenylene Sulfide (PPS)	2	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Dual	Non Specified - Dual Edge	Flush Mount Side Opening Unthreaded	0.25 Ám	10 Áin	Black	Wire Wrap	Through Hole	36	Copper Alloy	Gold	3.96 mm	0.156 in	125 °C	-40 C	Female	72		0.128 "	3.25 mm
EDAC Inc. 887-072-559-207	Polyphenylene Sulfide (PPS)	2	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Dual	Non Specified - Dual Edge	Flush Mount M3 Threaded Insert Top Opening	0.25 Ám	10 Áin	Black	Solder	Right Angle Through Hole	36	Copper Alloy	Gold	3.96 mm	0.156 in	125 °C	-40 C	Female	72
EDAC Inc. 887-072-500-807	Polyphenylene Sulfide (PPS)	2	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Dual	Non Specified - Dual Edge	M3 Threaded Insert Top Mount Opening	0.25 Ám	10 Áin	Black	Solder Eyelet(s)	Through Hole	36	Copper Alloy	Gold	3.96 mm	0.156 in	125 °C	-40 C	Female	72
EDAC Inc. 887-072-542-802	Polyphenylene Sulfide (PPS)	2	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Dual	Non Specified - Dual Edge		0.25 Ám	10 Áin	Black	Wire Wrap	Through Hole	36	Copper Alloy	Gold	3.96 mm	0.156 in	125 °C	-40 C	Female	72		0.128 "	3.25 mm
EDAC Inc. 887-072-524-207	Polyphenylene Sulfide (PPS)	2	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Dual	Non Specified - Dual Edge	Flush Mount M3 Threaded Insert Top Opening	0.25 Ám	10 Áin	Black	Solder	Through Hole	36	Copper Alloy	Gold	3.96 mm	0.156 in	125 °C	-40 C	Female	72
EDAC Inc. 887-072-541-802	Polyphenylene Sulfide (PPS)	2	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Dual	Non Specified - Dual Edge		0.25 Ám	10 Áin	Black	Wire Wrap	Through Hole	36	Copper Alloy	Gold	3.96 mm	0.156 in	125 °C	-40 C	Female	72		0.128 "	3.25 mm
EDAC Inc. 887-072-556-212	Polyphenylene Sulfide (PPS)	2	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Dual	Non Specified - Dual Edge	Flush Mount Side Opening Unthreaded	0.25 Ám	10 Áin	Black	Solder	Board Edge Straddle Mount	36	Copper Alloy	Gold	3.96 mm	0.156 in	125 °C	-40 C	Female	72	Card Extender	0.128 "	3.25 mm
