MIC2790 Series

Supervisor with High-Accuracy, Ultra-Fast Propagation Delay and Capacitor-Programmable Reset Delay

Catalog

Supervisor with High-Accuracy, Ultra-Fast Propagation Delay and Capacitor-Programmable Reset Delay

Part	Reset Timeout	Mounting Type	Package / Case	Number of Voltages Monitored	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Threshold	Supplier Device Package	Type	Reset	Output
Microchip Technology MIC2790H-04VD6-TR	Adjustable/Selectable	Surface Mount	SOT-23-6 Thin TSOT-23-6	1	-40 °C	125 ¯C	0.4 V	TSOT-23-6	Simple Reset/Power-On Reset	Active High	Push-Pull Totem Pole

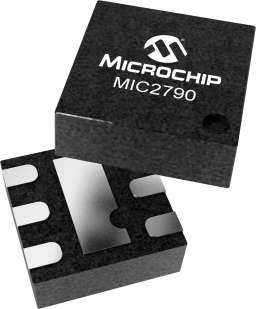

Microchip Technology MIC2790N-04VMT-T5	Adjustable/Selectable	Surface Mount	6-UFDFN Exposed Pad	1	-40 °C	125 ¯C	0.4 V	6-TDFN (2x2)	Simple Reset/Power-On Reset	Active Low	Open Drain or Open Collector
Microchip Technology MIC2790L-04VD6-T5	Adjustable/Selectable	Surface Mount	SOT-23-6 Thin TSOT-23-6	1	-40 °C	125 ¯C	0.4 V	TSOT-23-6	Simple Reset/Power-On Reset	Active Low	Push-Pull Totem Pole
Microchip Technology MIC2790N-04VD6-T5	Adjustable/Selectable	Surface Mount	SOT-23-6 Thin TSOT-23-6	1	-40 °C	125 ¯C	0.4 V	TSOT-23-6	Simple Reset/Power-On Reset	Active Low	Open Drain or Open Collector
Microchip Technology MIC2790L-04VD6-TR	Adjustable/Selectable	Surface Mount	SOT-23-6 Thin TSOT-23-6	1	-40 °C	125 ¯C	0.4 V	TSOT-23-6	Simple Reset/Power-On Reset	Active Low	Push-Pull Totem Pole

Catalog

Supervisor with High-Accuracy, Ultra-Fast Propagation Delay and Capacitor-Programmable Reset Delay

Key Features

• * 1.5V to 5.5V operating supply voltage range

• * Ultra-fast propagation delay (1µs typically)

• * ±1.0% threshold accuracy from −40°C to +125°C

• * Monitored voltage range from 0.4V to 5.5V

• * Programmable reset timeout delay (from 1ms to 10s)

• * Manual reset input with an internal pull-up resistor

• * Active-high enable input pin (MIC2793 only)

• * The MIC2790/1/3 features multiple output options:

• * Open-drain active-low (/RESET)

• * Push-pull active-low (/RESET)

• * Push-pull active-high (RESET)

• * -40°C to +125°C junction temperature range

• * 6-pin TSOT-23 (MIC2790)

• * 6-pin 2mm × 2mm Thin DFN (MIC2790)

• * 6-pin 1.6mm × 1.6mm Thin DFN (MIC2791)

• * 8-pin 2mm × 2mm Thin DFN (MIC2793)

Description

The MIC2790/1/3 is ideal for monitoring highly-accurate core voltages that require rapid response in the event of a fault condition. The voltage supervisor IC features a manual reset input, enable input (MIC2793 only), a capacitor-programmable reset timeout delay and both an active-low and active-high reset output. The MIC2790/1/3 monitors system voltages that are in the range of 0.4V to 5.5V, with a typical sense accuracy of 0.5% at +25°C and ±1.0% across −40°C to +125°C. The IC asserts a reset output when the sense voltage drops below the threshold or when the manual reset is pulled to a logic low. The active-low reset stays low for the duration of the reset timeout delay once the sense voltage returns to normal and the manual reset transitions to a logic high state. The reset timeout delay period is programmable from 1ms to 10s with an external capacitor. The MIC2790/1/3 operates from a low supply voltage of 1.5V to 5.5V, and is rated to operate over the temperature range of −40°C to +125°C. The MIC2790 is available in a 6-pin TSOT-23 package or a 6-pin 2mm × 2mm × 0.55mm DFN package. The MIC2791 is available in a tiny 6-pin 1.6mm × 1.6mm × 0.55mm DFN package. The MIC2793 is available in a 8-pin 2mm × 2mm × 0.55mm DFN package.
