FFC & FPC Connectors CONN FFC 24POS 0.35MM SMD
FFC & FPC Connectors CONN FFC 24POS 0.35MM SMD
| Part | Current Rating (Amps) | Housing Color | Mating Cycles | Height Above Board [z] | Height Above Board [z] | Actuator Color | Voltage Rating | Termination | Material Flammability Rating | Housing Material | Contact Material | Cable End Type | Mounting Type | Flat Flex Type | Connector/Contact Type | Contact Finish | Features | Operating Temperature [Min] | Operating Temperature [Max] | FFC, FCB Thickness [custom] | Number of Positions | Actuator Material | Pitch | Pitch | Locking Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | 400 mA | Black | 20 | 0.035 in | 0.88 mm 0.9 mm | Black | 30 VDC | Solder | UL94 V-0 | Liquid Crystal Polymer (LCP) | Phosphor Bronze | Notched | Right Angle Surface Mount | FPC | Contacts Bottom | Gold | Solder Retention Zero Insertion Force (ZIF) | -55 C | 85 °C | 0.2 mm | 22 | Liquid Crystal Polymer (LCP) | 0.014 in | 0.35 mm | Backlock Flip Lock |
Hirose Electric Co Ltd | 400 mA | Black | 20 | 0.035 in | 0.88 mm 0.9 mm | Black | 30 VDC | Solder | UL94 V-0 | Liquid Crystal Polymer (LCP) | Phosphor Bronze | Notched | Right Angle Surface Mount | FPC | Contacts Bottom | Gold | Solder Retention Zero Insertion Force (ZIF) | -55 C | 85 °C | 0.2 mm | 16 | Liquid Crystal Polymer (LCP) | 0.014 in | 0.35 mm | Backlock Flip Lock |

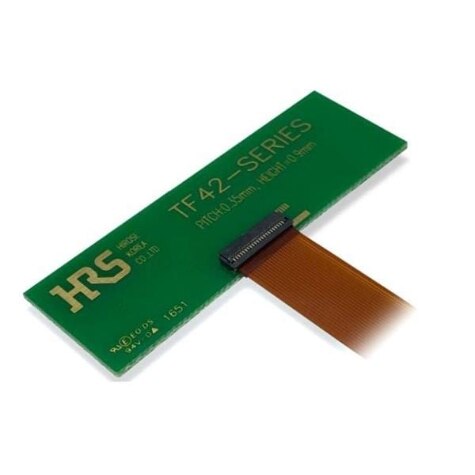

 Hirose Electric Co Ltd | 400 mA | Black | 20 | 0.035 in | 0.88 mm | Black | 30 VDC | Solder | UL94 V-0 | Liquid Crystal Polymer (LCP) | Phosphor Bronze | Notched | Right Angle Surface Mount | FPC | Contacts Bottom | Gold | Solder Retention Zero Insertion Force (ZIF) | -55 C | 85 °C | 0.2 mm | 24 | Liquid Crystal Polymer (LCP) | 0.014 in | 0.35 mm | Backlock Flip Lock |
