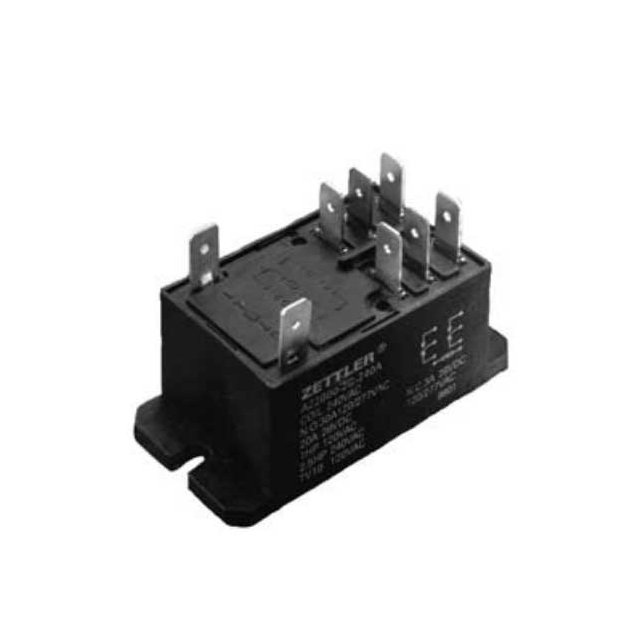

AZ2800-2A Series
Manufacturer: American Zettler
Beta
⌘K
RELAY GEN PURPOSE DPST 40A 240V
| Part | Coil Resistance | Switching Voltage [Max] | Coil Type | Load - Max Switching | Coil Insulation | Must Operate Voltage | Termination Style | Contact Form | Contact Material | Contact Rating (Current) | Release Time | Mounting Type | Relay Type | Operate Time | Approval Agency | Coil Current | Must Release Voltage | Operating Temperature [Min] | Operating Temperature [Max] | Coil Voltage | Seal Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 American Zettler | 3.8 kOhms | 30 VDC 600 VAC | Non Latching | 1200 W 11080 VA | Class F | 192 VAC | Quick Connect - 0.250" (6.3mm) | DPST-NO (2 Form A) | Silver Cadmium Oxide (AgCdO) | 40 A | 25 ms | Chassis Mount | General Purpose | 25 ms | cUR UL VDE | 16.7 mA | 48 VAC | -40 C | 65 °C | 240 VAC/DC | |
American Zettler | 22 Ohms | 30 VDC 600 VAC | Non Latching | 1200 W 11080 VA | Class F | 4.5 VDC | Quick Connect - 0.250" (6.3mm) | DPST-NO (2 Form A) | Silver Cadmium Oxide (AgCdO) | 40 A | 25 ms | Chassis Mount | General Purpose | 25 ms | cUR UL VDE | 272 mA | 0.6 VDC | -40 C | 85 °C | ||
American Zettler | 3.8 kOhms | 30 VDC 600 VAC | Non Latching | 1200 W 11080 VA | Class F | 192 VAC | Quick Connect - 0.250" (6.3mm) | DPST-NO (2 Form A) | Silver Cadmium Oxide (AgCdO) | 40 A | 25 ms | Chassis Mount | General Purpose | 25 ms | cUR UL VDE | 16.7 mA | 48 VAC | -40 C | 65 °C | 240 VAC/DC | Sealed - Fully |
 American Zettler | 35.7 Ohms | 30 VDC 600 VAC | Non Latching | 1200 W 11080 VA | Class F | 19.2 VAC | Quick Connect - 0.250" (6.3mm) | DPST-NO (2 Form A) | Silver Tin Oxide (AgSnO) | 40 A | 25 ms | Chassis Mount | General Purpose | 25 ms | cUR UL VDE | 166 mA | 4.8 VAC | -40 C | 65 °C | 24 VAC | |
 American Zettler | 350 Ohms | 30 VDC 600 VAC | Non Latching | 1200 W 11080 VA | Class F | 18 VDC | Quick Connect - 0.250" (6.3mm) | DPST-NO (2 Form A) | Silver Cadmium Oxide (AgCdO) | 40 A | 25 ms | Chassis Mount | General Purpose | 25 ms | cUR UL VDE | 68.5 mA | 2.4 VDC | -40 C | 85 °C | 24 VDC | Sealed - Fully |
 American Zettler | 4700 Ohms | 30 VDC 600 VAC | Non Latching | 1200 W 11080 VA | Class F | 221.6 VAC | Quick Connect - 0.250" (6.3mm) | DPST-NO (2 Form A) | Silver Cadmium Oxide (AgCdO) | 40 A | 25 ms | Chassis Mount | General Purpose | 25 ms | cUR UL VDE | 14.4 mA | 55.4 VAC | -40 C | 65 °C | 277 VAC | |
American Zettler | 1.125 kOhms | 30 VDC 600 VAC | Non Latching | 1200 W 11080 VA | Class F | 96 VAC | Quick Connect - 0.250" (6.3mm) | DPST-NO (2 Form A) | Silver Cadmium Oxide (AgCdO) | 40 A | 25 ms | Chassis Mount | General Purpose | 25 ms | cUR UL VDE | 33.3 mA | 24 VAC | -40 C | 65 °C | 120 VAC | Sealed - Fully |
American Zettler | 86 Ohms | 30 VDC 600 VAC | Non Latching | 1200 W 11080 VA | Class F | 9 VDC | Quick Connect - 0.250" (6.3mm) | DPST-NO (2 Form A) | Silver Cadmium Oxide (AgCdO) | 40 A | 25 ms | Chassis Mount | General Purpose | 25 ms | cUR UL VDE | 140 mA | 1.2 VDC | -40 C | 85 °C | 12 VDC | Sealed - Fully |
 American Zettler | 30 VDC 600 VAC | Non Latching | 1200 W 11080 VA | Class F | Quick Connect - 0.250" (6.3mm) | DPST-NO (2 Form A) | Silver Cadmium Oxide (AgCdO) | 40 A | 25 ms | Chassis Mount | General Purpose | 25 ms | cUR UL VDE | 3.6 VDC | -40 C | 85 °C | 36 VDC | ||||
American Zettler | 4.5 kOhms | 30 VDC 600 VAC | Non Latching | 1200 W 11080 VA | Class F | 192 VAC | Quick Connect - 0.250" (6.3mm) | DPST-NO (2 Form A) | Silver Cadmium Oxide (AgCdO) | 40 A | 25 ms | Chassis Mount | General Purpose | 25 ms | cUR UL VDE | 16.7 mA | 48 VAC | -40 C | 65 °C | 240 VAC/DC | Sealed - Fully |
