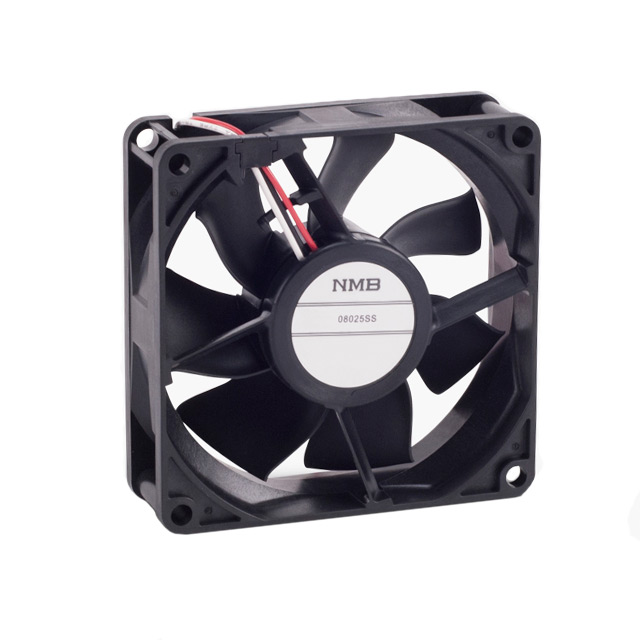

08025SS Series

Catalog

DC AXIAL FAN, 24 V, SQUARE, 80 MM, 25 MM, SLEEVE BEARING, 54.74 CFM

Part	Current Rating (Amps)	Voltage Range [Min]	Voltage Range [Max]	Material - Blade	Lifetime @ Temp.	Material - Frame	Air Flow	Air Flow	Noise	Features	Static Pressure	Static Pressure	Size / Dimension [z]	Size / Dimension [x]	RPM	Power (Watts)	Voltage - Rated	Fan Type	Operating Temperature [Min]	Operating Temperature [Max]	Bearing Type	Width [y]	Termination
NMB TECHNOLOGIES 08025SS-24Q-AT-D0	0.21 A	10 VDC	26.4 VDC	Plastic	40 °C 50000 Hrs	Plastic	1.53 mł/min	54.7 CFM	39.5 dB	Auto Restart Speed Sensor (Tach)	0.27 in H2O	67.3 Pa	80 mm	80 mm	4100 RPM	5.04 W	24 VDC	Tubeaxial	-10 °C	60 °C	Sleeve	25 mm	3 Wire Leads
NMB TECHNOLOGIES 08025SS-24Q-ET-D0							1.55 m³/min	55.3 CFM	39.5 dB	Auto Restart Speed Sensor (Tach)	0.273 in H2O	68 Pa	80 mm	80 mm	4100 RPM	5.04 W	24 VDC	Tubeaxial	-10 °C	60 °C	Sleeve	25 mm	3 Wire Leads
NMB TECHNOLOGIES 08025SS-24M-EA-D0							1.02 m³/min	36.3 CFM	26 dB	Auto Restart	0.116 in H2O	29 Pa	80 mm	80 mm	2700 RPM	1.68 W	24 VDC	Tubeaxial	-10 °C	70 °C	Sleeve	25 mm	2 Wire Leads
NMB TECHNOLOGIES 08025SS-24Q-AL-D0	0.21 A	10 VDC	26.4 VDC	Plastic	40 °C 50000 Hrs	Plastic	1.55 m³/min	55.3 CFM	39.5 dB	Auto Restart Locked Rotor Sensor	0.273 in H2O	68 Pa	80 mm	80 mm	4100 RPM	5.04 W	24 VDC	Tubeaxial	-10 °C	60 °C	Sleeve	25 mm	3 Wire Leads
NMB TECHNOLOGIES 08025SS-24M-EA-D0	70 mA	10 VDC	27.6 VDC	Plastic	40 °C 50000 Hrs	Plastic	1.02 m³/min	36.3 CFM	26 dB	Auto Restart	0.116 in H2O	29 Pa	80 mm	80 mm	2700 RPM	1.68 W	24 VDC	Tubeaxial	-10 °C	70 °C	Sleeve	25 mm	2 Wire Leads
NMB TECHNOLOGIES 08025SS-24Q-AL-D0							1.55 m³/min	55.3 CFM	39.5 dB	Auto Restart Locked Rotor Sensor	0.273 in H2O	68 Pa	80 mm	80 mm	4100 RPM	5.04 W	24 VDC	Tubeaxial	-10 °C	60 °C	Sleeve	25 mm	3 Wire Leads
NMB TECHNOLOGIES 08025SS-24Q-ET-D0	0.21 A	10 VDC	26.4 VDC	Plastic	40 °C 50000 Hrs	Plastic	1.55 m³/min	55.3 CFM	39.5 dB	Auto Restart Speed Sensor (Tach)	0.273 in H2O	68 Pa	80 mm	80 mm	4100 RPM	5.04 W	24 VDC	Tubeaxial	-10 °C	60 °C	Sleeve	25 mm	3 Wire Leads
