DF56 Series

Catalog

CONN PLUG 30POS SOLDER 42-46AWG

Part	Fastening Type	Number of Rows	Number of Positions	Connector Type	Wire Type	Wire Gauge [Max]	Wire Gauge [Min]	Color	Contact Type	Pitch	Pitch	Cable Termination	Mounting Type	Contact Finish	Accessory Type	For Use With/Related Products	Contact Shape	Contact Material	Insulation Material	Termination	Contact Length - Post	Contact Length - Post	Style	Material Flammability Rating	Contact Finish - Post	Insulation Color	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Number of Positions Loaded	Voltage Rating

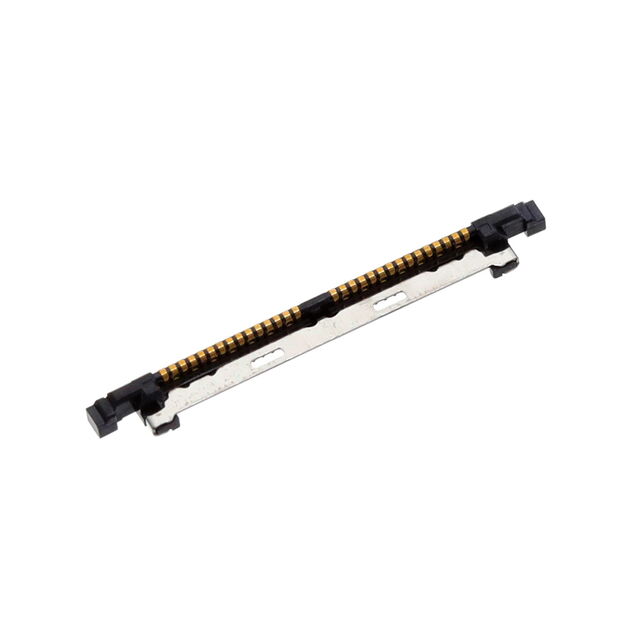

Hirose Electric Co Ltd DF56-30P-0.3SD(51)	Detent Lock	1	30	Plug	Ribbon Cable	-1 AWG	-2 AWG	Black	Non-Gender Specific	0.012 in	0.3 mm	Solder	Free Hanging (In-Line)	Gold
Hirose Electric Co Ltd DF56-26P-SHL			26												Cap (Cover)	DF56 Series
Hirose Electric Co Ltd DF56-50S-0.3V(53)	Friction Lock	1	50	Receptacle					Non-Gendered				Surface Mount				Square	Phosphor Bronze	Liquid Crystal Polymer (LCP)	Solder	0.024 in	0.6 mm	Board to Cable/Wire	UL94 V-0	Tin	Black	Varies by Wire Gauge	-55 C	85 °C	0.012 in	0.3 mm	Gold	All	30 VAC
Hirose Electric Co Ltd DF56-40P-SHL			40												Cap (Cover)	DF56 Series
Hirose Electric Co Ltd DF56-40P-0.3SD(51)	Detent Lock	1	40	Plug	Ribbon Cable	-1 AWG	-2 AWG	Black	Non-Gender Specific	0.012 in	0.3 mm	Solder	Free Hanging (In-Line)	Gold

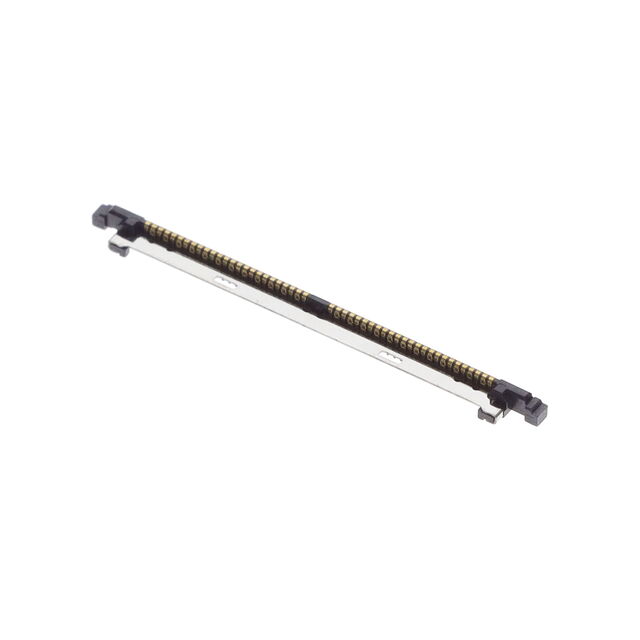

Hirose Electric Co Ltd DF56-50P-0.3SD(51)	Detent Lock	1	50	Plug	Ribbon Cable	-1 AWG	-2 AWG	Black	Non-Gender Specific	0.012 in	0.3 mm	Solder	Free Hanging (In-Line)	Gold
Hirose Electric Co Ltd DF56-30P-SHL			30												Cap (Cover)	DF56 Series
